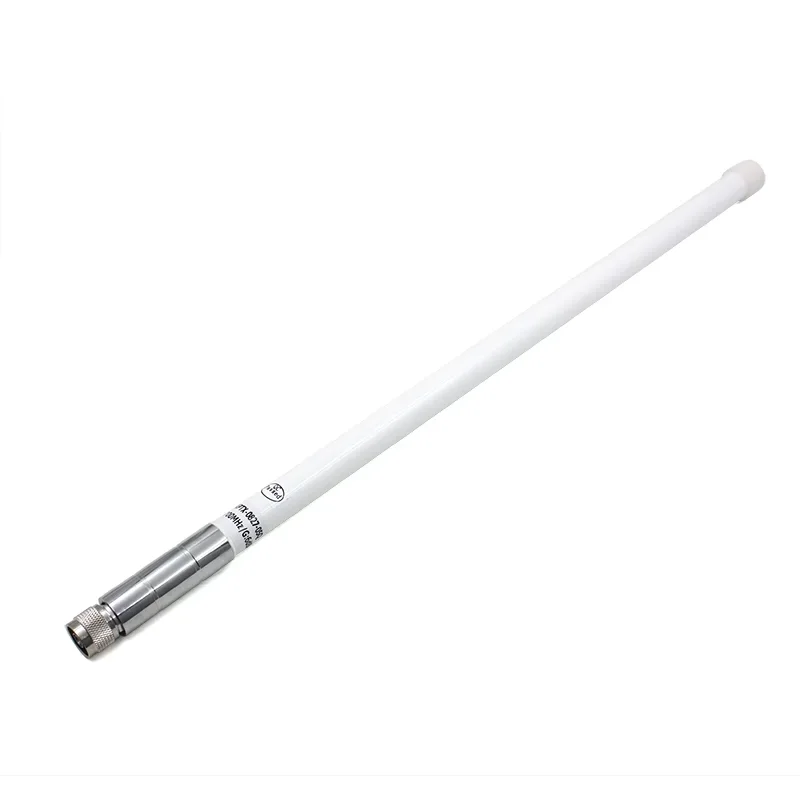

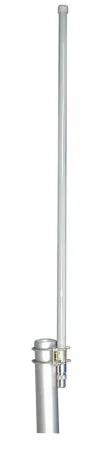

YW-QB24V15A 2400～2483MHz 15dBi Vertical Polarization Fiberglass Antenna |
|||
Technical Specifications |
QB24V15A |
||
Frequency Range (MHz) |
2400～2483 |
5150～5850 |
|
Bandwidth (MHz) |
83 |
700 |
|
Polarization |
Vertical |
||
Gain (dBi) |
15 |
10 |
|
Input Impedance (Ω) |
50 |
11 |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
||
Maximum Power (W) |
50 |
||
Connector Type |
N Female |
||
Antenna Length (cm) |
157 |
||
Antenna Weight (kg) |
1.5 |
||
Cover Material |
Fiberglass (Gray) |
||
Ultimate Wind Speed (m/s) |
60 |
||

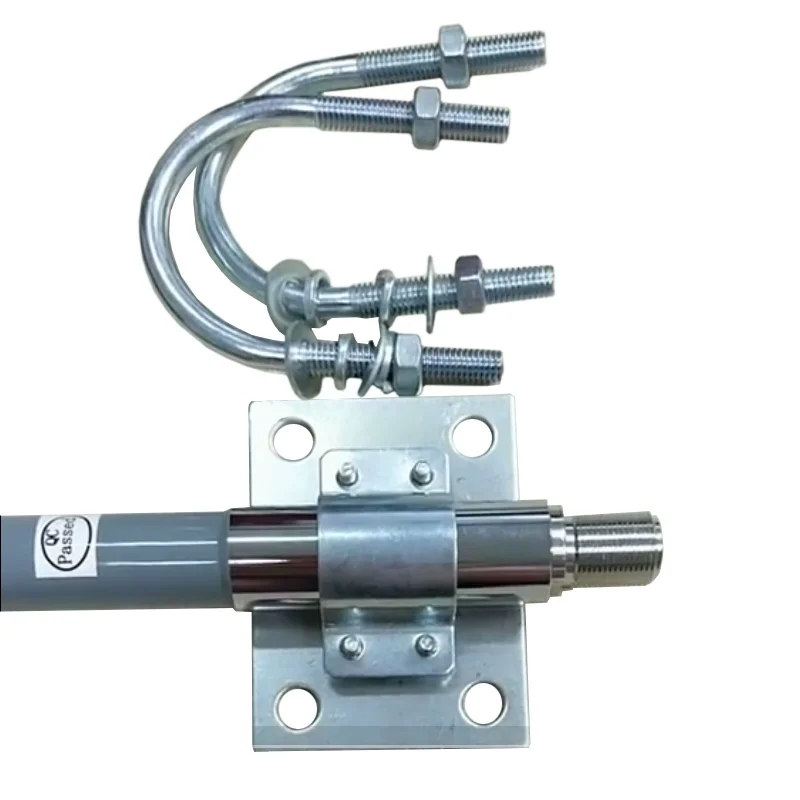

Mast Diameter (mm) |
30~50 |
||
