Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch for Warehouse IoT Sensors

Introducing, the Yoongwin Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch, the perfect solution for connecting IoT sensors in your warehouse. This high-quality switch offers reliable and efficient communication between your devices, ensuring seamless data transmission for your business operations.

With twelve ports available, this switch allows you to effortlessly connect multiple IoT sensors, cameras, and other devices throughout your warehouse. The fast Layer 2 technology guarantees high-speed data transfers, enabling real-time monitoring and control of your inventory and equipment.

Designed specifically for industrial use, the Yoongwin Ethernet Switch is built to withstand harsh environments and heavy-duty usage. Its rugged construction ensures long-lasting performance, making it the ideal choice for warehouses with demanding conditions.

Not only is the Yoongwin Ethernet Switch durable, but it is also incredibly cost-effective. With its affordable price point, you can easily expand your network infrastructure without breaking the bank. This switch offers exceptional value for money, allowing you to maximize your investment and improve the efficiency of your warehouse operations.

Managing and configuring your network is a breeze with the Yoongwin Ethernet Switch. Its advanced management capabilities enable you to customize settings, prioritize traffic, and monitor performance with ease. You can rest assured that your data is secure and your network is running smoothly at all times.

In addition, the Yoongwin Ethernet Switch is designed for easy installation and maintenance. Its plug-and-play functionality allows for hassle-free setup, while its intuitive interface simplifies network management tasks. You can get your warehouse up and running in no time with this user-friendly switch.

Upgrade your warehouse network with the Yoongwin Cost-Effective 12-Port Fast Layer 2 Managed Industrial Ethernet Switch and experience reliable connectivity and optimized performance for your IoT sensors. Trust Yoongwin for a quality product that delivers superior results at an affordable price

Product Description

Product Detail

Introduction

We provides industry users with a series of industrial switch products that meet strict environmental requirements and high reliability. The entire series of products meet industrial level 4 electromagnetic compatibility and anti-interference
requirements. The sturdy structure and compact size facilitate on-site installation. The product is widely used in industries such as power substations and distribution network automation, wind and solar power generation systems, rail transit, intelligent manufacturing, highways, petroleum and petrochemical, etc. It is the preferred brand for high-performance and highly reliable industrial switches

Features

Supports STP/RSTP/MSTP and ERPS, with a minimum recovery time of<50 milliseconds="">Support HTTPS/SSH to enhance network management security
Support IP based bandwidth management
Support Application Based Quality of Service - QoS
Support IGMP v2/v3 (IGMP snooping) multicast management
Port Trunk facilitates bandwidth management
Support network management for SNMP v1/v2c/v3 security

100/1000Base-T sports	8
1000Base-FX SFP sports	4
Standard	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX和100Base-FX IEEE 802.3z 1000Base-X IEEE 802.3ab: 1000Base-TX IEEE 802.3x: Flow Control IEEE 802.3ad: LACP - Port Aggregation Control Protocol IEEE 802.1D: STP - Spanning Tree Protocol IEEE 802.1p: COS - Service Level IEEE 802.1Q: VLAN Tag IEEE 802.1W: RSTP - Fast Spanning Tree Protocol IEEE 802.1s: MSTP - Multi Generative Tree Protocol IEEE 802.1X: Security Authentication IEEE 802.1AB: LLDP - Link Layer Discovery Protocol
Signal processing method	Store and forward
Switch Properties	MAC address table：8192 Priority queues：4 Packet Buffer Size：4Mbits Max. Number of VLANs: 64 VLAN ID Range: 1~4096 IGMP groups: 1024
Security	Open/close ports, MAC based port security mechanism Port based network connection control - 802.1x Isolation through VLAN (802.1Q) network Radius Security Authentication SNMP V1/V2c/V3 encryption verification and access control Broadcast storm protection
Software Features	STP/RSTP/MSTP - IEEE 802.1D/W/s ERPS: Typical recovery time<30ms Support TOS/Diffserv QoS (802.1p) traffic priority management VLAN (802.1Q) with VLAN tagging and GVRP IGMP v2/v3 (IGMP snooping) multicast management Port status and information traffic statistics monitoring SNTP 1588 PTP Client time synchronization（Software based） DHCP Server/Client Port Trunk MVR (VLAN Multicast)
Redundancy Protocols	ERPS V-RSTP STP RSTP MSTP
Alarm/Monitoring System	Fault alarm through relay output Record and browse events through system logs/server/client Support SMTP to send event warning notifications via email Support system log event filtering
Console Port	Micro-USB 2.0 B-type connector，115200bps，8，N，1
Fault output
Relay	1A@24VDC
Operating Voltage
DC input	Dual DC input, 9-57VDC, 8-pin screw crimping terminal
Consumption	<10w<>

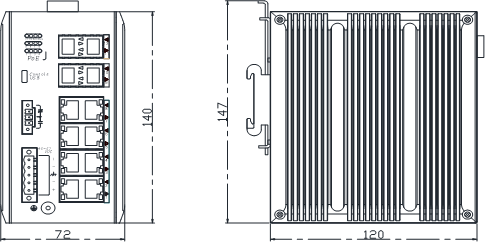

Product Dimension

Applications

Highway Electromechanical System Architecture

The electromechanical systems in expressways primarily consist of toll collection, surveillance, and communication subsystems. As the foundational infrastructure, the communication system interconnects all subsystems, serving as the core for service delivery and information-based operations.The expressway's full-network communication adopts a fiber-optic ring network as its backbone, structured around Layer 3 Gigabit Industrial Ethernet Switches supporting fiber-optic ring topology.At each site access point, Layer 2 (or Layer 3) switches establish dedicated subnets for various services. These application subnets are segmented using Virtual Local Area Networks (VLANs) to meet distinct operational requirements.

Industrial Switches for Oil & Gas Field Intelligence
Industrial Ethernet switches enable intelligent monitoring and management of oil/gas fields, enhancing production efficiency and operational safety. These switches withstand extreme field environments—including low/high temperatures, high altitude, humidity, and EMI—while delivering high-reliability, high-performance, stable, and secure network communications.
