Electrical Specifications |
DB2458C - 65D12A |
DB2458C - 65D12A |
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
Polarization |
±45° |
±45° |
Gain (dBi) |
11.5 |
14.5 |
Electrical Downtilt (°) |
0 |
0 |
Half Power Beamwidth (°) |
Horizontal: 65 |
Horizontal: 65 |
Vertical: 30 |
Vertical: 12 |
|
Port Isolation (dB) |
≥20 |
≥20 |
Front - to - Back Ratio (dB) |
≥20 |
≥20 |
Input Impedance (Ω) |
50 |
50 |
VSWR |
≤1.5 |
≤2 |
Maximum Power (W) |
50 |
50 |
Lightning Protection |
DC Ground |
DC Ground |
Mechanical & Environmental Specifications |
||

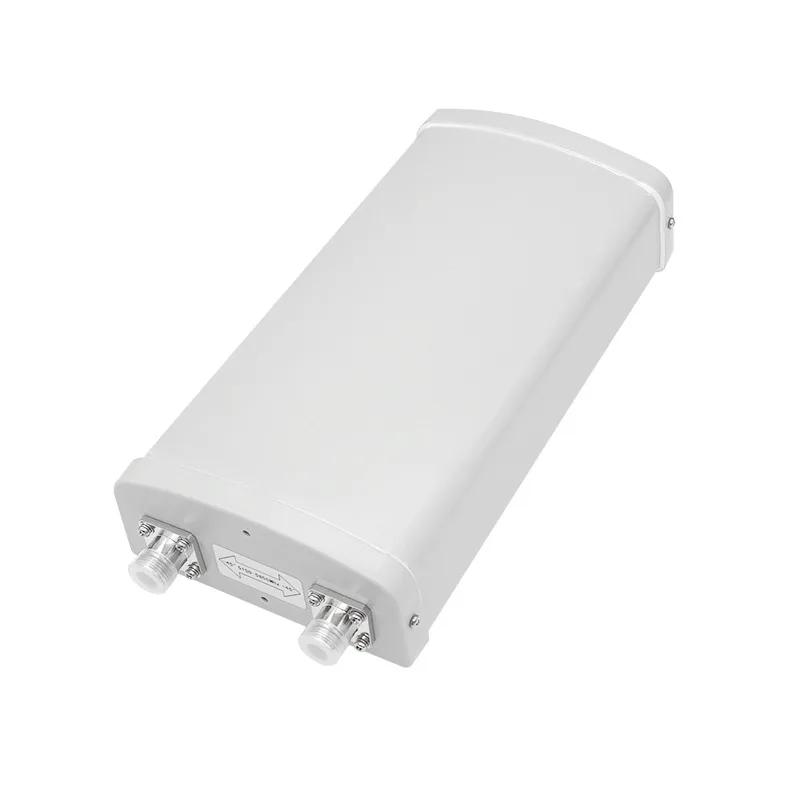

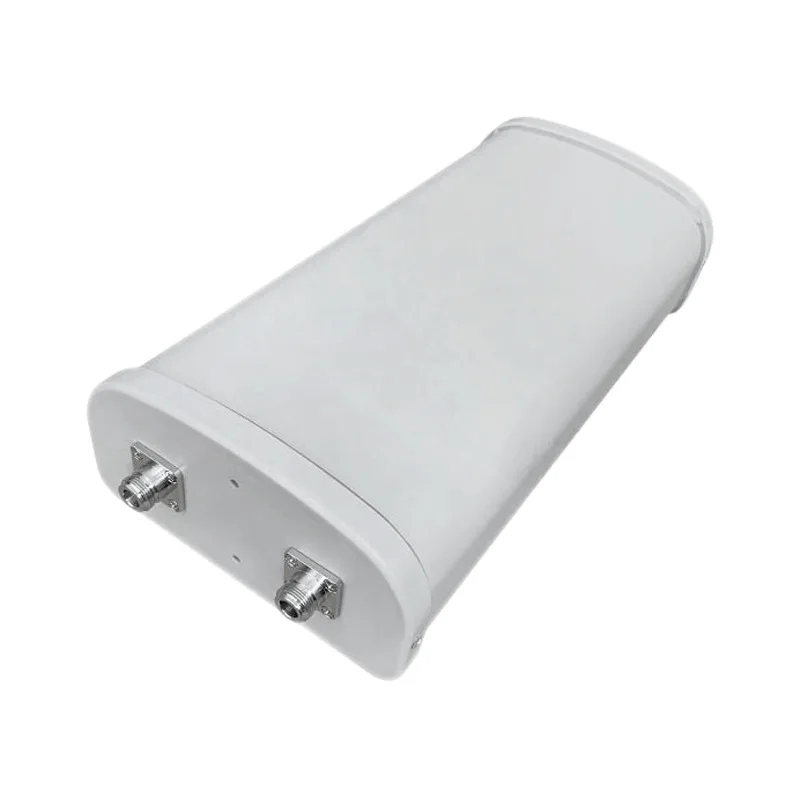

Connector Type |
2×N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
250×167×55 |
|
Packaging Dimensions (mm) |
295×180×125 |
|
Antenna Weight (kg) |
Approx. 1.3 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Tilt (°) |
0～30 |
|
Operating Temperature (℃) |
-40～60 |
|
Extreme Wind Speed (m/s) |
60 |
|
Pole Diameter (mm) |
35～75 |
|
Mounting Bracket Model |
MK003 |
|
