Global Frequency Bands Multi-Carrier Switching SIM Card Supported Global Version MiFi 10000mAh Battery

TM22G + SV6158-M

2Gb

512Mb

None

1 Type-C interface

* Supports rated input: 5V/3A, 9V/2A, 12V/1.5A, with a maximum support of 18W
* Supports rated output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2.22A, 12V/1.67A, with a maximum support of 22.5W

1 Lightning interface

* Supports rated input: 5V/2A, with a maximum support of 10W

1 Reset button

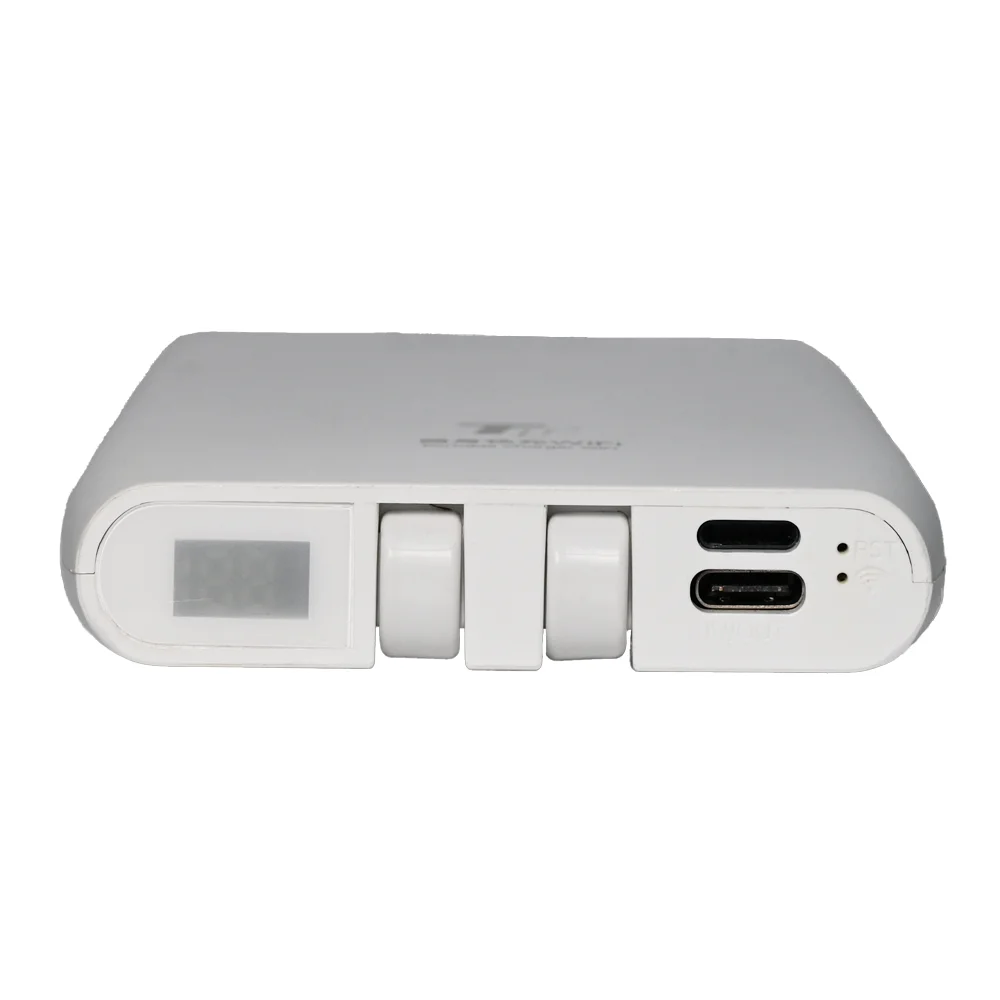

 1. A 3-digit nixie tube indicates the power level

* During charging, the last digit blinks once per second to indicate charging in progress
* When the adapter charges the TT-200 and the TT-200 discharges to the mobile phone, the nixie tube displays automatically for 10
seconds and then turns off automatically
* If the power is lower than 10%, it will blink for 10 seconds and then turn off

2. 1 bicolor signal light indicates the cellular status

* Cellular not activated: off
* Cellular activating: green light blinks every 200ms
* Cellular activated and able to access the internet: green light stays on
* Cellular activated but unable to access the internet: orange light stays on

Built-in professional Wi-Fi and 4G antennas

0~40°C, 10%～90% non-condensing

-40~70°C, 5%～95% non-condensing

Dimensions

160*75*20 mm

259g

10000mAh

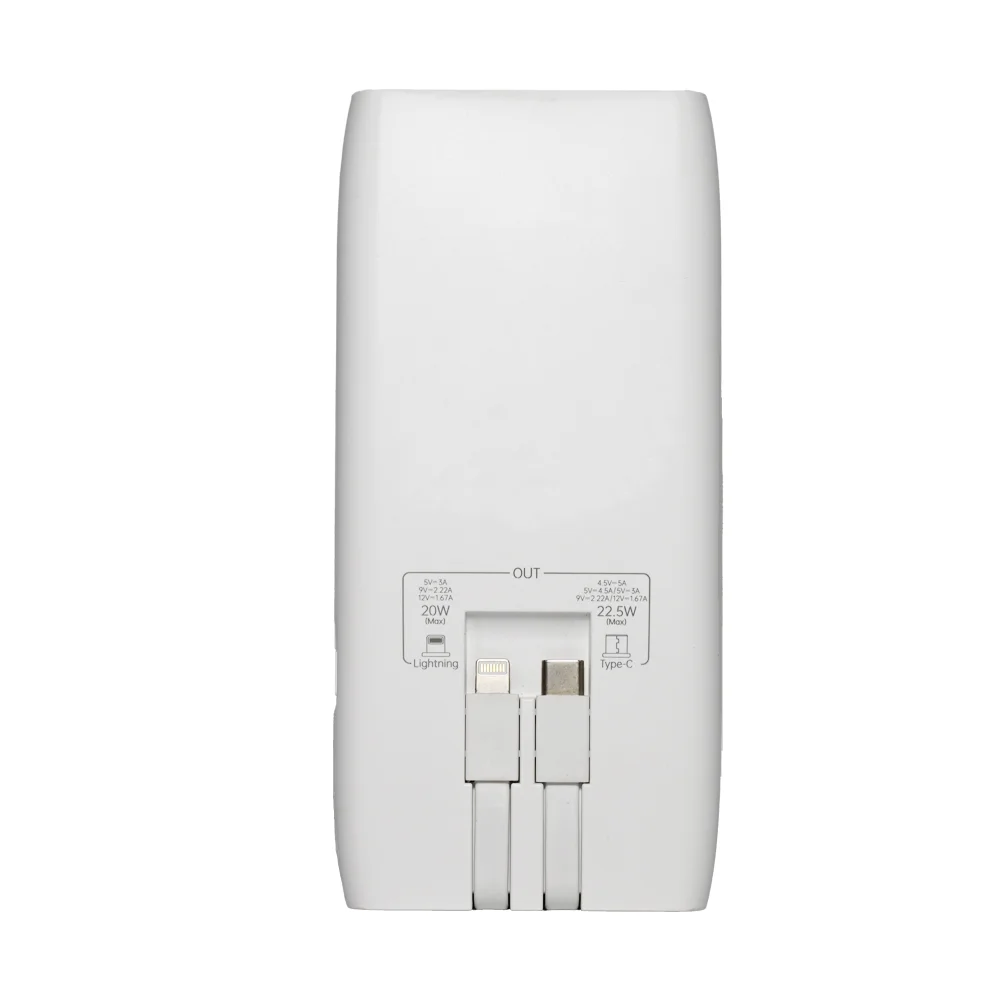

Type-C built-in cable

* 4.5V/5A, 5V-4.5A, 5V/3A, 9V/2.22A, 12V/1.67A, maximum support 22.5W

Lightning built-in cable

* 5V/3A, 9V/2.22A, 12V/1.67A, maximum support 20W

Total Output

* Type-C interface + Type-C cable + Lightning cable = 5V/3A
