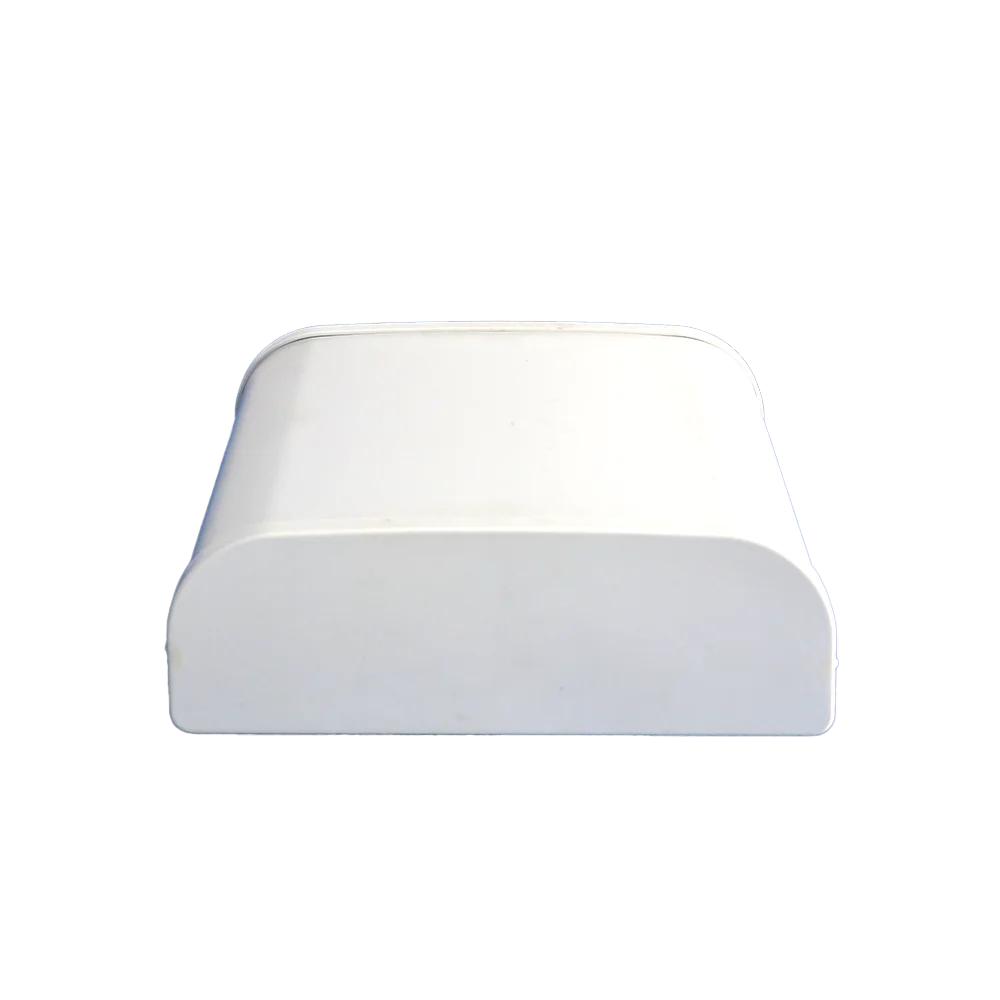

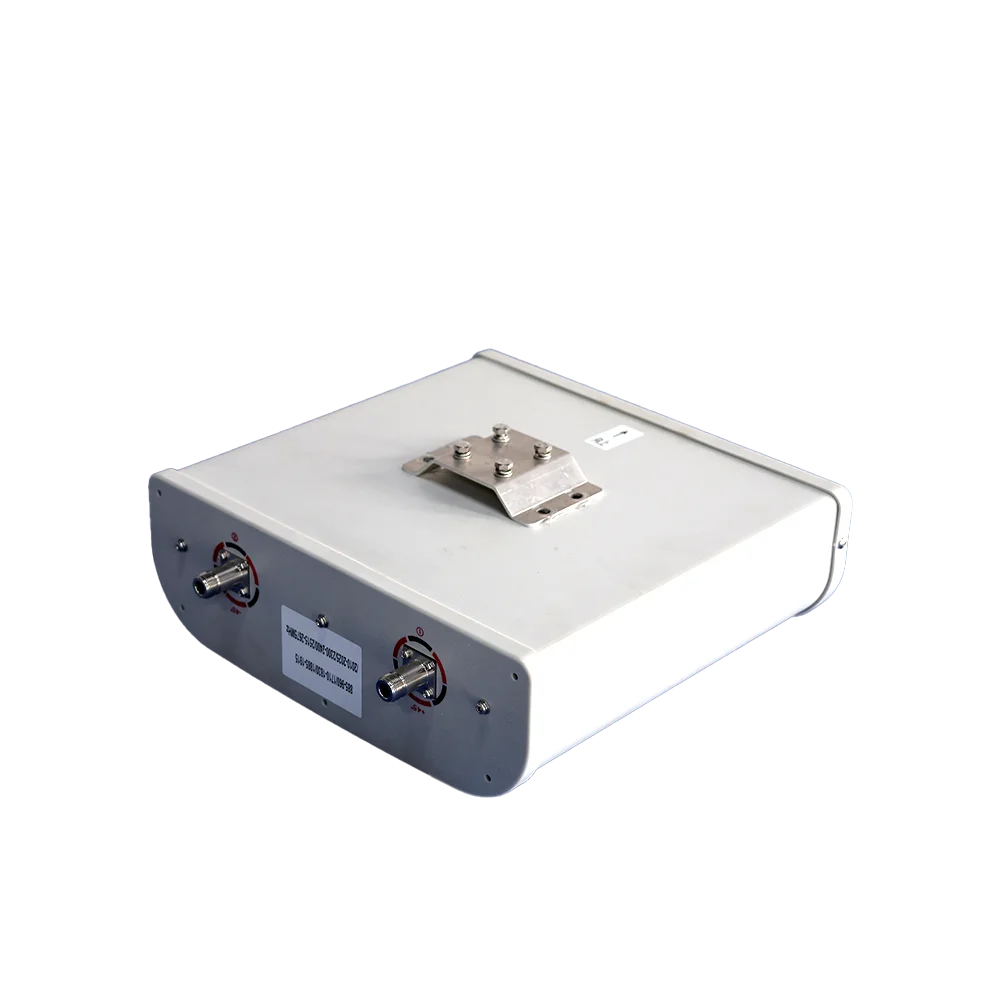

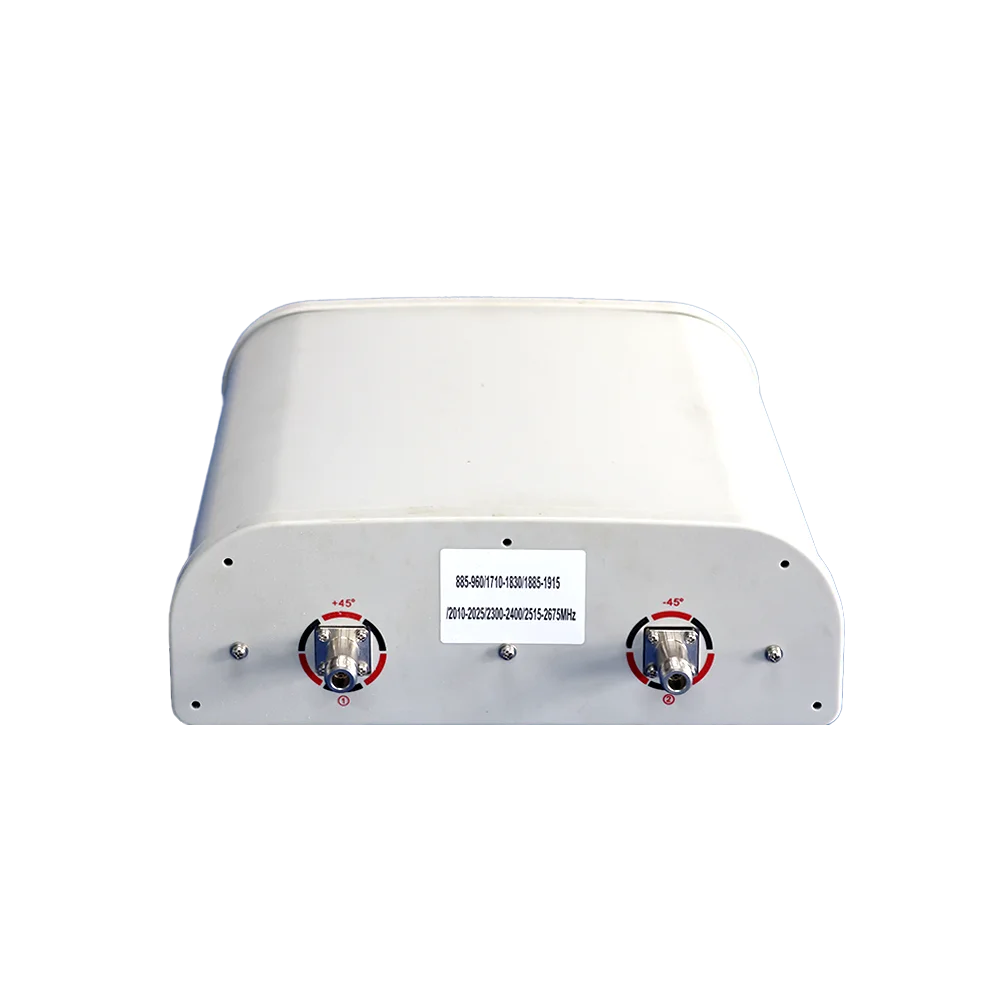

Home > Products > Wireless Communication > Antennas > Directional Panel Antenna
Operating Frequency Band (MHz) |
885 - 960 |
1710 - 1830 |
1885 - 1915 |
2010 - 2025 |
2300 - 2400 |
2515 - 2675 |
||||||
Polarization Mode (°) |
±45 |
|||||||||||
Voltage Standing Wave Ratio of Each Radiating Port |
≤1.45 |
|||||||||||
Third - order Intermodulation (dBm, @2×43dBm) |
≤ - 100 |
≤ - 100 |
/ |
/ |
/ |
/ |
||||||
Second - order Reflected Intermodulation (dBm, @2×43dBm) |
≤ - 100 |
/ |
/ |
/ |
/ |
/ |
||||||
Average Power Capacity (W) |
≥50 |
|||||||||||
Isolation (dB) |
≥25.5 |
|||||||||||
Horizontal Half - Power Beamwidth (°) |
≤40 |
|||||||||||
Vertical Half - Power Beamwidth (°) |
≤40 |
|||||||||||
Gain (dBi) |
≥12.0 |
|||||||||||
Vertical 3dB Beamwidth Cross Polarization Ratio (dB) |
≥8 |
|||||||||||
Horizontal 3dB Beamwidth Cross Polarization Ratio (dB) |
≥8 |
|||||||||||
Front - to - back Ratio (dB) |
≥20 |
|||||||||||
Mechanical Indicators |
||||||||||||
Interface Model |
2×LN - Female |
|||||||||||
Antenna Size (mm) |
450×450×145 |
|||||||||||
Packaging Size (mm) |
486×662×224 |
|||||||||||
Antenna Weight (kg) |
7.3 |
|||||||||||
Weight of Installation Accessories (kg) |
0.67 |
|||||||||||
Radome Material |
UPVC |
|||||||||||
Installation Method |
Pole - mounted installation (pole diameter for installation: Φ70 - 115mm) |
|||||||||||
Limit Wind Speed (km/h) |
200 |
|||||||||||
Ambient Temperature (°C) |
Operating temperature (°C): - 40 - +70; Limit temperature: - 55 - +75 |
|||||||||||
Lightning Protection |
DC grounding |
|||||||||||
