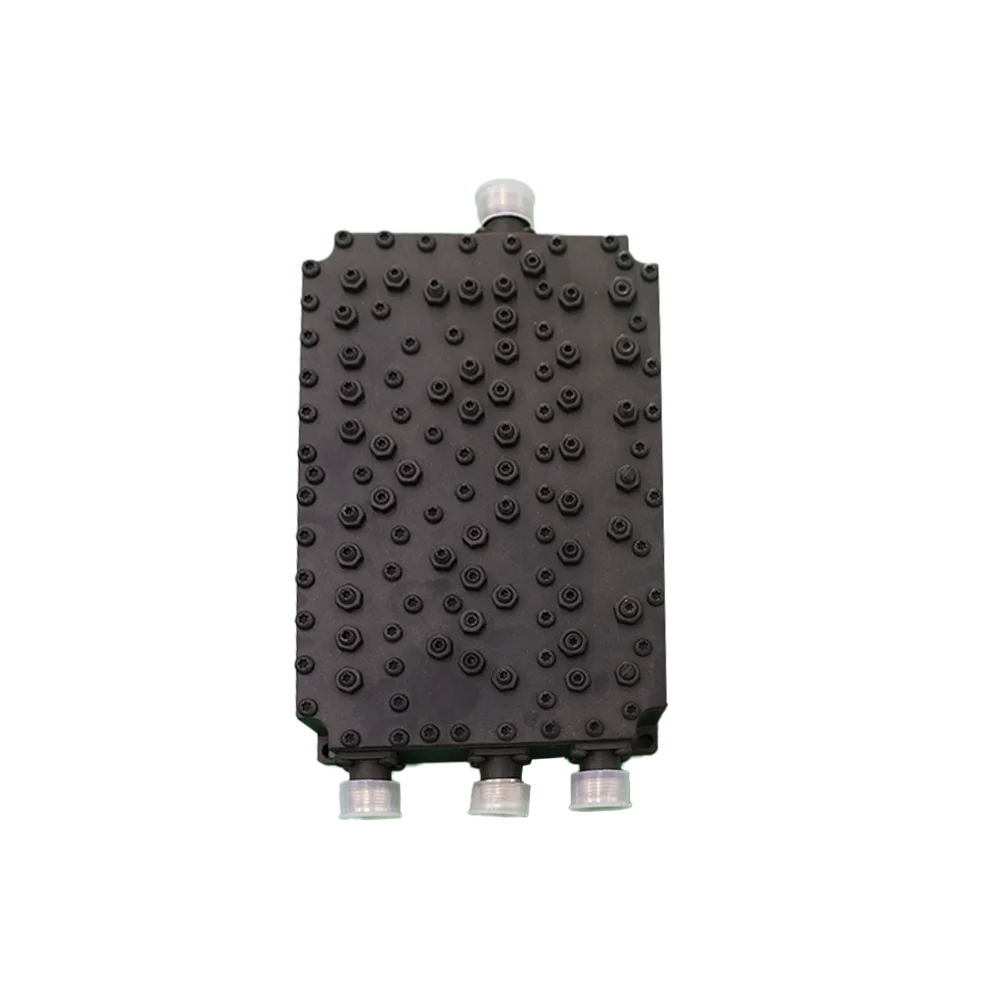

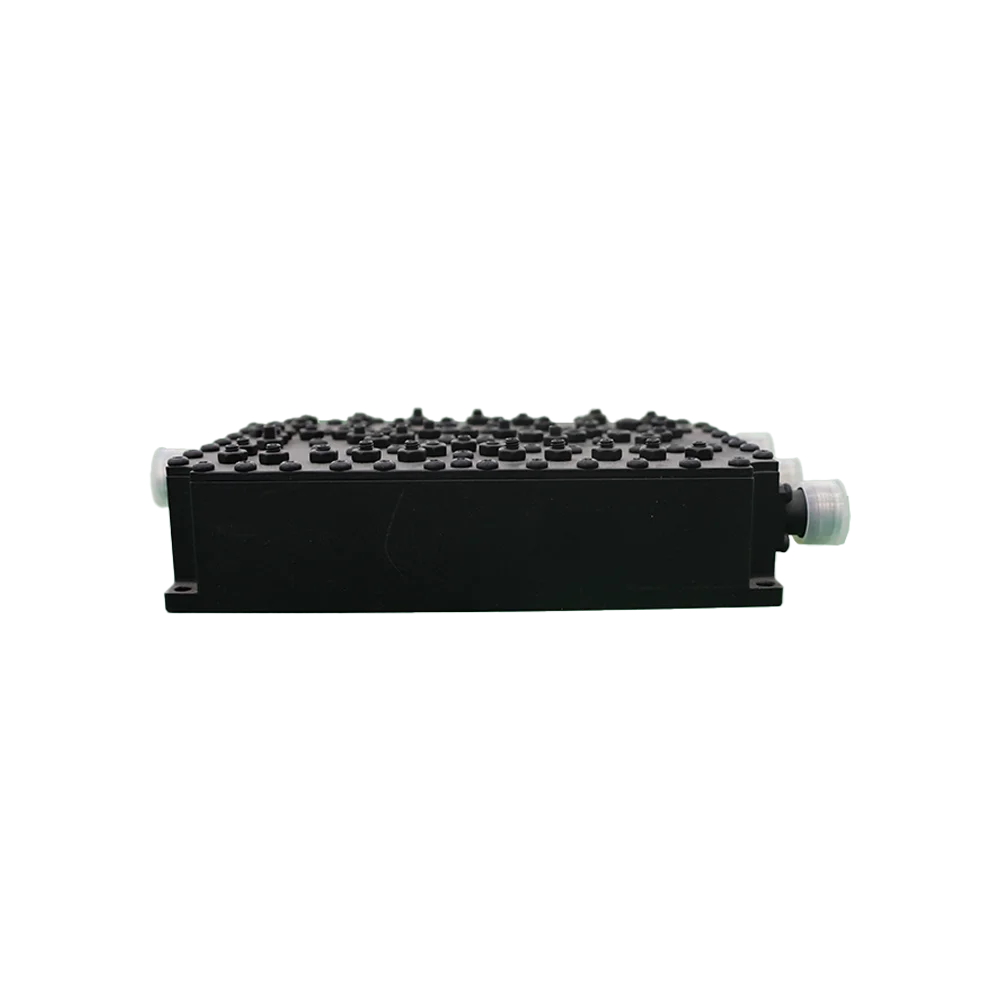

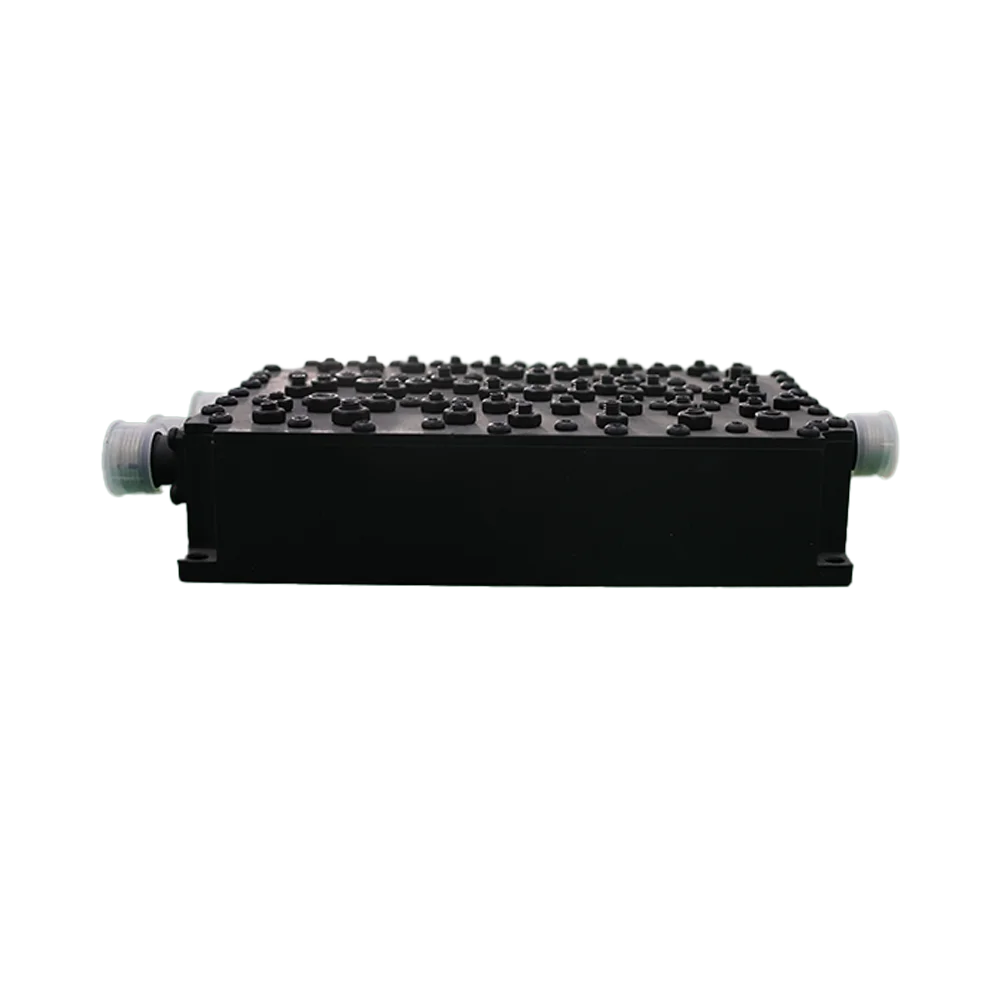

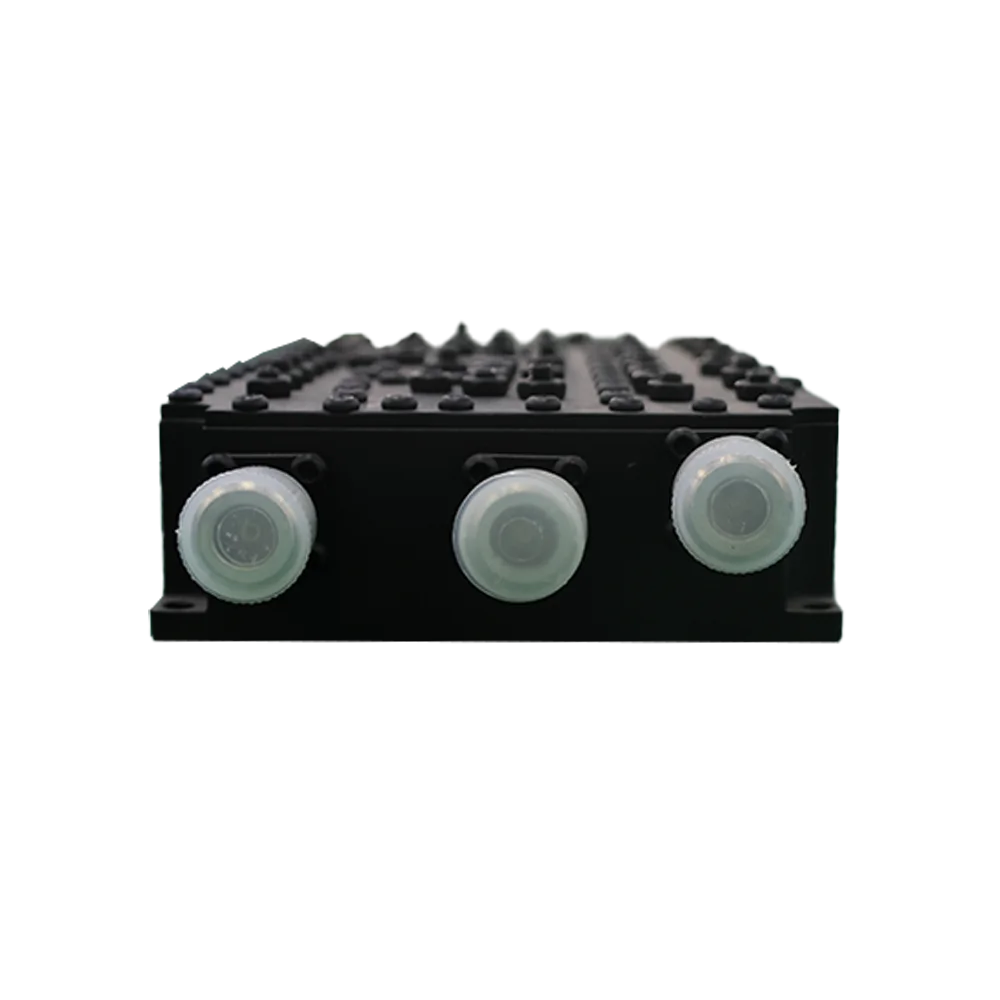

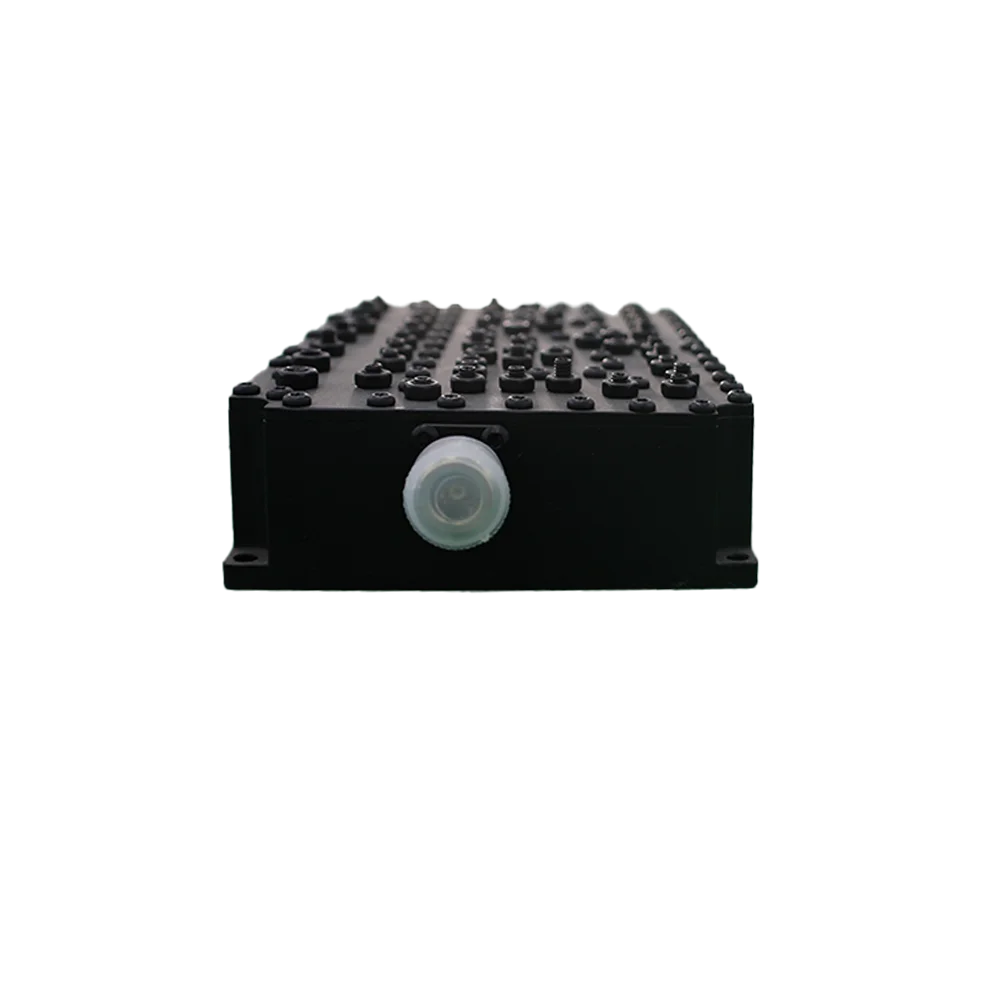

High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner
High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner

High Isolation ≥80dB 1730-1880 1920-2170 3300-3700MHz Tri-Band N-Type Combiner

Get a Quote Contact Us
  • Description
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-1

[email protected]
Inquiry
Product Description
Product Detail
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-2
Channel
CH1
CH2
CH3
Frequency Range (MHz)
1730 - 1880
1920 - 2170
3300 - 3700
Insertion Loss (dB)
≤0.6
In - band Ripple (dB)
≤0.5
Port Isolation (dB)
≥80
VSWR
≤1.3
Impedance (Ω)
50
Third - order Intermodulation (dBc)
≤ - 145@43dBm×2
Fifth - order Intermodulation (dBc)
≤ - 160@43dBm×2
Interface Type
N - F
Power Capacity (W)
Average Power Capacity ≥300, Peak Power Capacity ≥1200
Dimension（mm）
131.5*130.5*33.5
Company Profile
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-3
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-4
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-5
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-6
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-7
product high isolation 80db 1730 1880 1920 2170 3300 3700mhz tri band n type combiner-8
FAQ
Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
