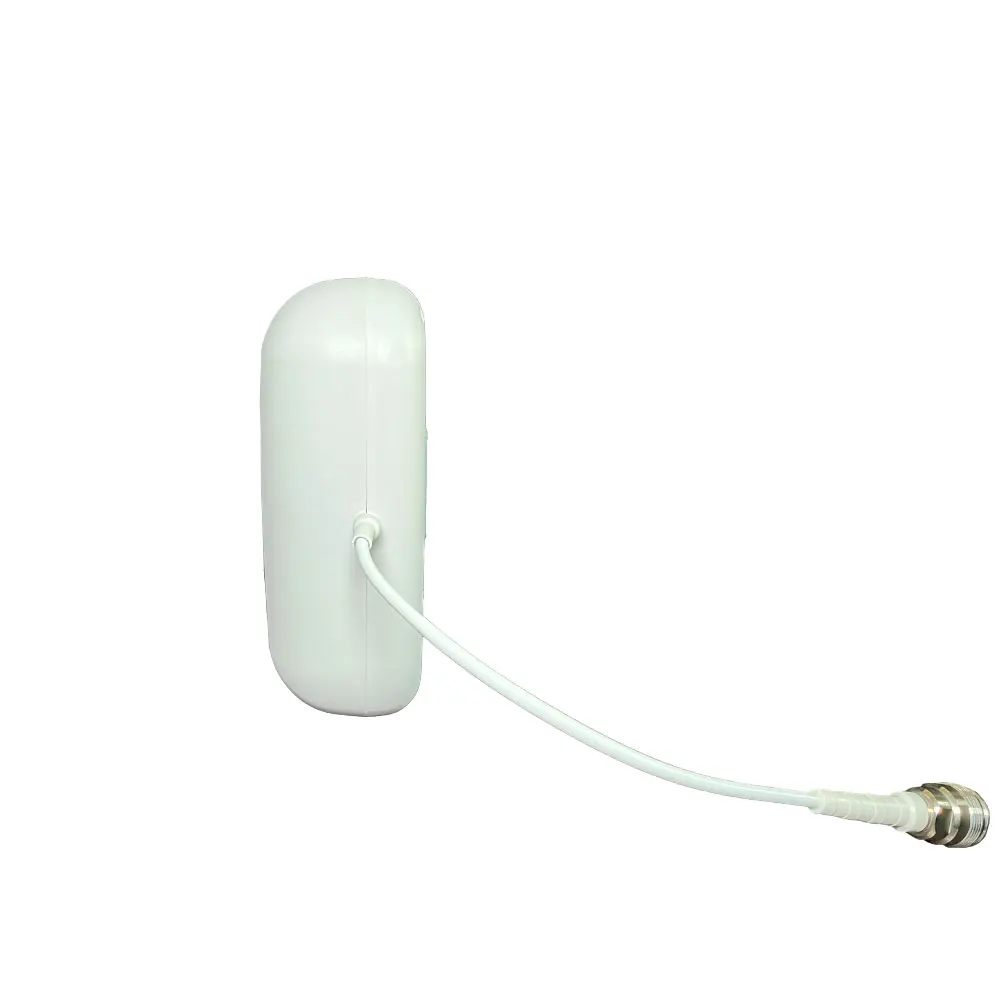

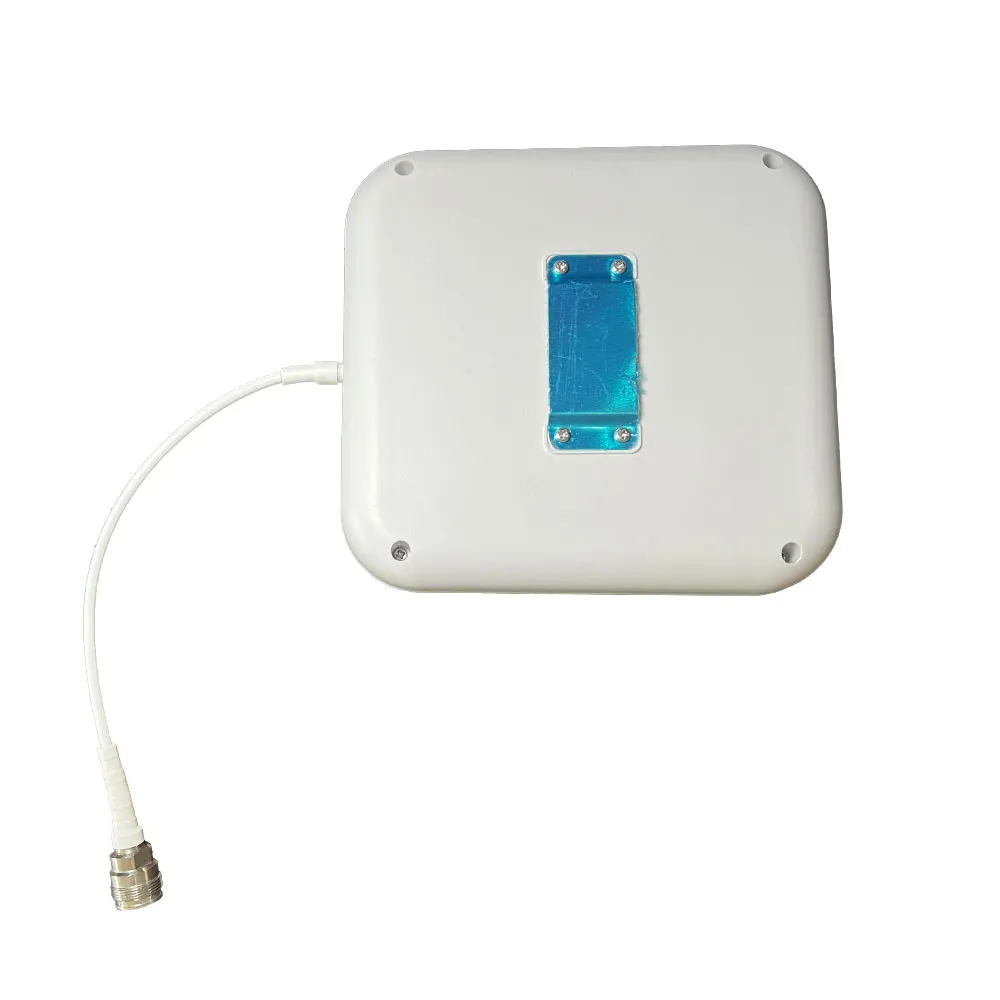

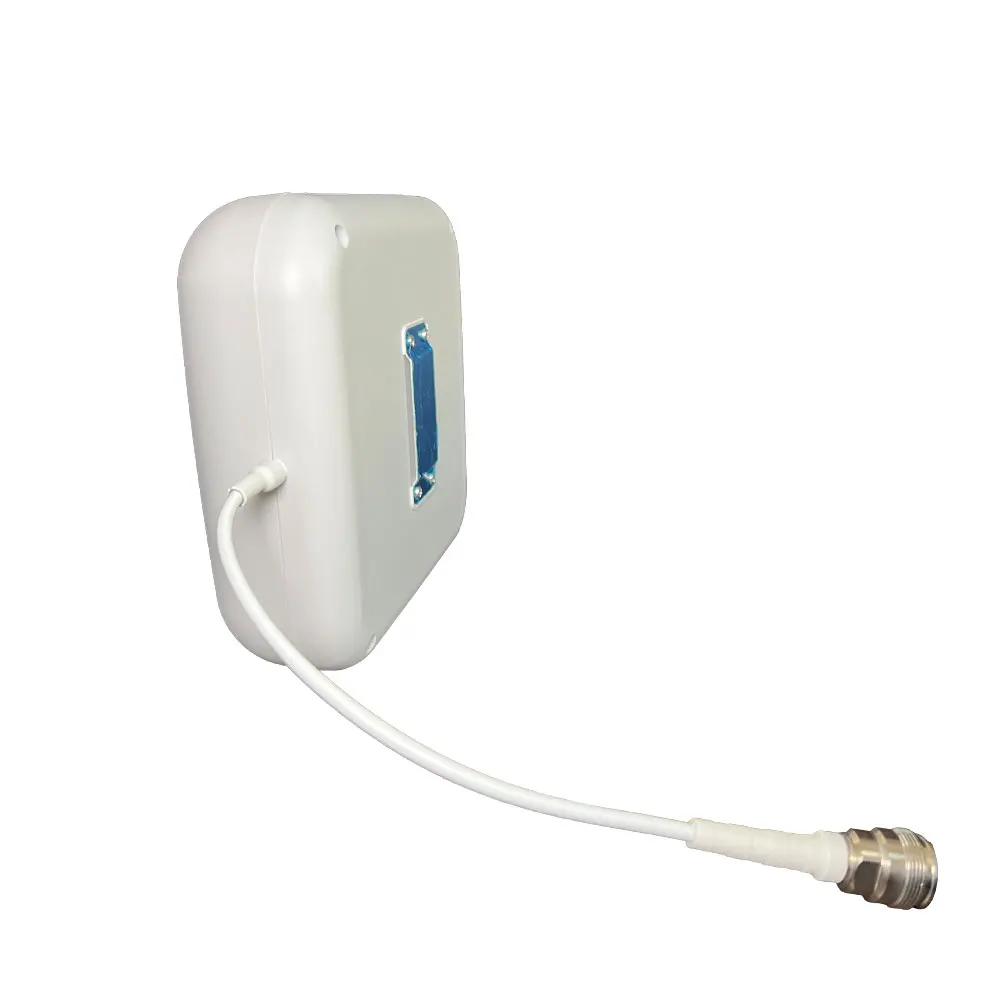

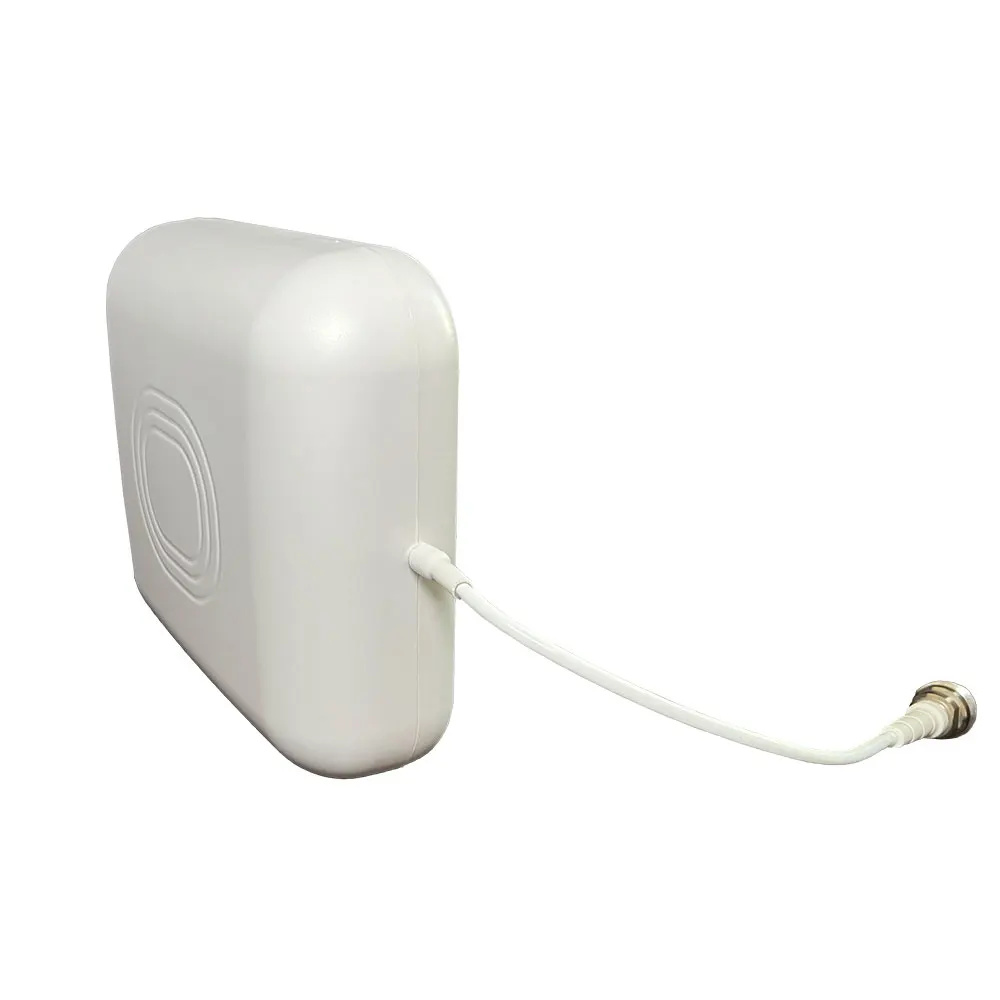

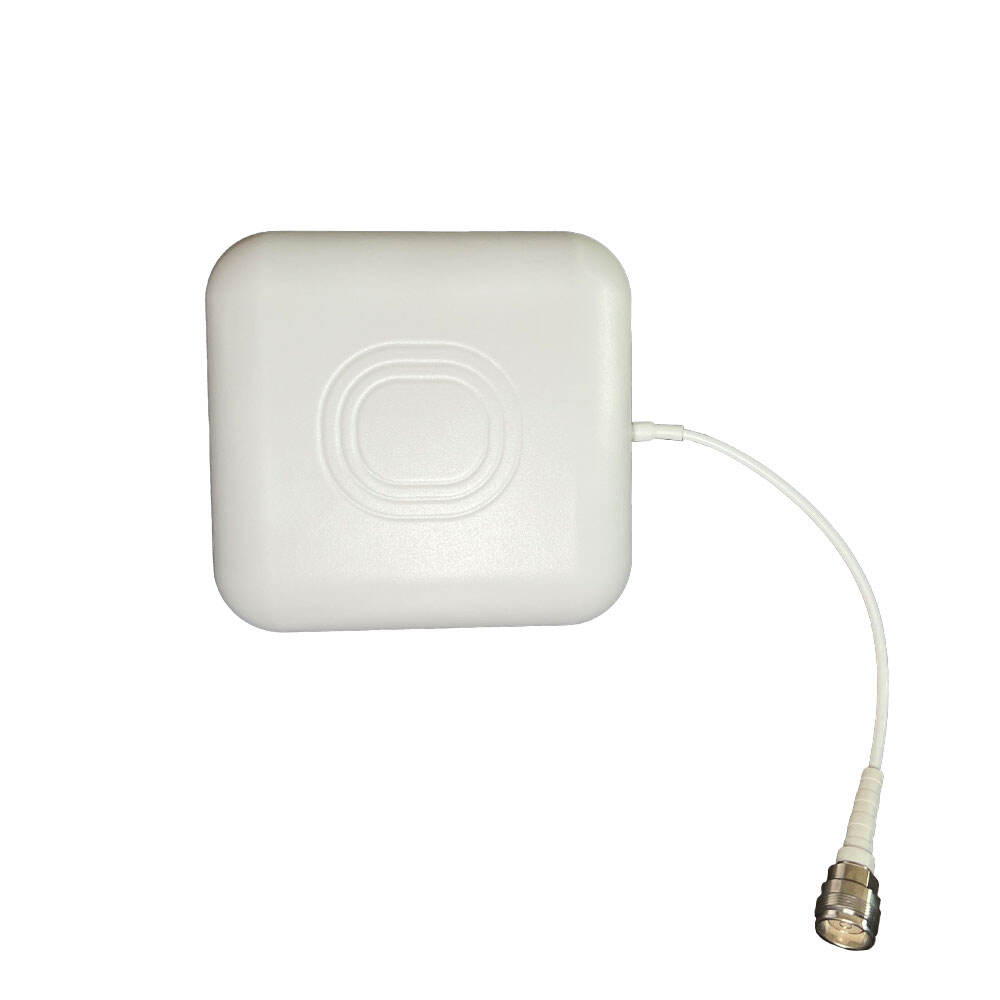

Introducing, the Yoongwin Indoor Waterproof Internet Ceiling Antenna, the perfect solution for boosting your wifi signal in any indoor space. This innovative antenna is designed to provide reliable internet connection by amplifying signals from 698-960, 1710-2690, and 3300-4200MHz frequencies.
The Ceiling Antenna features vertical polarization, which means it can transmit and receive signals more effectively, resulting in a stronger and more stable wifi connection. This makes it perfect for homes, offices, cafes, or any indoor space where a reliable internet connection is essential.
One of the standout features of this antenna is its waterproof design, making it suitable for use in bathrooms, kitchens, or other areas where moisture may be present. This ensures that you can enjoy uninterrupted internet access no matter where you are in your home or office.
Installation of the Yoongwin Ceiling Antenna is a breeze, thanks to its easy-to-follow instructions and simple mounting process. Once installed, you can expect to see a noticeable improvement in your wifi signal strength and speed, allowing you to stream movies, download files, or browse the web without any frustrating lag or buffering.
Not only does the Yoongwin Ceiling Antenna deliver superior performance, but it also boasts a sleek and modern design that will complement any decor. Its discreet ceiling-mounted profile means that it won't clutter up your living or workspace, while still delivering powerful internet coverage.
The Yoongwin Indoor Waterproof Internet Ceiling Antenna is a must-have for anyone looking to improve their wifi signal in indoor spaces. With its waterproof design, vertical polarization technology, easy installation, and stylish appearance, this antenna ticks all the boxes for reliable and efficient internet access. Say goodbye to weak signals and slow speeds – with the Yoongwin Ceiling Antenna, fast and reliable wifi is just a click away
DSPBG698-4200V-20W-8i-N-F |
||||||
Electrical specifications |
||||||
Frequency range (MHz) |
698-960 |
1710-2690 |
3300-4200 |
|||
Polarization |
Vertical |
|||||
Gain(dBi) |
6 |
7 |
8 |
|||
Horizontal beam-width(°) |
80 |
65 |
55 |
|||
3dB Vertical beam-width(°) |
70 |
60 |
35 |
|||
VSWR |
≤1.8 |
≤1.8 |
≤1.8 |
|||
Intermodulation IM3(dBc) |
≤-150dBc @2*43dBm |
|||||
Impedance(Ω) |
50 |
|||||
Maximum input power(W) |
50 |
|||||
Mechanical specifications |
||
Connector |
1×N-Female |
|
Connector position |
Bottom |
|
Size(mm) |
175 x 165 x 60 |
|
weight(kg) |
0.35 |
|
Radome material |
ABS |
|
Radome color |
White |
|
Operating temperature(℃) |
-40～65 |
|
Mounting Kit |
On-wall |
|
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
