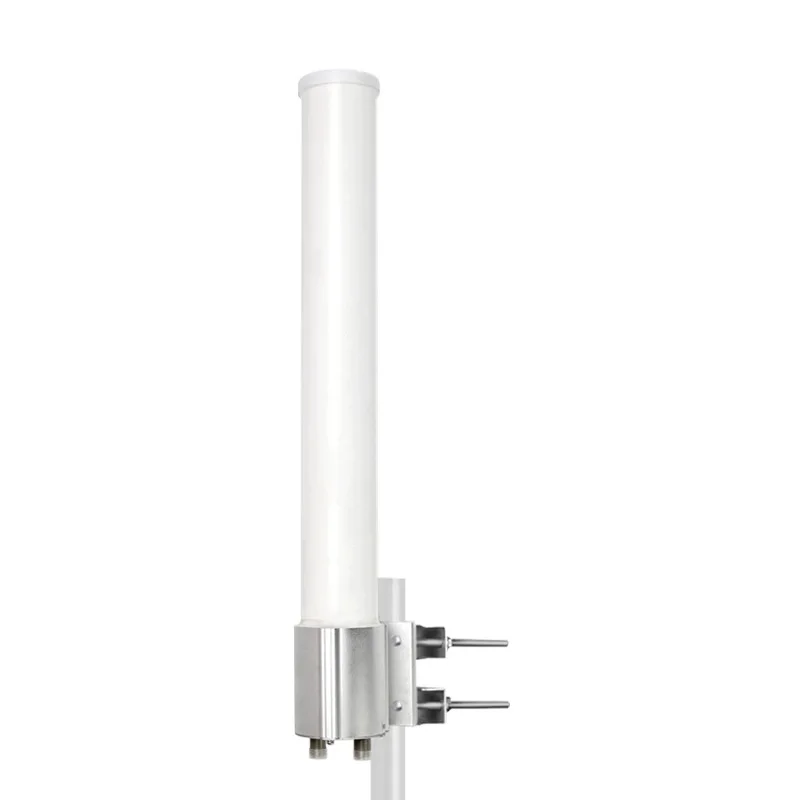

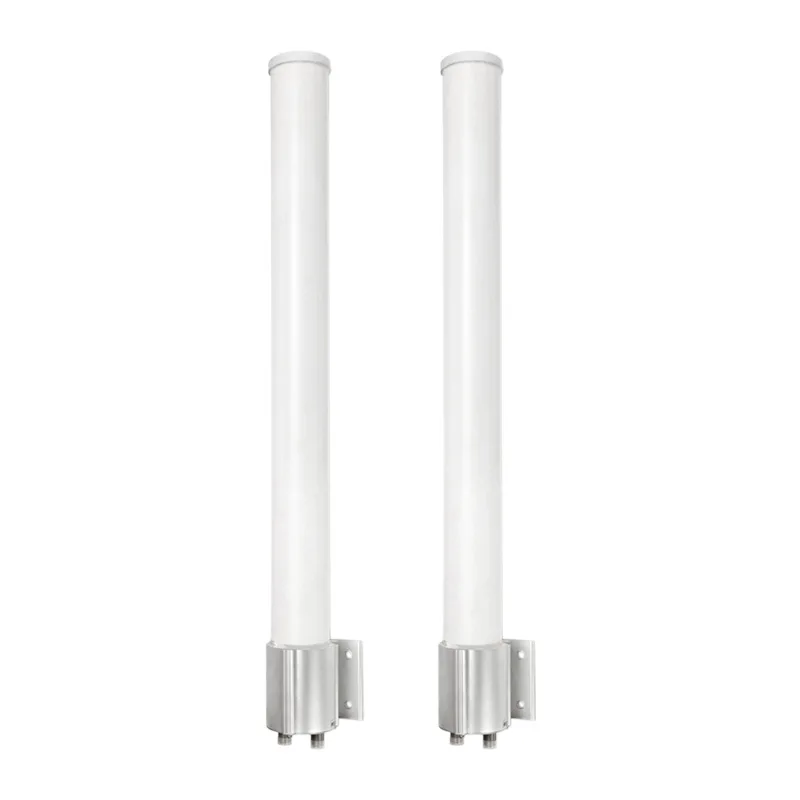

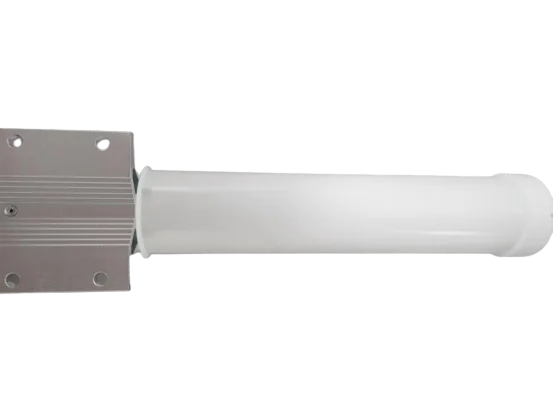

IP65 Rated 5dBi Gain 380-430MHz 2-Port Outdoor Omni Antenna

IP65 Rated 5dBi Gain 380-430MHz 2-Port Outdoor Omni Antenna

Description

[email protected]

Description

Product Description

1. True 360° Omnidirectional Coverage
Provides uniform horizontal coverage in all directions, ensuring reliable connectivity for devices regardless of their position relative to the antenna.

2. Robust Outdoor Design with IP65 Protection
Features a PVC radome and a strict IP65 rating, offering complete protection against dust and water jets for long-term outdoor reliability.

3. Stable Performance with High Power Handling
Supports up to 100W power with a VSWR ≤2.0, ensuring stable signal transmission and durability in demanding communication environments.

4. Easy Deployment with Standard Connectors
Equipped with 2*N-Type female connectors, facilitating easy installation and compatibility with standard radio equipment.

5. Built for Harsh Environments
Designed to operate in temperatures from -40°C to +60°C and withstand wind speeds up to 110 km/h, guaranteeing performance in extreme weather conditions.

Product Detail

Electrical specifications
Frequency range (MHz)	380～430
Polarization	Vertical
Gain (dBi)	5.0±0.5
Electrical downtilt (°)	0
Horizontal beam width (°)	360°
Vertical beam width (°)	40±5°
Impedance (Ω)	50
VSWR	≤2.0
Maximum power (W)	100
Lightning protection	DC ground
Mechanical Specification
Connector	2*N-female
Radome material	PVC
Radome color	White
Height/width/depth (mm)	Φ100*1250
Limit wind velocity (km/h)	110
Water Proof Grade	IP65
Operating Tempreature(℃)	-40~+60
MTBF(h)	70090-87600

Application Scenarios

1. Private Mobile Radio (PMR) and Trunking Systems: Ideal for providing omnidirectional coverage in industrial and commercial two-way radio networks.

2.IoT and M2M Communication Networks: Suitable for wide-area sensor networks, smart metering, and industrial monitoring applications in the 400MHz band.

3.Public Safety and Emergency Communication Systems: Provides reliable coverage for first responder and security networks that operate in this frequency range.

4.Rural and Remote Area Coverage: The omnidirectional pattern is excellent for providing general coverage in areas where
directional focus is not required.

5.Transportation and Logistics Communication: Can be used in ports, warehouses, and railway yards for vehicle-to-infrastructure communication.
