Product Description

SAE J1113 Short Type Snap-On Ferrite Core for Automotive Harness factory

Product Detail

Model	Magnetic ring inner hole specification (short type)	Electrical performance - Z1 (Ω)	Electrical performance - Z2 (Ω)	Size (mm) - A	Size (mm) - B

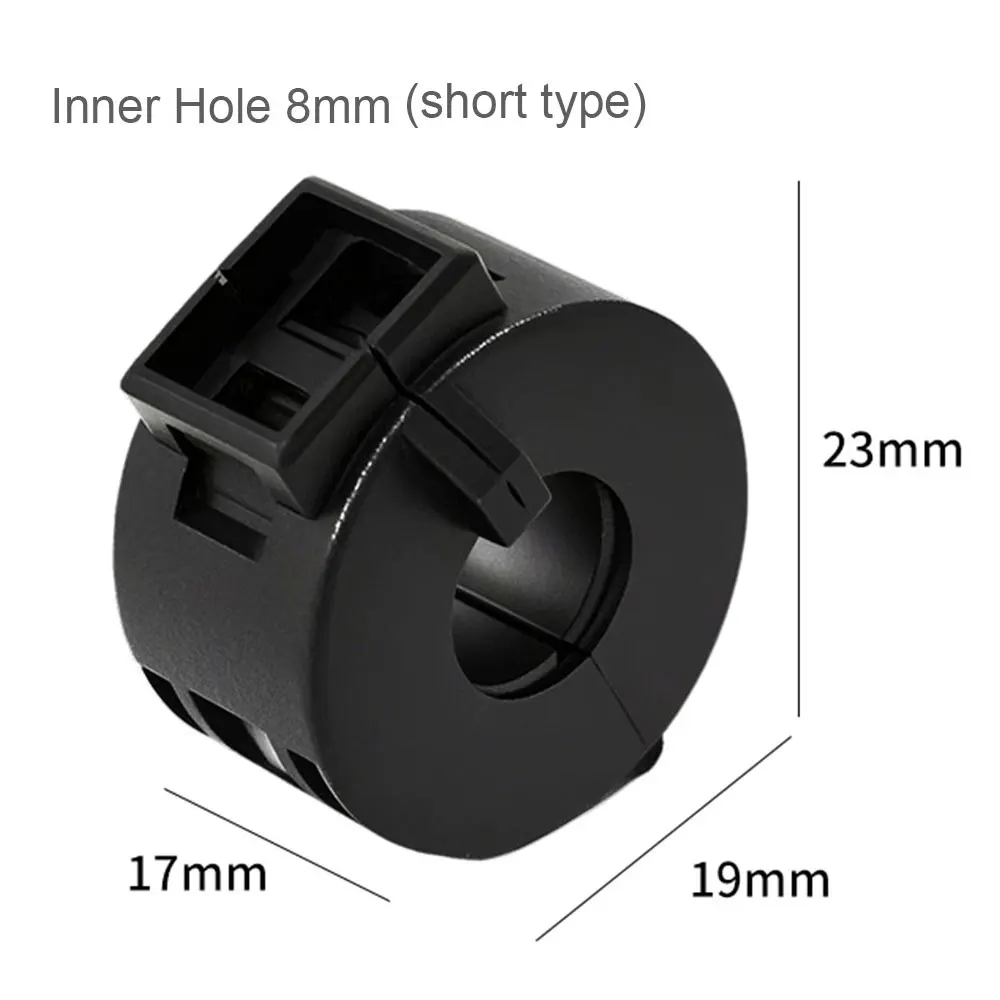

YW-YBCH-D-8	8mm	40	100	19.5	23
YW-YBCH-D-10	10mm	30	70	24	27

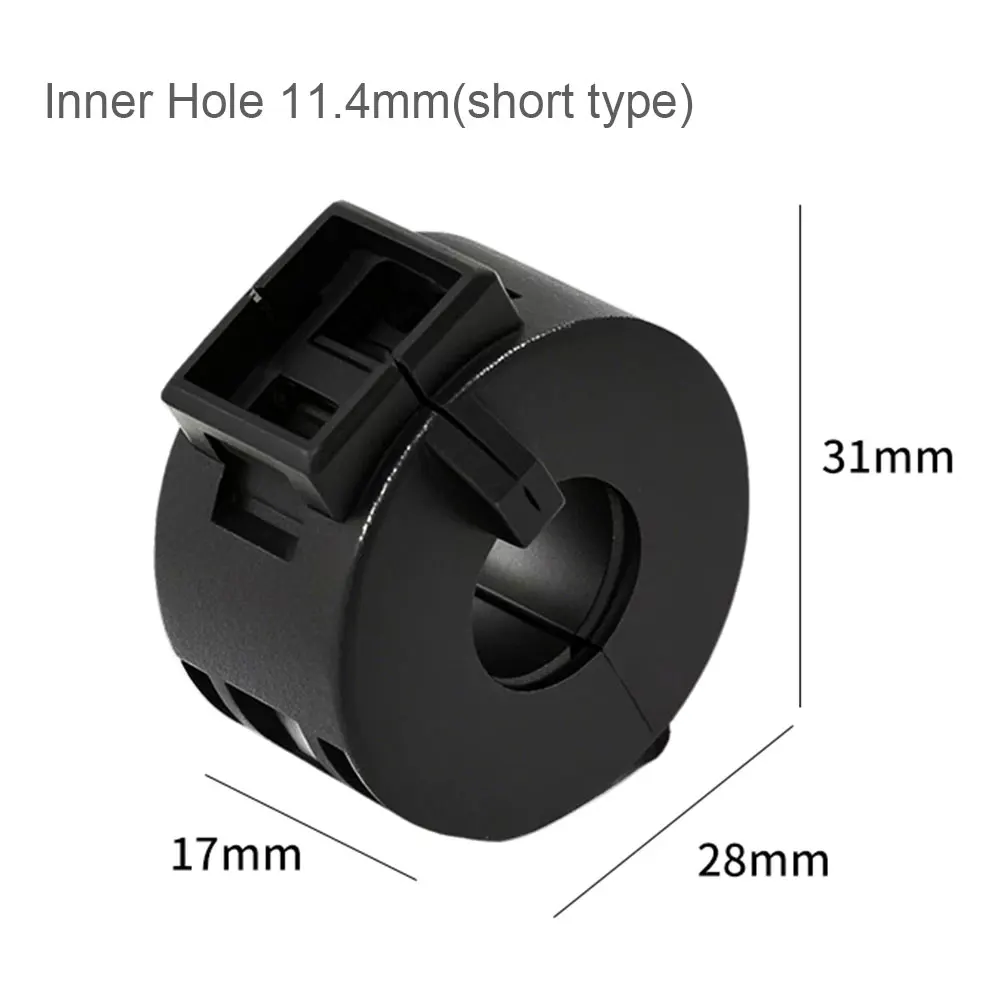

YW-YBCH-D-11.4	11.4mm	50	100	28	31

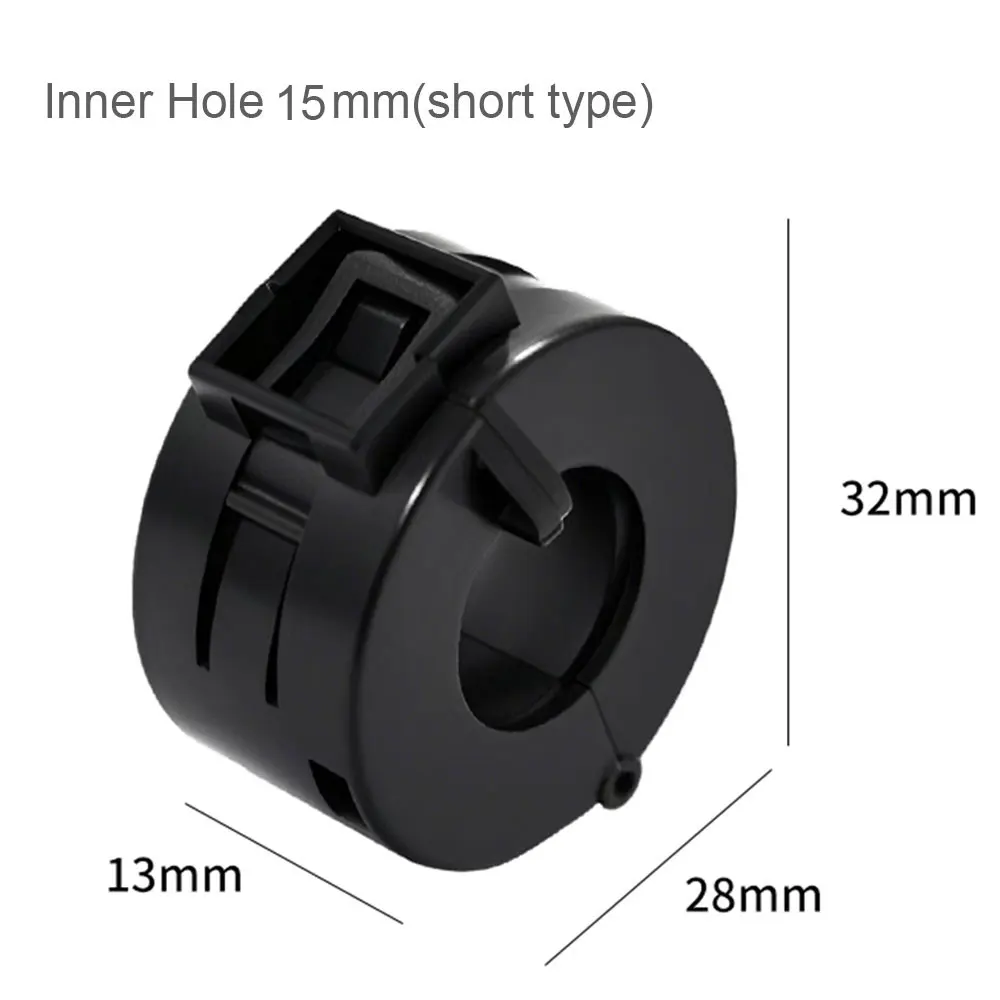

YW-YBCH-D-15	15mm	20	60	28.6	32.5

Model	Size (mm) - C	Size (mm) - D	Size (mm) - E	Wire
YW-YBCH-D-8	8	17	23	Φ0.65100L(mm)0.5Ts
YW-YBCH-D-10	10	13.5	19	Φ0.65100L(mm)0.5Ts
YW-YBCH-D-11.4	11.4	17.5	23.5	Φ0.65100L(mm)0.5Ts
YW-YBCH-D-15	15.4	13.6	21.8	Φ0.65100L(mm)0.5Ts
