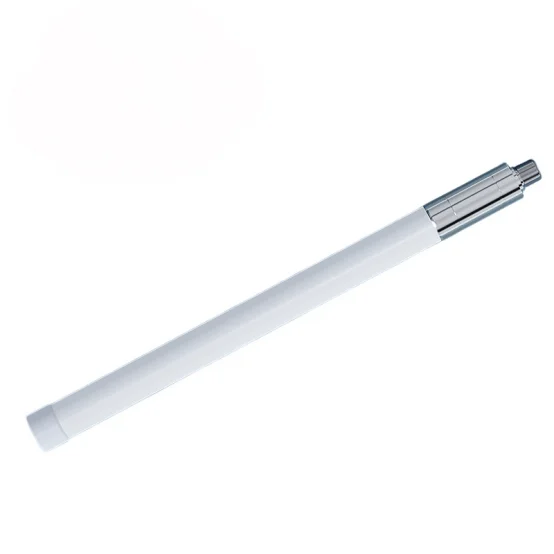

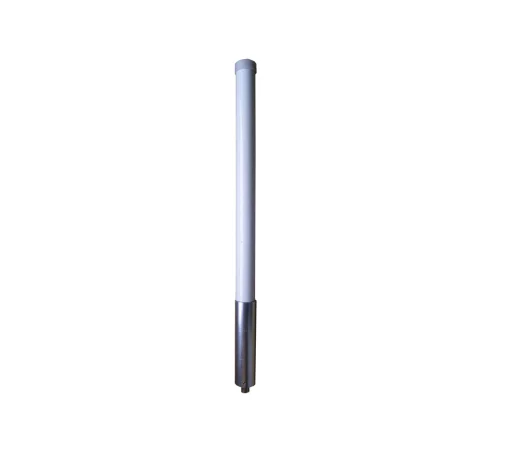

Home > Products > Wireless Communication > Antennas > Fiberglass Antenna
Electrical Indicators |
||
Frequency (MHz) |
372 - 387 |
|
Polarization |
Vertical Polarization |
|
Gain (dBi) |
5 |
|
Horizontal Plane 3dB Beam Width (°) |
360 |
|
Vertical Plane 3dB Beam Width (°) |
36 ± 5 |
|
Non - circularity |
≤ 3dB |
|
VSWR |
≤1.5 |
|
Input Impedance (Ω) |
50 |
|
Maximum Power (W) |
200 |
|
Ground Protection |
DC |
|
Mechanical Parameters |
||
Connector Type |
N - J |
|
Connector Position |
Bottom |
|
Antenna Radome Material |
Fiberglass |
|
Antenna Radome Color |
White |
|
Antenna Weight (excluding clamps, kg) |
0.62 ± 0.05 (excluding clamps) |
|
Dimensions (mm) |
Φ36 * (1200 ± 5) |
|
Limit Wind Speed (m/s) |
60 |
|
Operating Humidity (%) |
5 - 95 |
|
Operating Temperature (°C) |
- 40 ~ + 70 |
|
Dust and Waterproof Rating |
IP65 (Tested by blocking the water hole) |
|
Pole Diameter (mm) |
Φ35 ~ Φ50 |
|
