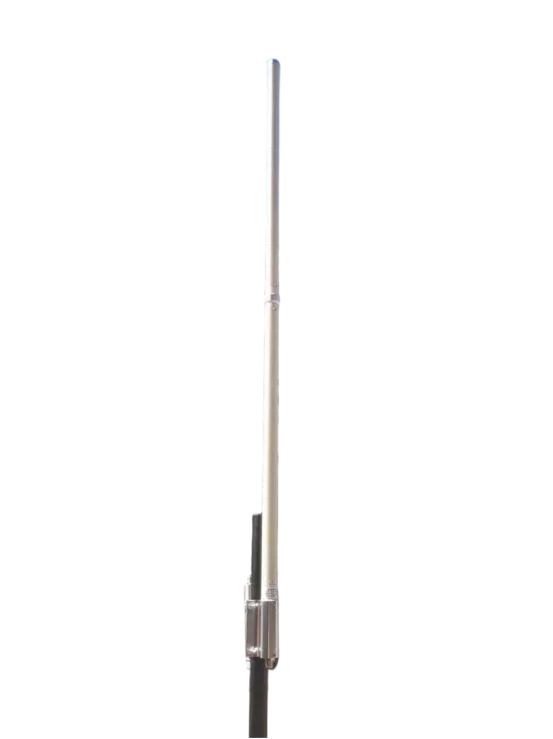

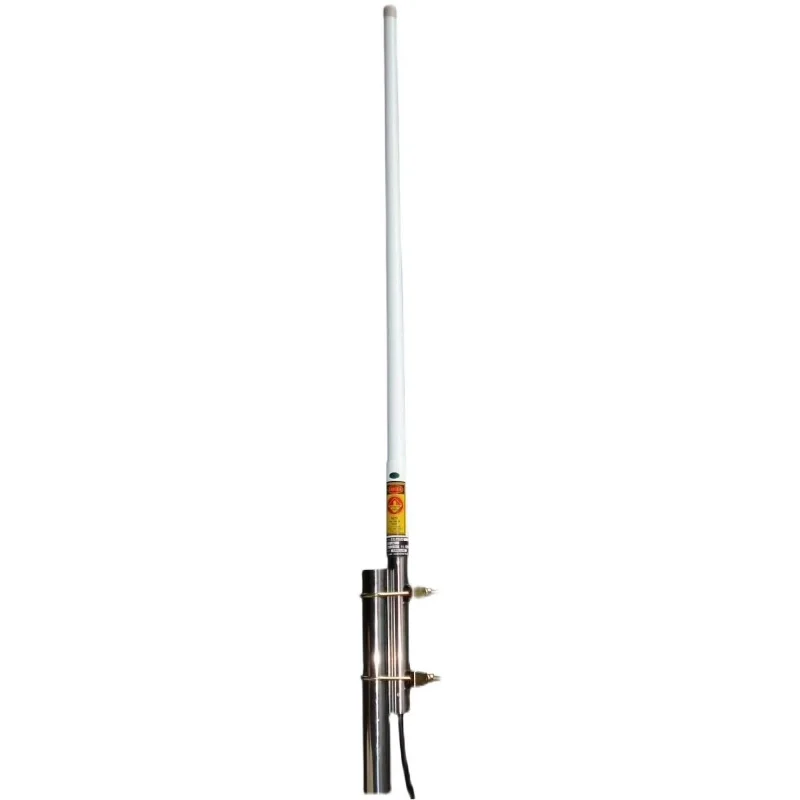

N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna
N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna

N-Female 2.4m Height 8dBi Gain 606-678MHz Coastal Base Station Antenna

Get a Quote Contact Us
  • Description
product n female 24m height 8dbi gain 606 678mhz coastal base station antenna-1

[email protected]
Inquiry
Product Description
Product Detail
Electrical Performance
Frequency Range (MHz)
606-678
Bandwidth
72 MHz
Gain (dBi)
8 dBi
Horizontal Beamwidth (°)
360
Vertical Beamwidth (°)
＞19°
Voltage Standing Wave Ratio (VSWR)
≤2.0
Polarization
Vertical
Nominal Impedance (Ω)
50
Maximum Power (W)
50
Connector Type
N-Female
Mechanical & Protective Specifications
Weight (kg)
＜3
Wind Resistance (m/s)
60
Protective Capability
Salt spray corrosion resistance; Butterfly clamp: 316L stainless steel
