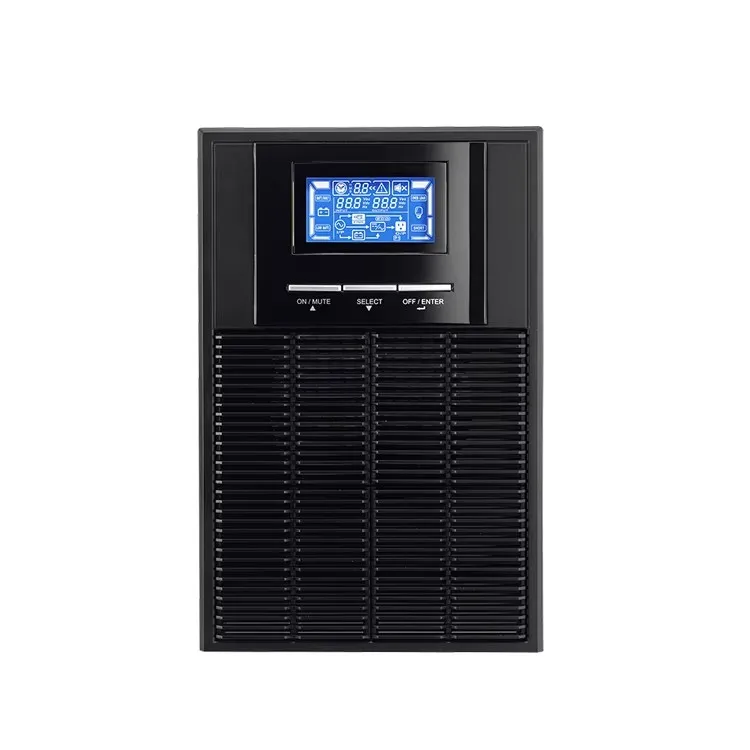

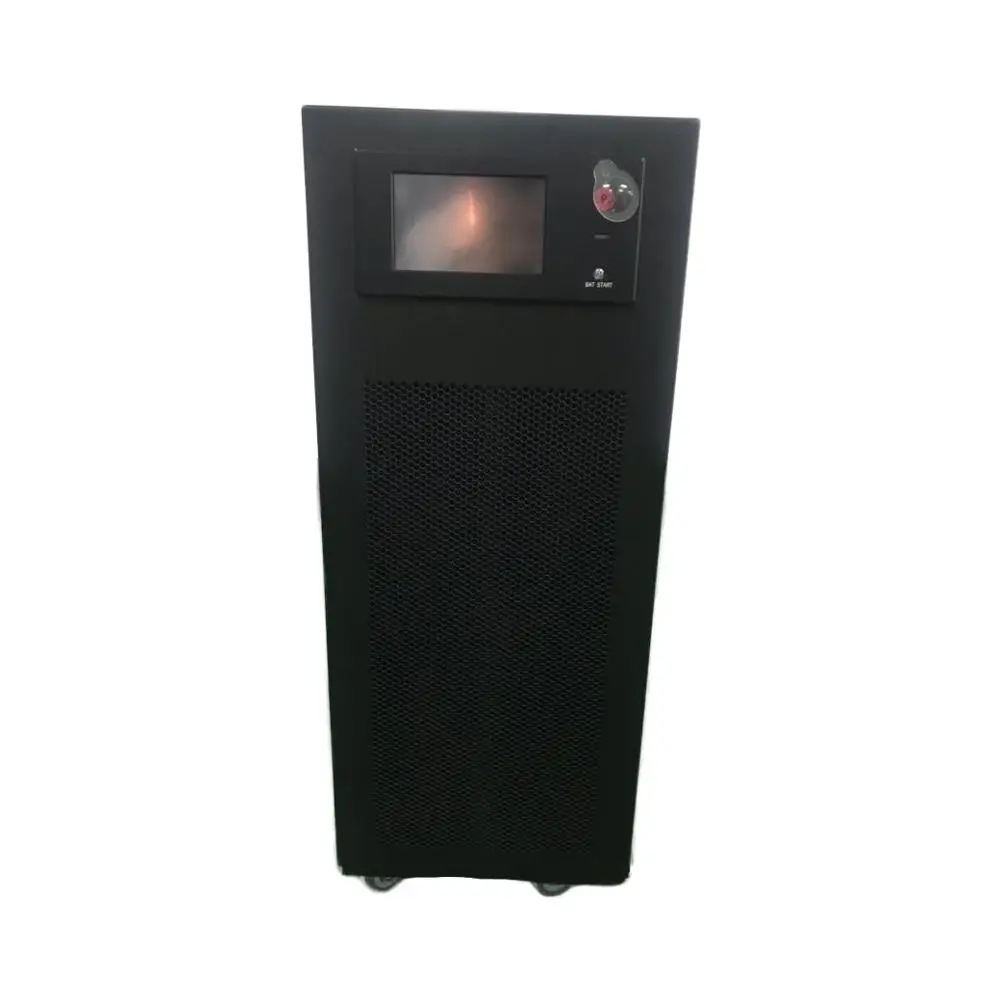

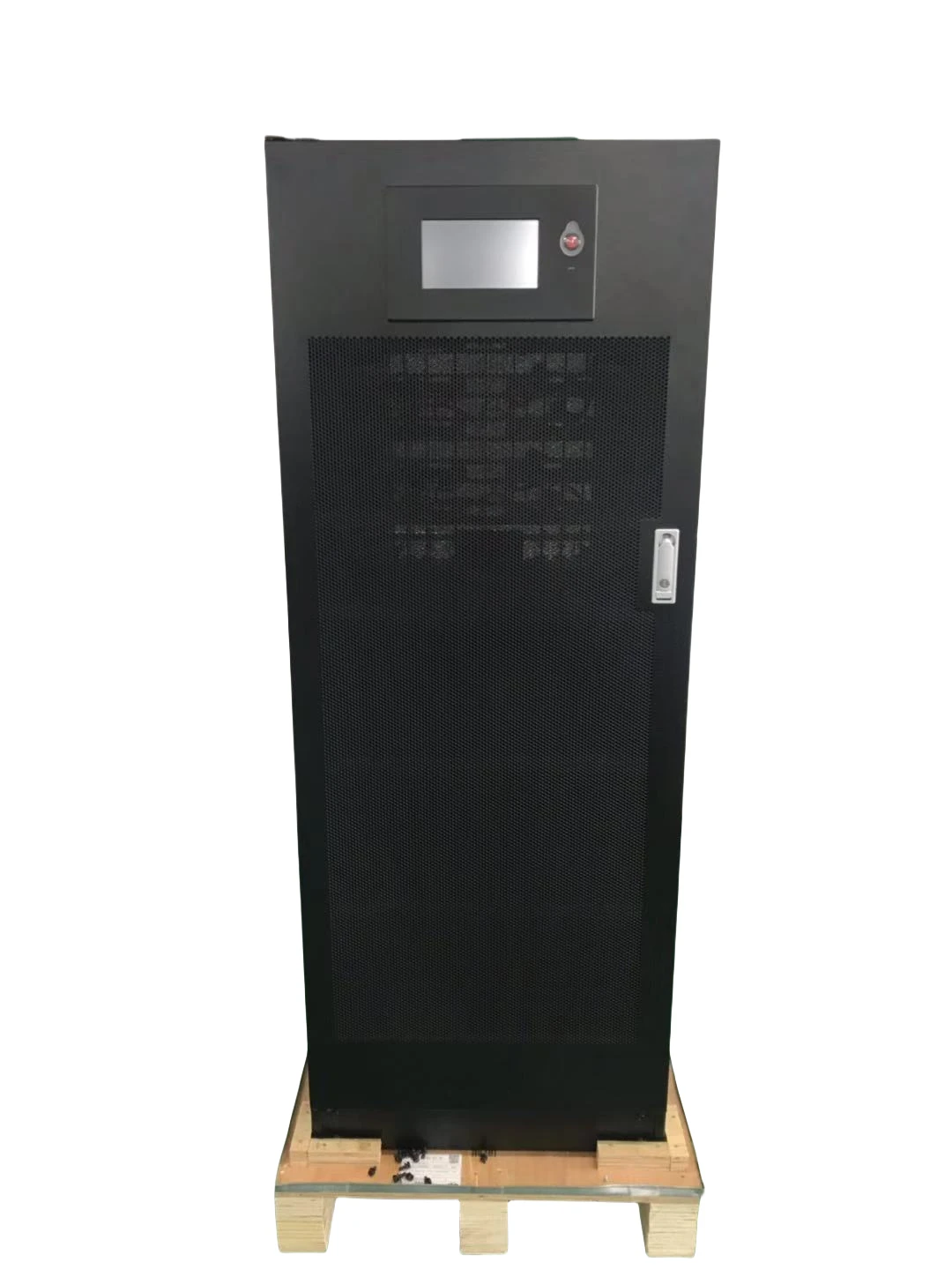

Online UPS Power Supply for Computer/Networking Excellent Power Module OEM High Quality 25KVA 30KWA

Online UPS Power Supply for Computer/Networking Excellent Power Module OEM High Quality 25KVA 30KWA

Description

networking excellent power module oem high quality 25kva 30kwa-1

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

Online UPS Power Supply for Computer/Networking Excellent Power Module OEM High Quality 25KVA 30KWA supplier

Product Detail

Model	YWHQ10G(L)	YWHQ20G(L)	YWHQ30G(L)	YWHQ60G(L)	YWHQ110G(L)
Capacity	1kVA	2kVA	3kVA	6kVA	10kVA
Input
Voltage Range	110 - 300Vac @50% load; 160 - 280Vac @100% load					110 - 300Vac @50% load; 176 - 300Vac @100% load
Frequency Range	40Hz - 70Hz					40Hz - 70Hz 46Hz - 54Hz @50Hz system; 56Hz - 64Hz @60Hz system
Power Factor	≥0.99 (100% load)
Output
Rated Voltage	200/208/220/230/240Vac					208/220/230/240Vac
Voltage Regulation (Static)	±1%
Frequency Range (Synchronous Range)	47Hz - 53Hz or 57Hz - 63Hz					46Hz - 54Hz or 56Hz - 64Hz
Frequency Range (Battery Mode)	50Hz ± 0.25Hz or 60Hz ± 0.3Hz					50Hz ± 0.1Hz or 60Hz ± 0.1Hz
Load Range	105% - 110%: 10 minutes; 110% - 130%:1 minute; >130%:1 second
Power Factor	0.8					Standard 0.8 (Optional 1)
Current Peak Ratio	3:1
Voltage Waveform Deviation	≤3% @ 100% linear load; ≤6% @ 100% non - linear load					≤3% @ 100% linear load; ≤5% @ 100% non - linear load
Transfer Time	< 4ms					0ms
Efficiency (ECO Mode)	>88%	>89%	>90%	>92%	>93%
Battery
Battery Model	12V / 7Ah
Battery Quantity	2	4	6	Preset 16 (Adjustable from 16 - 20)
Charging Current	1A					Preset: 1A; Maximum: 2A optional
Charging Voltage	27.3Vdc ± 1%	54.7Vdc ± 1%	82.0Vdc ± 1%	218.4 Vdc ± 1%
Physical Characteristics
Dimensions Depth x Width x Height (mm)	282 x 145 x 220	397 x 145 x 220	421 x 190 x 318	369 x 190 x 688	442 x 190 x 688
Net Weight (kg)	9.8	17	27.6	61	66
Environmental Conditions
Operating Environment	Relative humidity 20 - 95% and temperature 0 - 40°C (non - condensing)					Relative humidity 0 - 95% and temperature 0 - 50°C (non - condensing)
Noise Level	< 50dB(A) @ 1m					< 55dB(A) @ 1m
Management
Intelligent RS - 232 or USB	Support Windows® 2000/XP/Vista/2007/8, Linux, Unix and MAC
Optional SNMP	Support power management by SNMP manager and web browser
