Uninterruptible Power Supply (UPS) Advanced Power Management Single Phase with Lead Acid Battery

Uninterruptible Power Supply (UPS) Advanced Power Management Single Phase with Lead Acid Battery

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

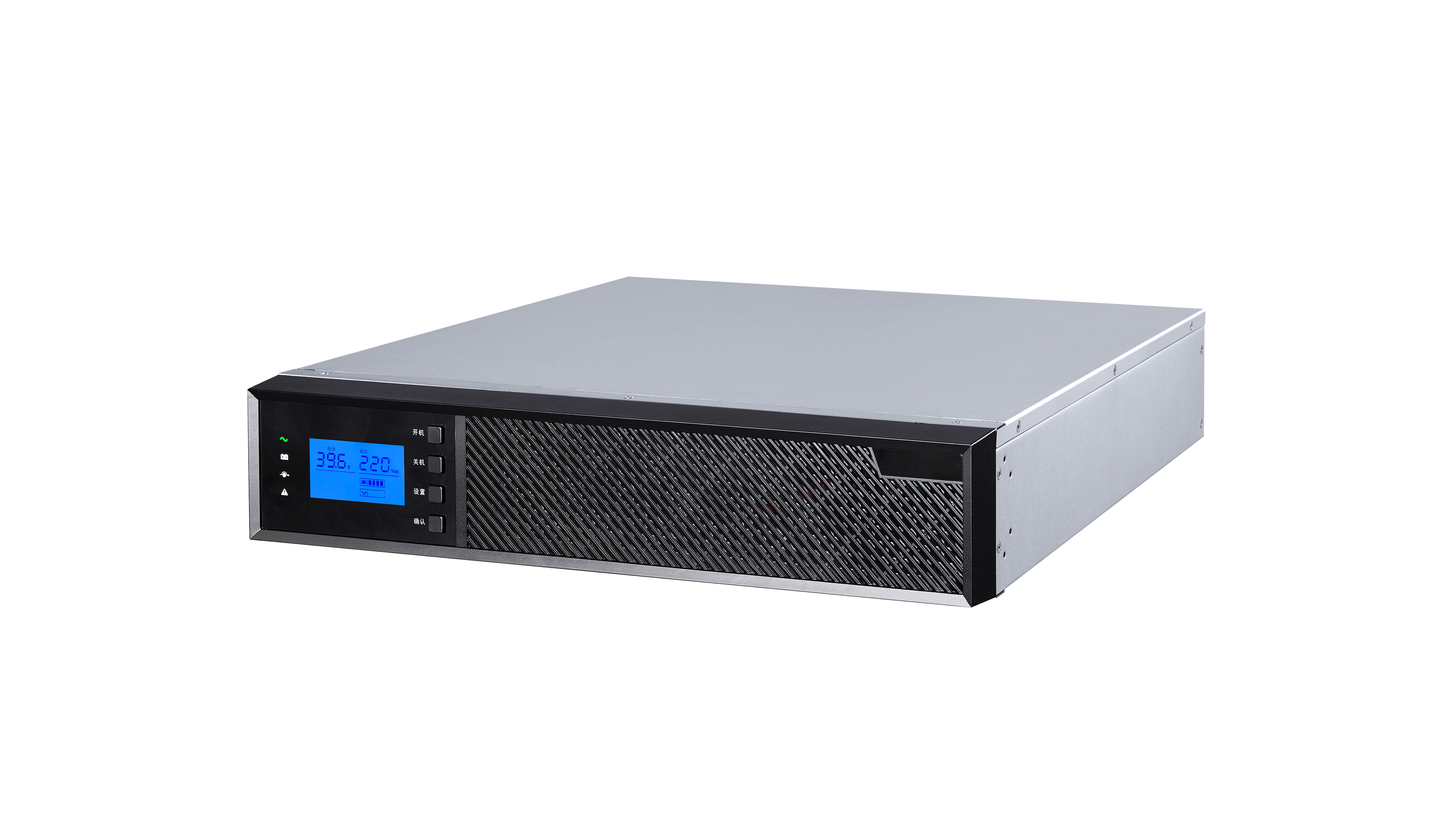

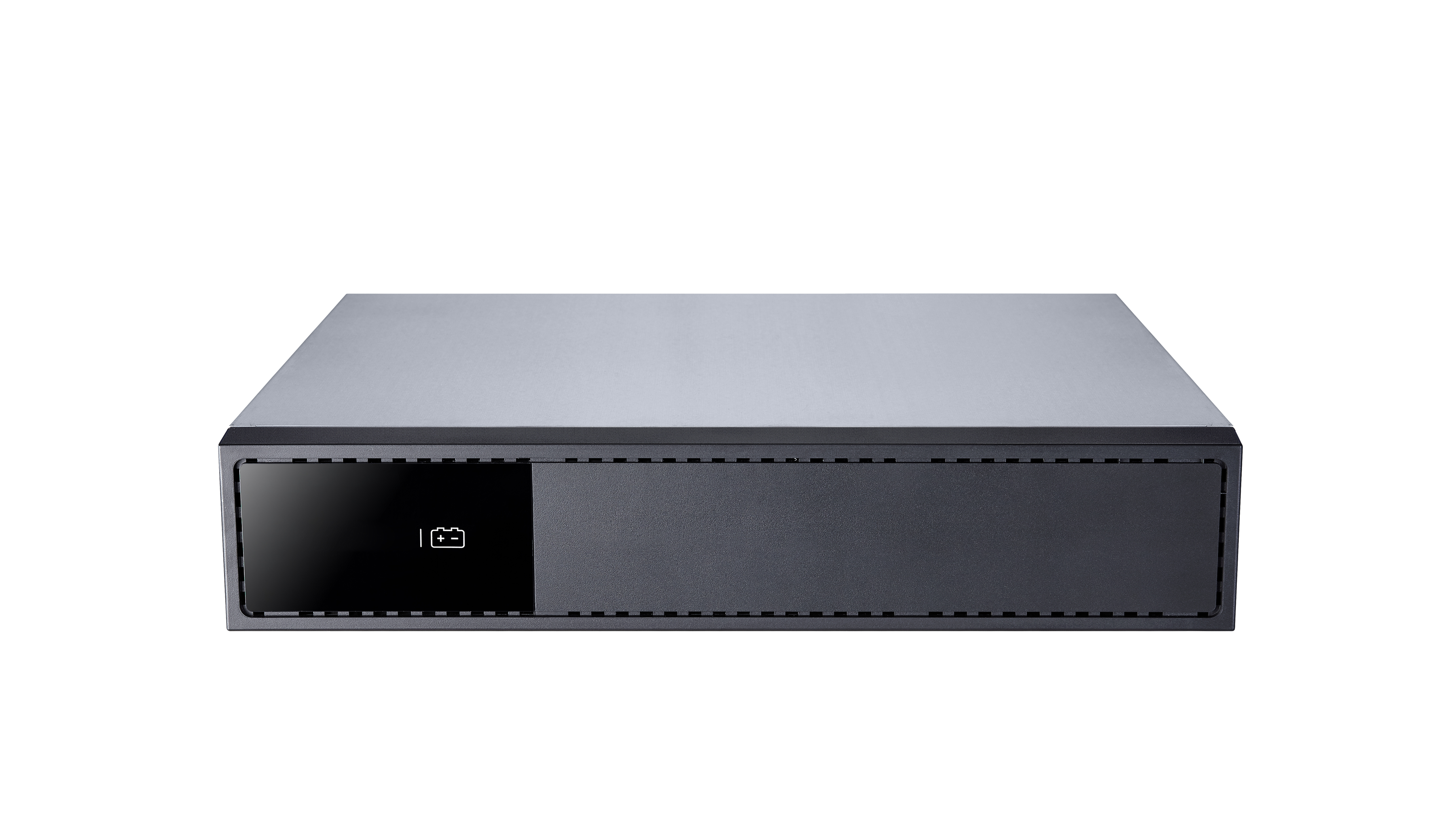

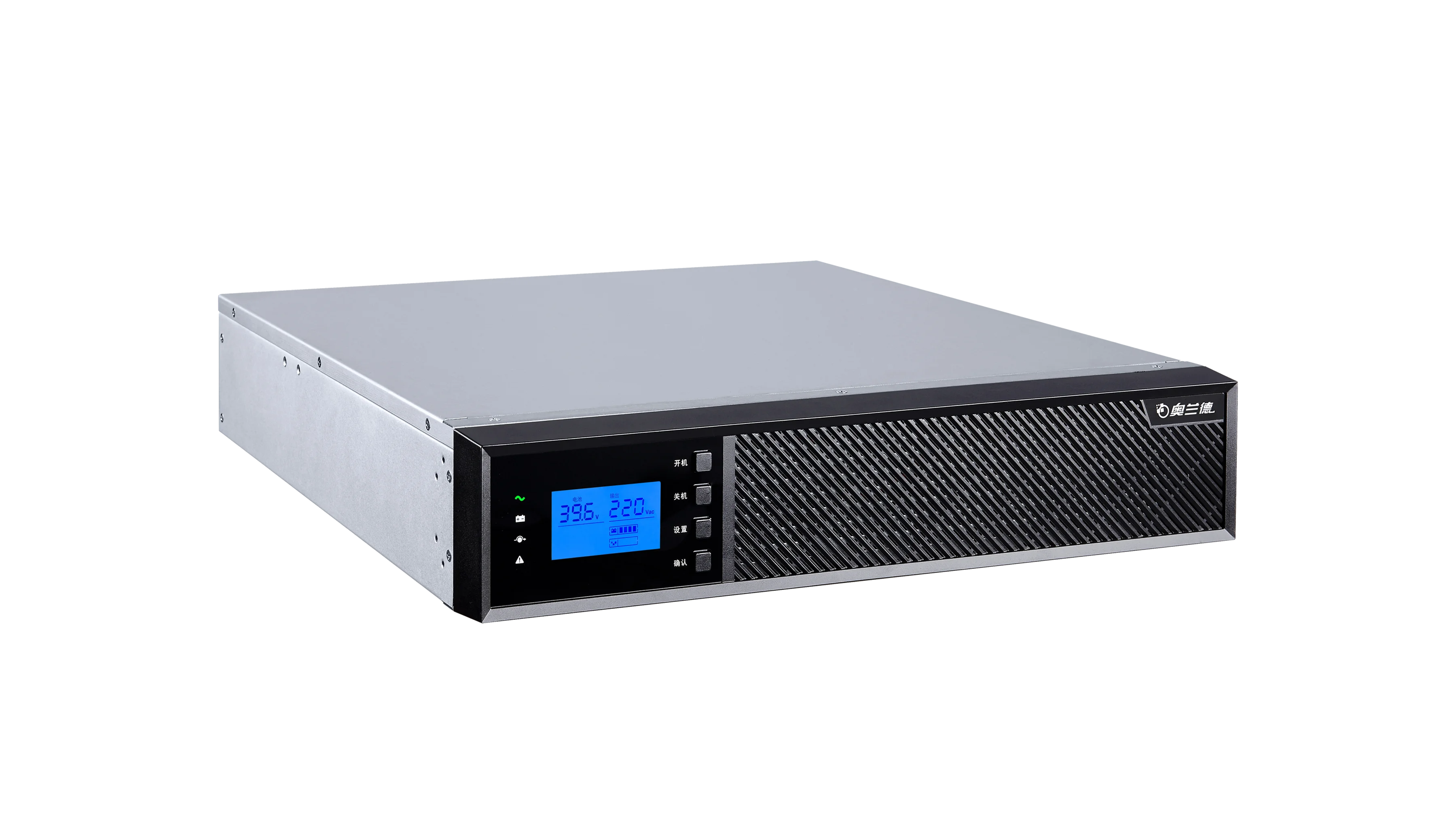

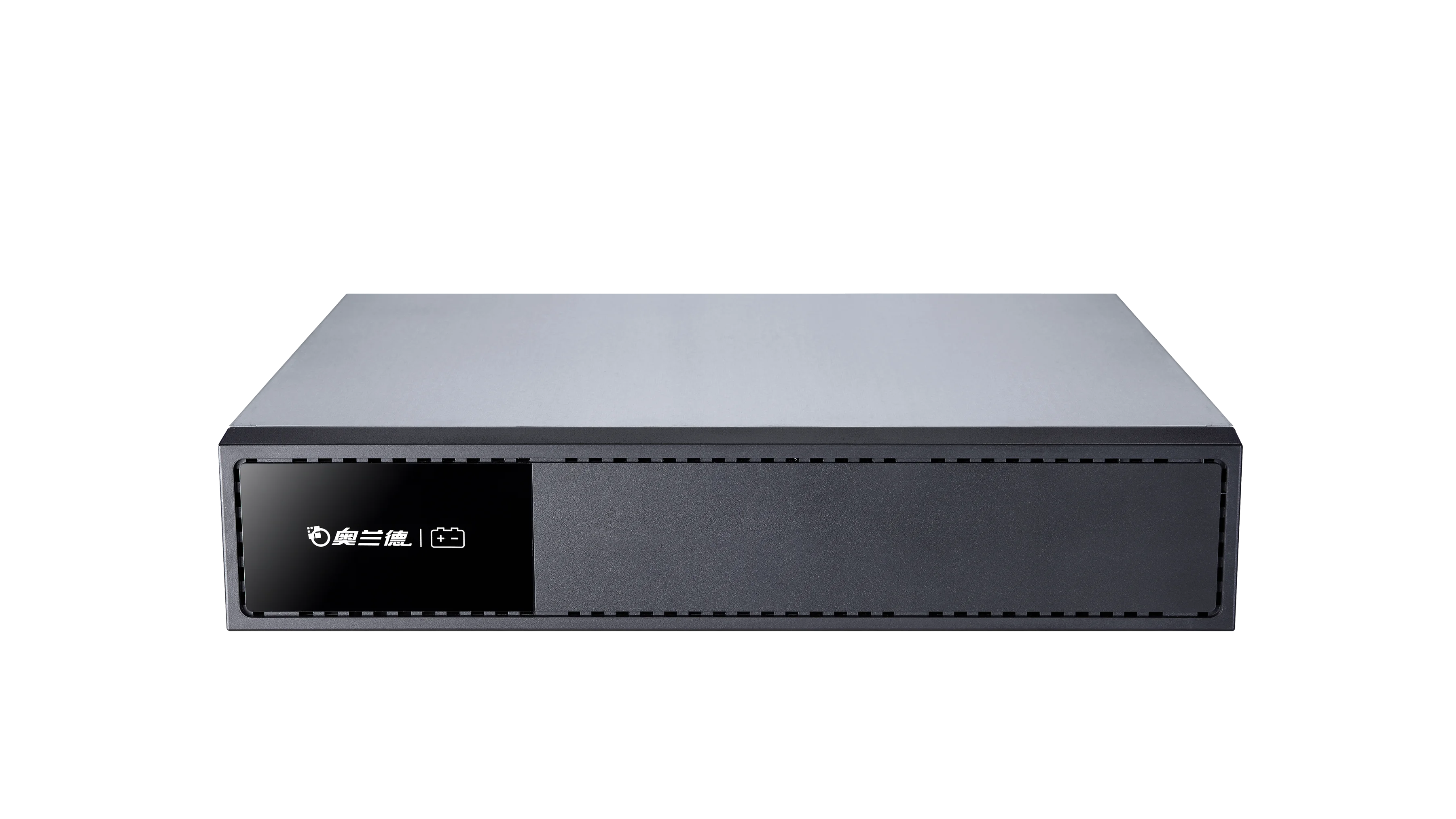

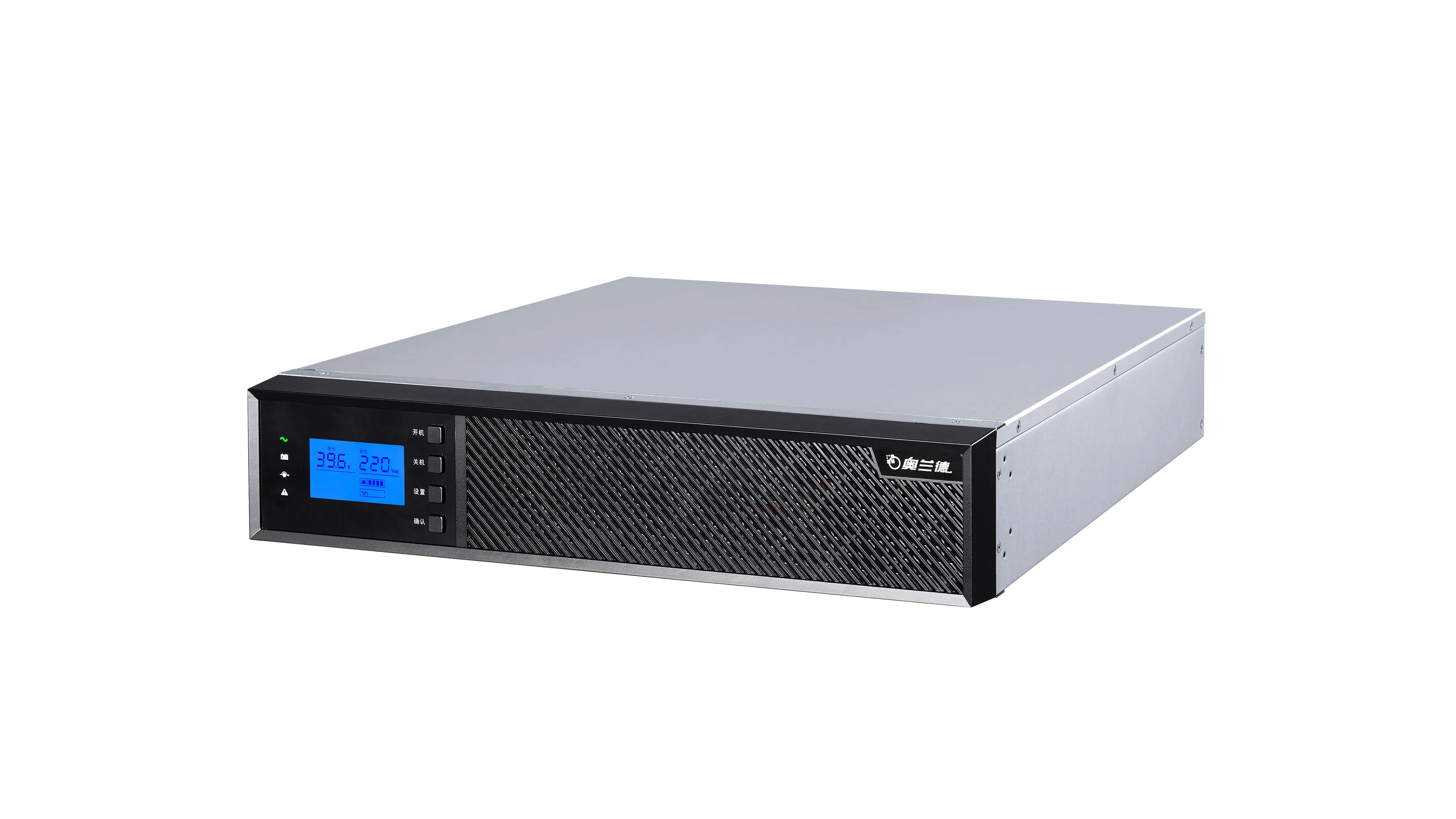

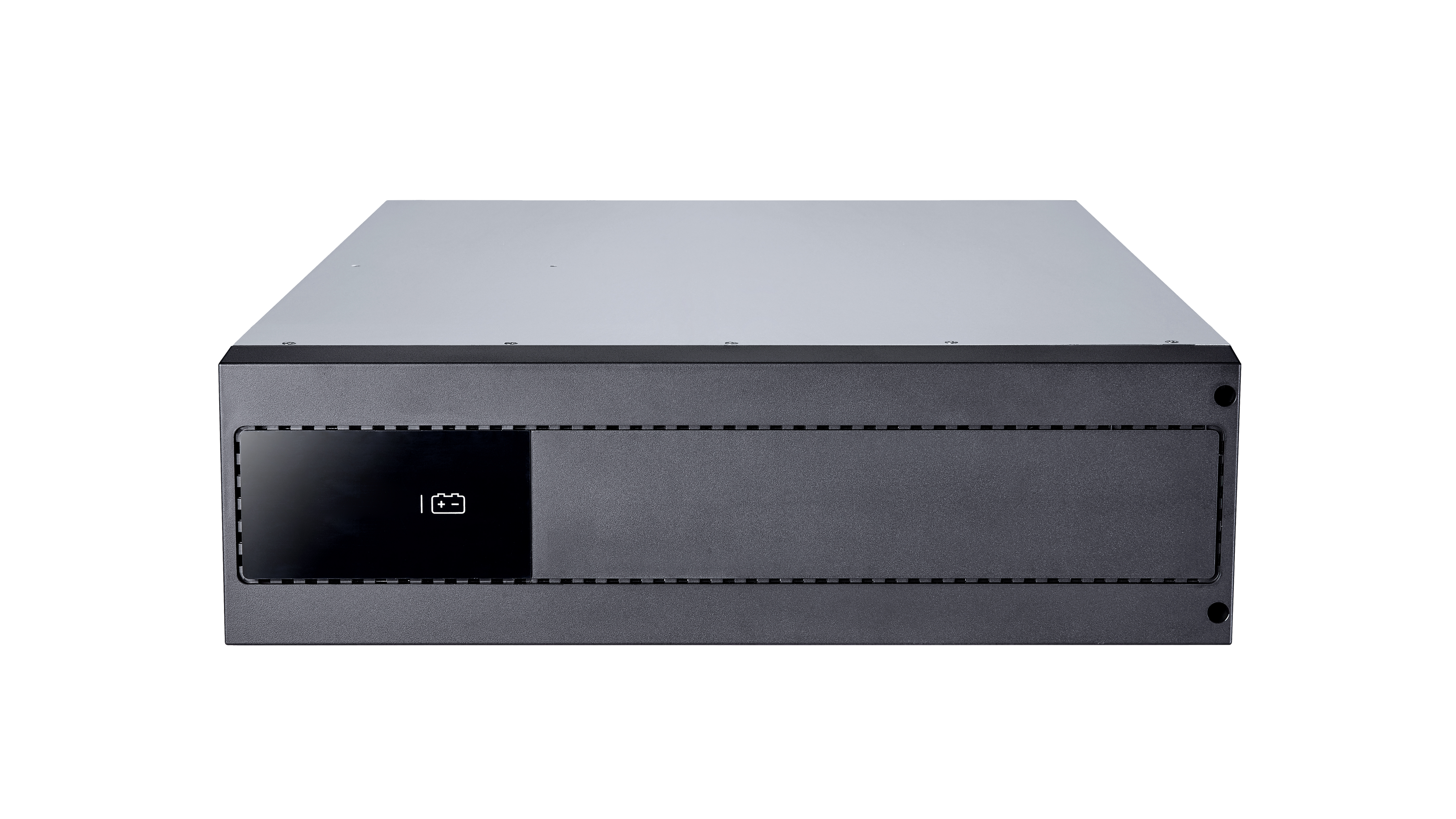

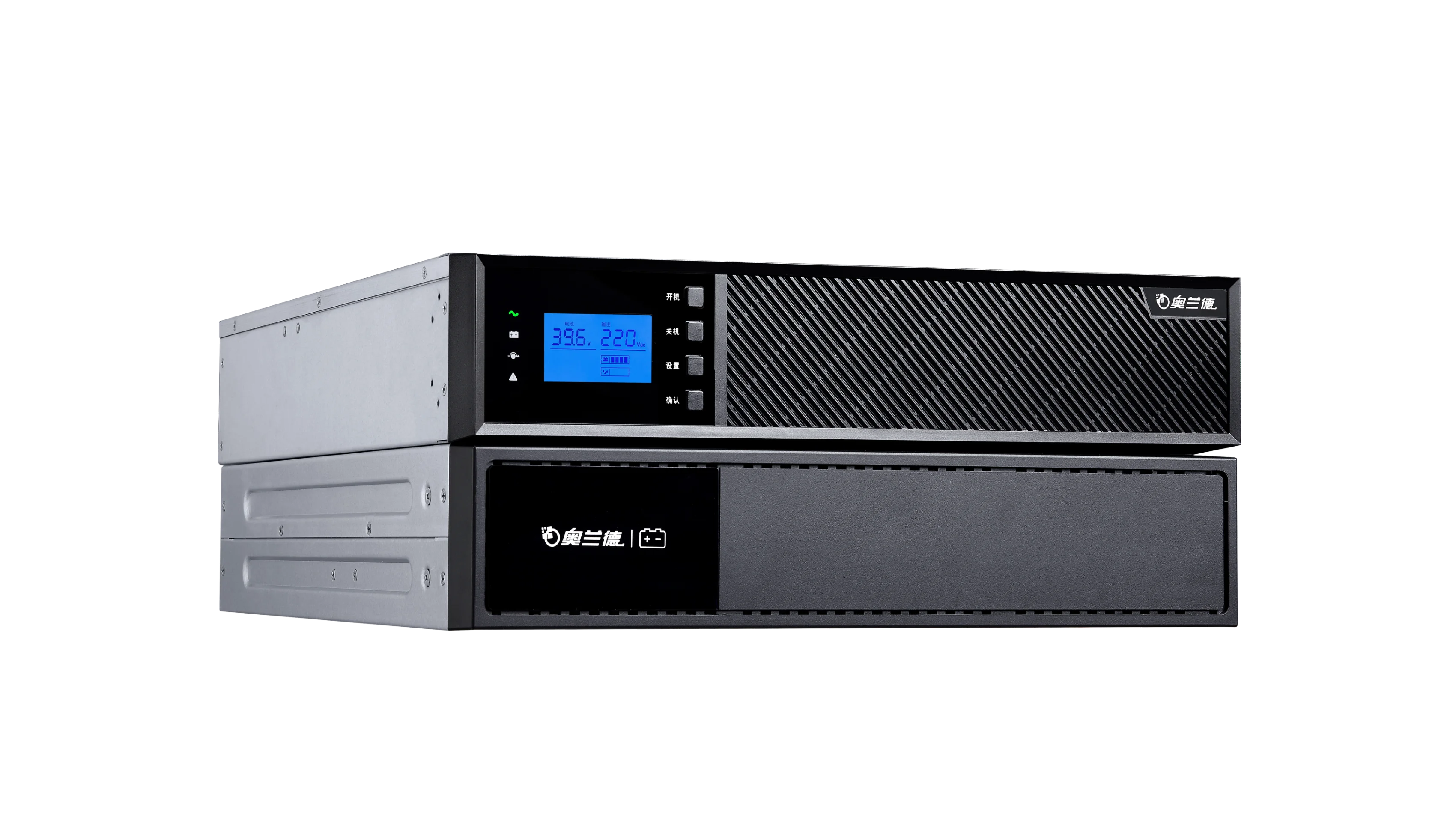

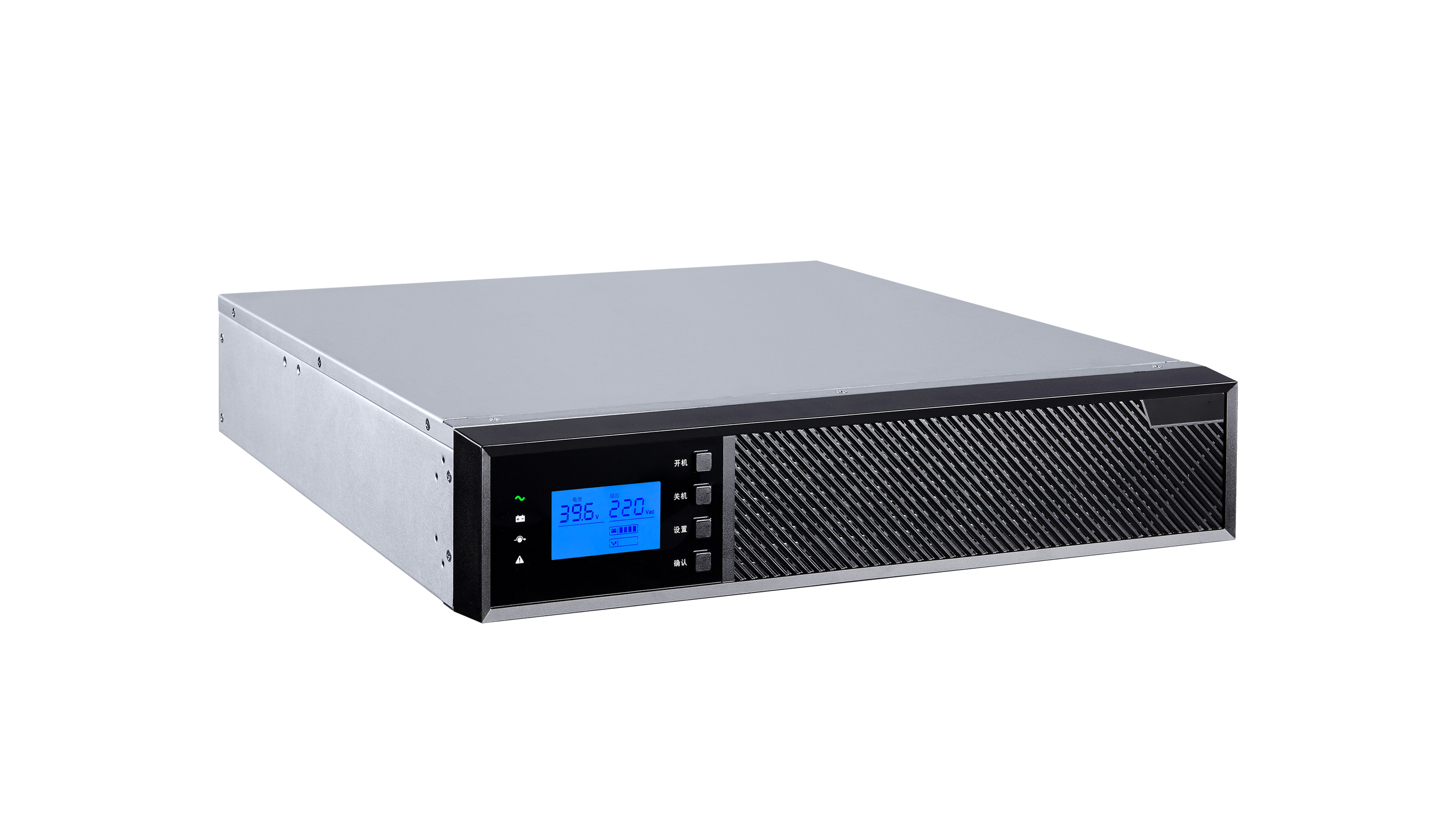

Orland High-Efficiency Uninterruptible Power Supply (UPS) Advanced Power Management Single Phase with Lead Acid Battery supplier

Product Detail

Product Specification			R01	RO1L	R02	RO2L
Rated Power(VA/W)			100OVA/900w			200OVA/1800W
Input	Rated Voltage	208/220/230/240VAC
		Voltage Range	90~300VAC
		Frequency Range	40Hz-70Hz,50/60Hz Self adaptive
		Input Power Factor	0.99,@100%Rated load
Output	Power Factor	0.9
		Rated Voltage	220 VAC
		Voltage Accuracy	±1%
		Frequency Range (Battery Mode)	50/60Hz±0.05Hz
		Overload	1.105%2.130%3.Load>150%±5%,200ms switch to bypass warningâ¤150%,10s
		Total Harmonic Distortion(THDv)	<2%@Linear load
		Waveform	Pure sine wave
Efficiency	Inverter Mode	89%			90%
Battery	Battery Type	VRLA
		Battery Battery Capacity	12V/7Ah	N/A	12V/7Ah	N/A
		Battery Quantity	2	N/A	4	N/A
		Battery Voltage	24VDC	36VDC	48VDC	72VDC
		Charging Current	1A	4A	1A	4A
Control Panel			Chinese LCD+LED+Button+Buzzer
Physical Parameters	Width×Depth×Height(mm)	439.8×428×88
Physical Parameters		Net Weight (Kg)	11.83	7.15	16.8	7.84
Environment	Operating Temperature	-10～40℃
		Relative Humidity	0%~95%,non-condensing
		Noise Level	<55 dB
		Altitude	<5000m(over 2000m derate by 1%linearly per 100m)
Interface	Communication Inteface	StandardRS232,USB
		Card Slot	Standadrd,can have optional Mini NMC/CMC/AS400 card
		EPO/ROO	Standadrd
Standard and Verification	Standard	IEC62040/GB4943/GB 7260
Standard and Verification		Certification	TLC Certification、CQC Energy-saving certification
Service	Product Warranty	Complete product3-year warranty
Service		Costumer service and support	724H365 day

Product Specification			R03	R03L	R06L	R10L
Rated Power(VA/W)			3000VA/2700W			6000VA/5400W	10000VA/9000W
input	Rated Voltage	208/220/230/240VAC
		Voltage Range	90 - 300VAC
		Frequency Range	40Hz - 70Hz, 50/60Hz Serif - adaptive
		Input Power Factor	0.99, @100% Rated load
Output	Output Power Factor	0.9
		Rated Voltage	220 VAC
		Voltage Accuracy	±1%
		Frequency Range(Battery Mode)	50/60Hz ±0.05Hz
		Overload	1. 105%150%±5%, 200ms switch to bypass warningâ¤130%,>			1. 100%2. 105%3. 150%4. 125%â¤150%,>â¤125%,>â¤105%,>



		Total Harmonic Distortion(THDv)	<2% @ Linear load
		waveform	Pure sine wave
Efficiency	Inverter Mode	91%			93%
Battery	Battery Type	VRLA
		Battery Capacity	12V / 9Ah	N/A	N/A	N/A
		Battery Quantity	6	N/A	N/A	N/A
		Battery Voltage	72VDC	72VDC	Default 192 VDC, 240VDC optional
		Charging Current	1A	4A	Default 4A, 2A Optional
Control Panel			Chinese LCD+LED+Button+Buzzer
Physical Parameters	Width×Depth×Height(mm)	439.8×640×88	439.8×428×88	439.8×498×88
Physical Parameters		Net Weight(Kg)	24.71	8.64	10.7	12.5
Environment	Operating Temperature	-10 ~ 40 °C
		Environment Relative Humidity	0% - 95%, non - condensing
		Noise Level	<55 dB			<60 dB
		Altitude	<5000m (over 2000m derate by 1% linearly per 100m)
Interface	Communication Interface	Standard RS232, USB
		Card Slot	Standard, can have optional Mini NMC / CMC / AS400 卡
		EPO/ROO	Standard
Standard and Certification	Standard	IEC 62040 / GB 4943/ GB 7260
Standard and Certification		Certification	TLC Certification、 CQC Energy - saving certification
Service	Product Warranty	Complete product 3 - year warranty
Service		Customer service and support	724H365 day
