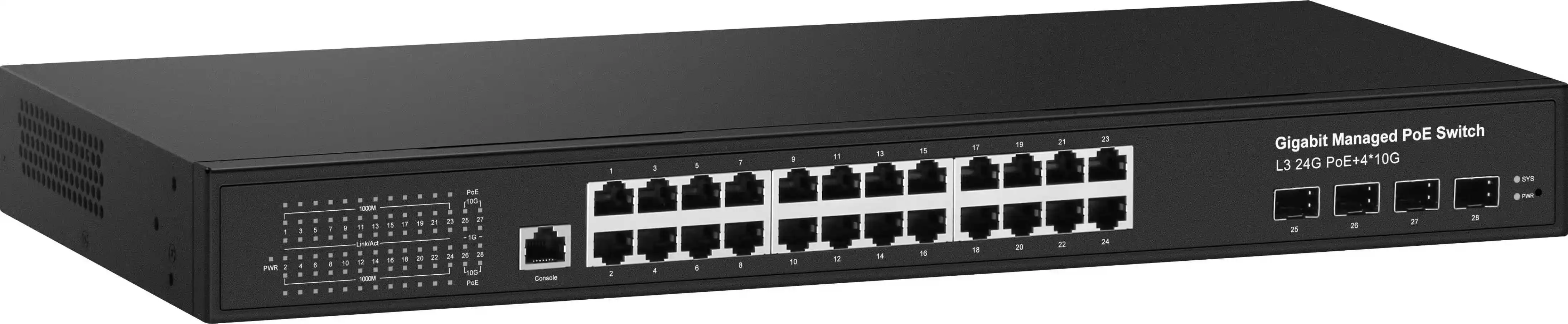

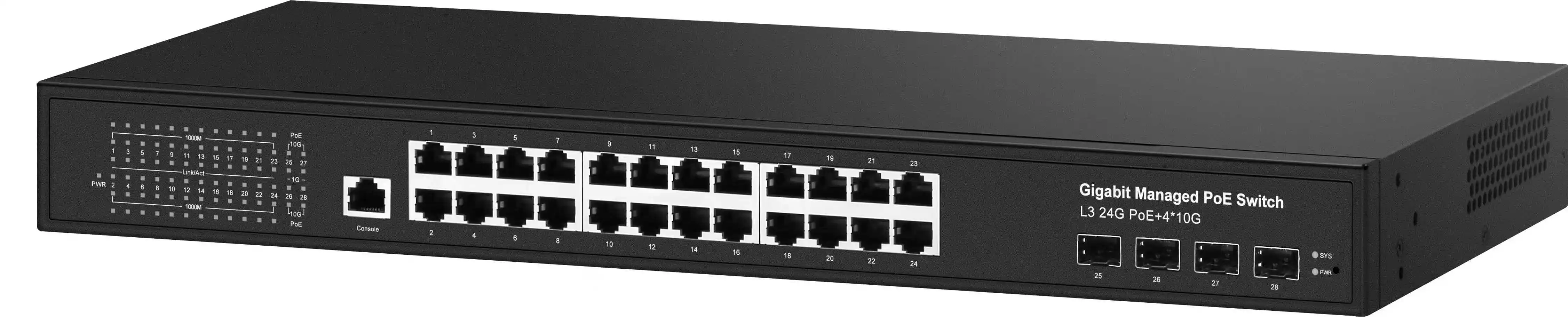

Rack Mount L3 Managed 400W Total PoE 24-Port Gigabit PoE+ Switch with 4x10G SFP+

Rack Mount L3 Managed 400W Total PoE 24-Port Gigabit PoE+ Switch with 4x10G SFP+

Description

[email protected]

Description

Product Description

Product Detail

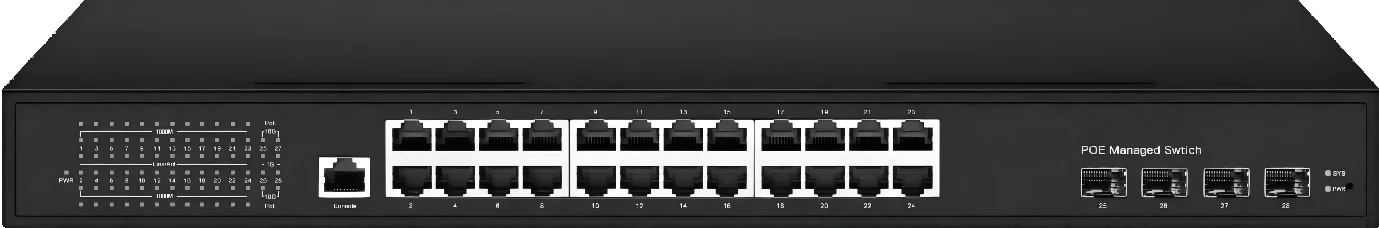

product rack mount l3 managed 400w total poe 24 port gigabit poe switch with 4x10g sfp-2

Introduction

4 Light 24 Power 10000 Megabit Uplink L3 Managed POE Switch

The YW-JT-PS608CL-284TS series is a 10G uplink three-layer managed POE switch independently developed by Nanjing Yoong Win Situation Awareness Technology Co., Ltd. It supports 24 adaptive RJ45 ports (10/100/1000Base-T) and 41/ 10G 10G SFP+ optical ports. Ports 1-24 support IEEE 802.3af/at standard POE power supply, with a single-port POE power output of up to 30W. As a POE-powered device, it can automatically detect and identify compliant powered devices and supply power through network cables. It can power POE terminal devices such as wireless APs, network cameras, network telephones, and video intercom systems via network cables, meeting the needs of high-density POE power supply in
network environments. Suitable for hotels, campuses, and parks. Establish an efficient network covering districts, supermarkets, scenic spots, factory dormitories, and small and medium-sized businesses (SMBs).

Product Features:
Gigabit access, 10 Gigabit uplink
◇ The full series supports the combination of Gigabit Ethernet port and 10 Gigabit optical port, enabling users to flexibly configure networks and meet diverse networking requirements.
◇ All ports support non-blocking line-speed forwarding for smoother transmission.
◇ Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow control.
Intelligent POE power supply function
◇ The 24-port 10/100/1000Base-T RJ45 ports support POE power supply, meeting the needs of POE
powered scenarios such as security surveillance, teleconferencing systems, and wireless coverage.
◇ Complies with IEEE 802.3af/at POE power supply standard, automatically identifies POE devices for power supply, does not damage non-POE devices, the maximum POE output power of the whole machine is 400W, and the maximum POE output power of a single port is 30W.
◇ The POE port features a priority mechanism that ensures high-priority ports receive power first when
remaining capacity is insufficient, preventing equipment overload.
◇ Supports POE network management, enabling configuration of power distribution, priority settings,
port power status checks, and time scheduling for each POE port.

Product model	YW-JT-PS608CL-284TS
Product name	4 light 24 power 10000 megabit uplink L3 managed POE switch
Fixed port	2410/100/1000Base-TX POE ports + 410G SFP+ optical ports
Networking protocol	IEEE 802.3x IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S IEEE 802.3z 1000BASE-X IEEE 802.3af/at STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol









Port characteristics	1-24 ports 10/100/1000BaseT (X) auto-detect, full/half duplex MDI/MDI-X adaptive
POE port	Port 1-24 supports IEEE 802.3af/at standard POE power supply
Forward mode	Store and forward (full line speed)
Backplane bandwidth	598Gbps (non-blocking)
Packet forwarding rate	95.23Mpps
MAC address list	32K
Packet forwarding cache	32M
Twisted pair transmission	10BASE-T ： Cat3,4,5 UTP(≤100 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-T ： Cat5e or later UTP(≤1000 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter)



Optical cable	Multimode: 850nm 0～550M Single mode: 1310nm 0～40KM; 1550nm 0～120KM
Optical cable
Maximum single port / average power	30W/15.4W
Maximum single port / average power	30W/15.4W
Total power / input voltage	MAX 400W （AC100-240V 50/60HZ）
Total power / input voltage	MAX 400W （AC100-240V 50/60HZ）
Total power consumption	Standby power: <25W Full load power: <400W
LED pilot lamp	PWR: Power Indicator (Overpower Indicator)
		SYS: (System indicator light)
		1~24: (POE indicator; 1000M rate indicator; Link Act network connection indicator)
		25~28: (Light port connection indicator)
Power supply	Built-in switching power supply: AC 100-240V,50-60Hz, 1A
Working temperature and humidity	-10 to +55 °C; 5% to 90% RH without condensation
Storage temperature and humidity	-40 to +75 °C; 5% to 95% RH without condensation
Storage temperature and humidity	-40 to +75 °C; 5% to 95% RH without condensation
Product dimensions (LWH)	440mm290mm45mm
Net weight （kg）	3.5kg
Lightning protection/Protection level	Port lightning protection: 3KV 8/20μs; Protection rating: IP30
Lightning protection/Protection level
Safety certification	3C； CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS；
Safety certification
Mean time between failures	>100,000 hours
Mean time between failures	>100,000 hours
Guarantee period	Host for 5 years (excluding adapters and accessories)
software function
Three layer routing characteristic	Supports L3 network management and dual-stack management for IPv4/IPV6
		Supports IPv4 equivalent routing
		Supports IPv4 dynamic routing, RIPv1/v2, OSPFv2, and BGP4+, with 4000 routing entries
		Supports IPv6 dynamic routing for OSPFv3 and BGP+, and IPv6 management for RIPng. Supports up to 1,000 routing entries.
		VRRP supports both IPv4 and IPv6, with a maximum group size of 255.
		Supports IPv6, Telnet v6, TFTP v6, DNS v6, and ICMPv6
		Supports three-layer routing and communication between different network segments and VLANs
		VLANIF interface supporting IPv4/IPV6, each supporting up to 128 interfaces
		Supports IPv4/IPV6 static and default routes, with a maximum of 128 entries per route.
		Supports ARP protocol with up to 1000 entries
		Supports NG protocol with up to 1000 entries
MAC address list	MAC address auto-learning, auto-aging and aging time setting;
		Address table management features including static MAC address configuration, MAC address filtering, and dynamic MAC binding.
		16K MAC address;
VLAN	Supports port-based VLAN
		Supports up to 4096 VLANs
		Supports VoiceVLAN and allows configuring QoS for voice data
		Supports 802. 1Q standard VLAN
STP	Supports Spanning Tree Protocol (STP), RSTP, MSTP, and other protocols.

		Supports EPPS/EAPS and other ring network protocols
		Supports EPPS/EAPS and other ring network protocols
		Supports 802. 1X authentication
QOS	802. 1p Port queue priority algorithm
		Cos/Tos, QoS Label
		WRR (Weighted Round Robin), a weighted priority rotation algorithm
		Supports three priority scheduling modes: WRR, SP, and WFQ
Discovery	Supports LLDP(802. 1ab)
Discovery		Supports LLDP-MED
Administration of networks	A Web-based Graphical User Interface



		CLI Management Based on Telnet,TFTIP and Console
		Supports SNMP V1/V2/V3 management
		Supports RMON V1/V2 management
		Intelligent Configuration Utility
Port aggregation	Supports 14 aggregation groups, with each group supporting up to 8 ports
Port mirroring	Supports bidirectional port mirroring
Loop protection	Supports loop protection with real-time detection, rapid alerts, precise location, intelligent blocking, and automatic recovery
Port isolation	Supports mutual isolation of downstream ports while enabling communication with upstream ports
Port flow control	Semi-duplex based on backpressure control
Port flow control		PAUSE frame based on full duplex
Port rate limiting	Supports port-based I/O bandwidth management
Multicast control	IGMPv1/2/3 and MLDv1/2 Snooping
	IGMPv1/2/3 and MLDv1/2 Snooping
		Support GMRP protocol registration
		Multicast address management, multicast VLAN, multicast routing port, and static multicast address
Ethernet protocol	IEEE 802.3 10BASE-T



		IEEE 802.3u 100BASE-TX/FX
		IEEE 802.3ab 1000BASE-T
		IEEE 802.3x Flow Control
		IEEE 802.1q VLANs/VLAN tagging
		IEEE 802.1p QoS
DHCP	DHCP Snooping
Storm suppression	Storm suppression for unknown unicast, multicast, unknown multicast, and broadcast types
Storm suppression		Storm suppression based on bandwidth adjustment and storm filtering
Security features	Supports client port, IP address, and MAC address
	Supports client port, IP address, and MAC address
		ACL Based on IP and MAC
		Supports the security properties of the number of port-based MAC addresses
System maintenance	Supports upgrade package uploads
	Supports upgrade package uploads
		Support system log view
		Supports web-based factory reset
