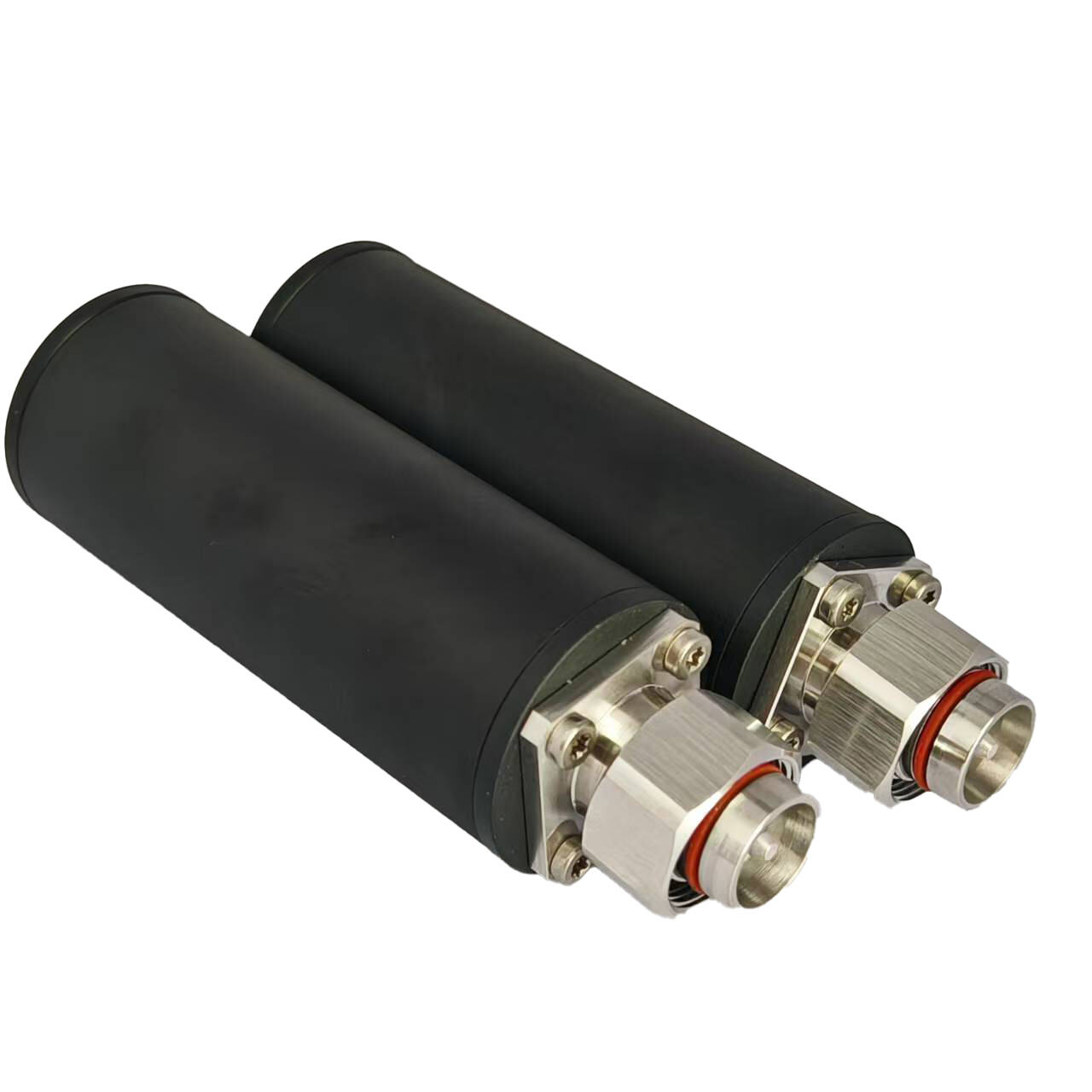

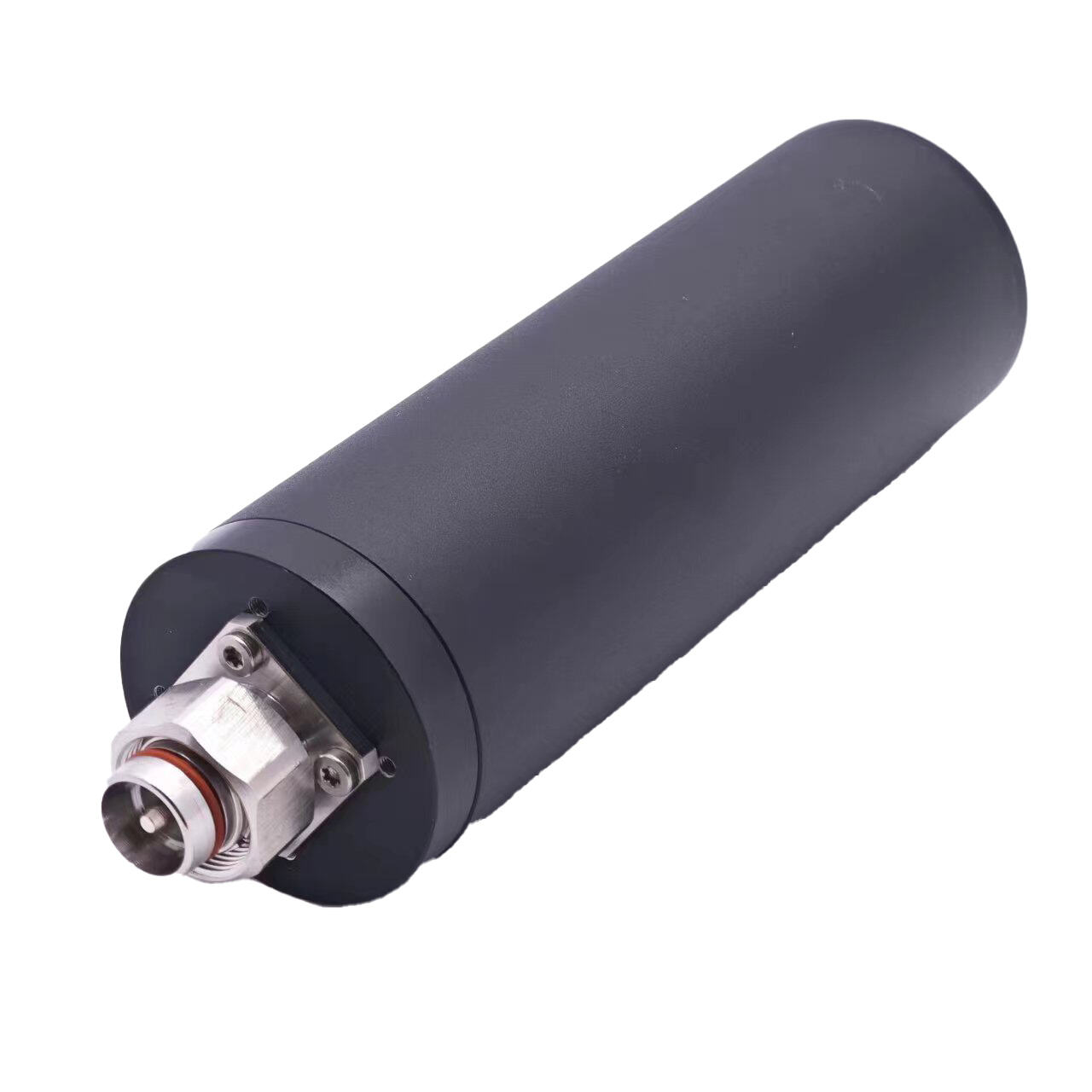

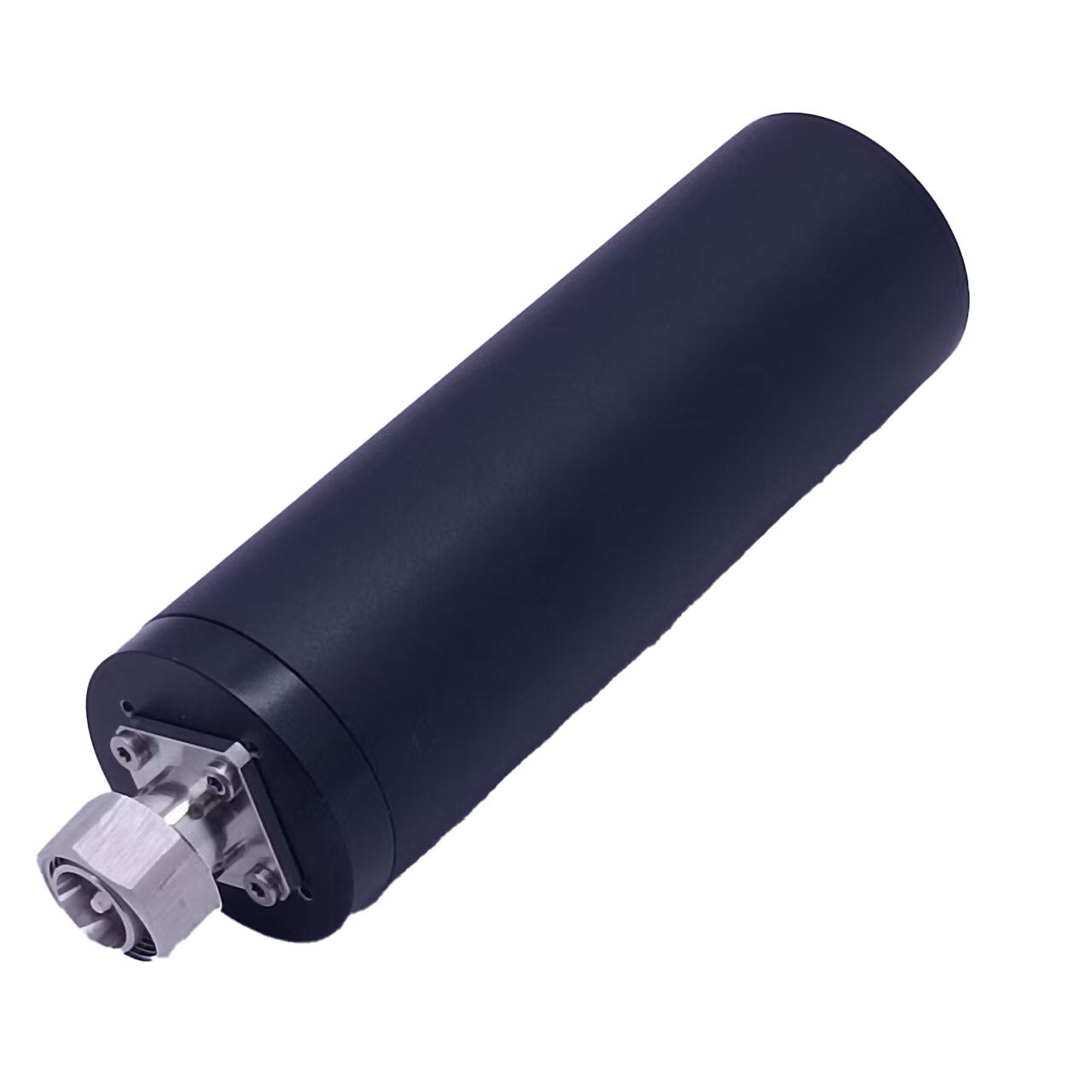

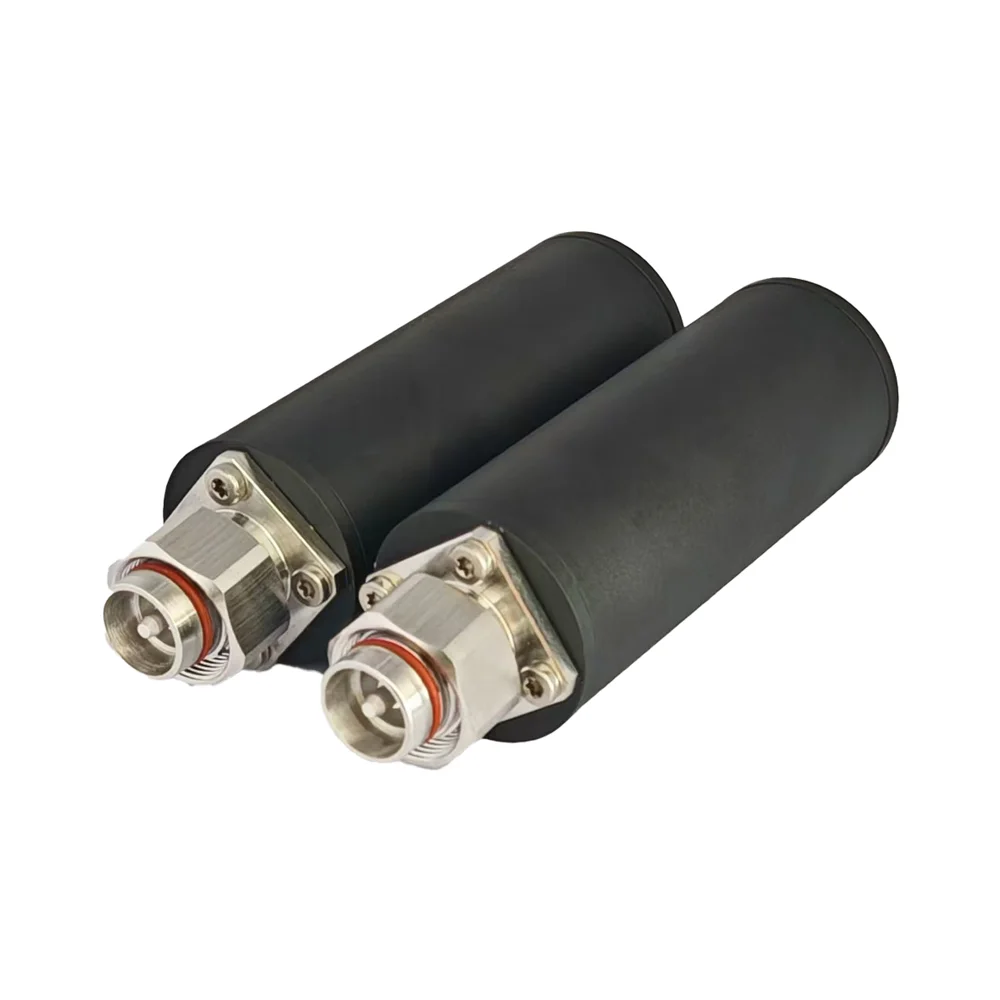

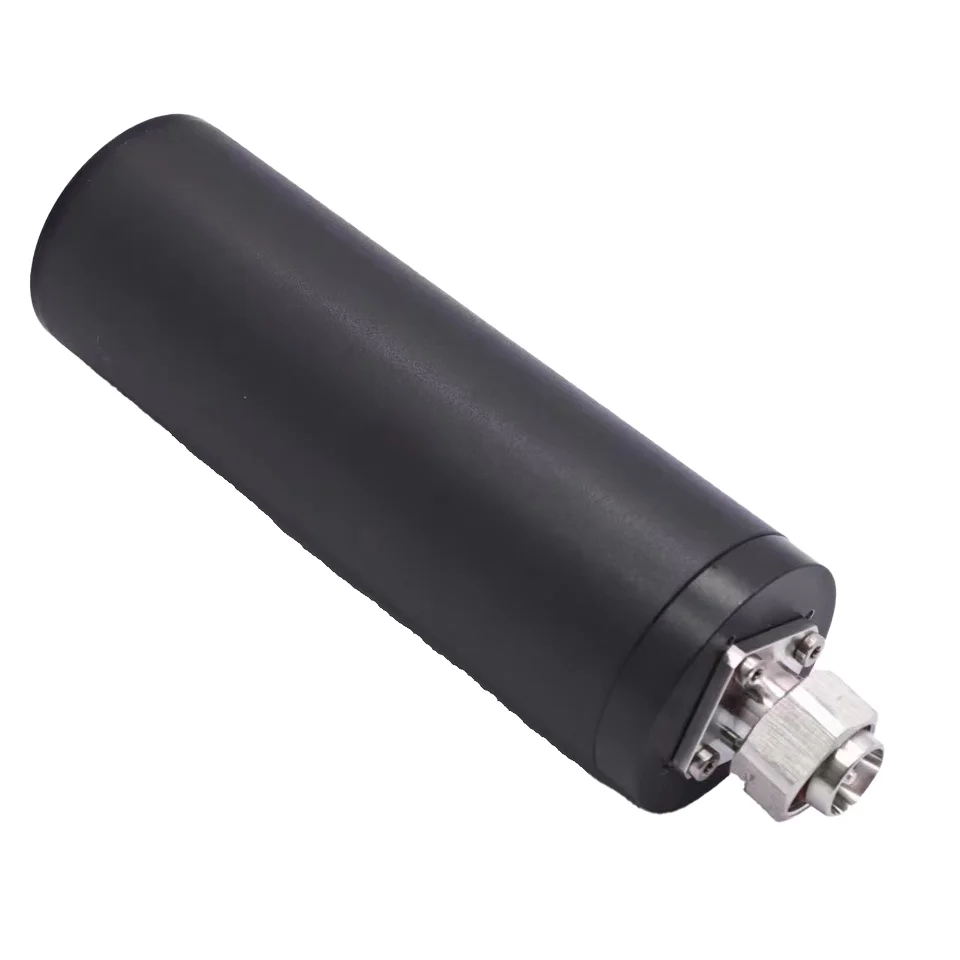

Introducing, the Yoongwin RF Passive Device Low PIM Dummy Load, a high-quality telecom part designed to meet the demands of modern communication systems. This dummy load is perfect for use in a wide range of applications, thanks to its versatile design and durable construction.
With a power rating of 50W and a frequency range of DC 550-4200MHz, this dummy load can handle a variety of signals with ease. Whether you're testing equipment, conducting experiments, or simply need to absorb excess RF energy, this device is up to the task.

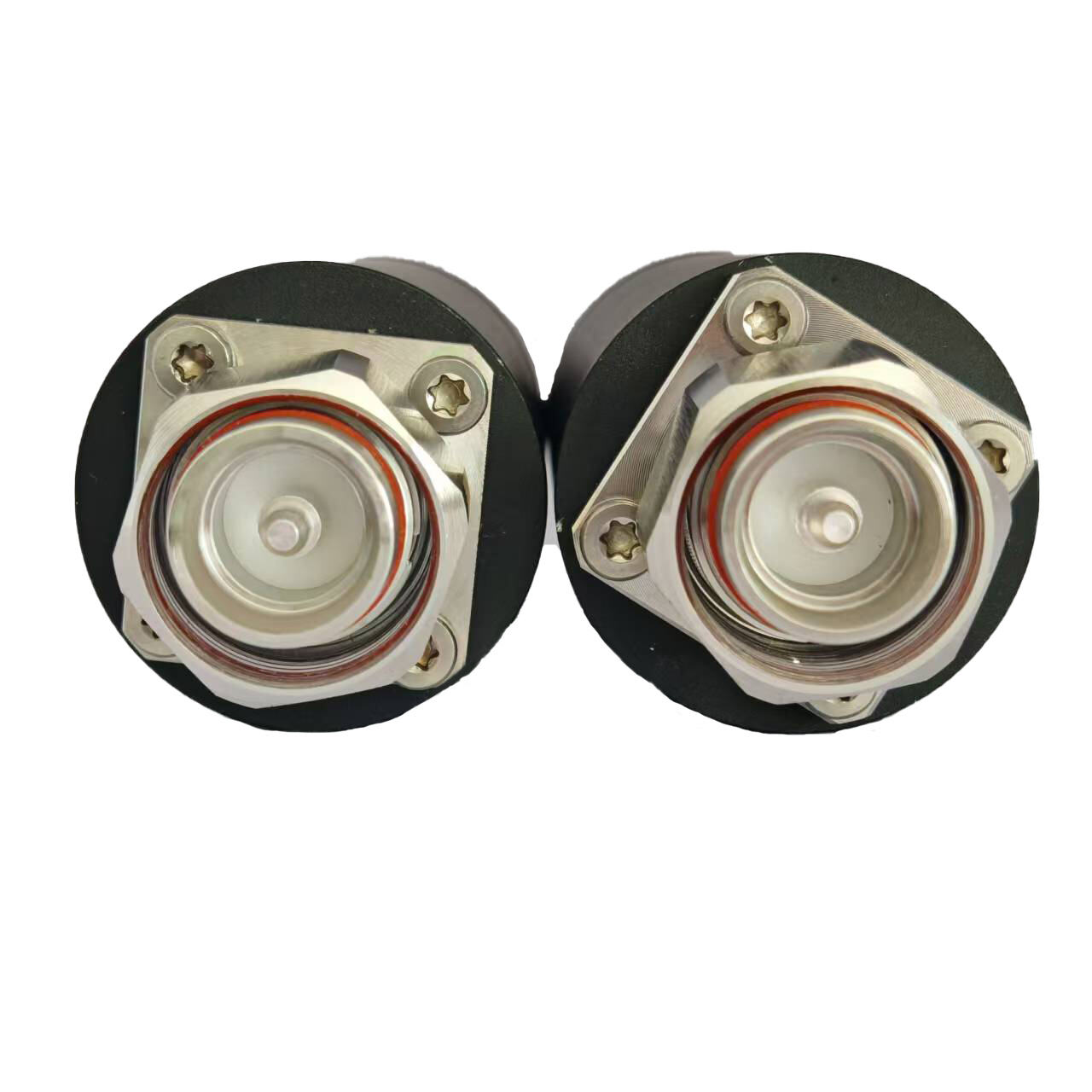

The Yoongwin RF Passive Device Low PIM Dummy Load features a 4.3-10 DIN Female (Male) Connector, making it easy to connect to a variety of devices and systems. This connector is known for its reliability and high performance, ensuring a secure and stable connection every time.
One of the standout features of this dummy load is its low PIM (Passive Intermodulation) rating, which ensures that signals remain clean and interference-free. This makes it ideal for use in high-frequency applications where clarity and precision are essential.
In addition to its technical capabilities, the Yoongwin RF Passive Device Low PIM Dummy Load is built to last. Constructed from high-quality materials, this device is designed to withstand the rigors of daily use and provide years of reliable performance.
Whether you're a professional in the telecommunications industry or a hobbyist looking to expand your knowledge and skills, the Yoongwin RF Passive Device Low PIM Dummy Load is a valuable tool to have in your arsenal. Its versatility, durability, and high-quality construction make it a standout choice for anyone looking to improve their communication systems.
The Yoongwin RF Passive Device Low PIM Dummy Load is a top-tier telecom part that delivers exceptional performance in a compact and easy-to-use package. Trust Yoongwin for all your telecom needs, and experience the difference in quality and reliability that sets this brand apart from the rest
Device Type |

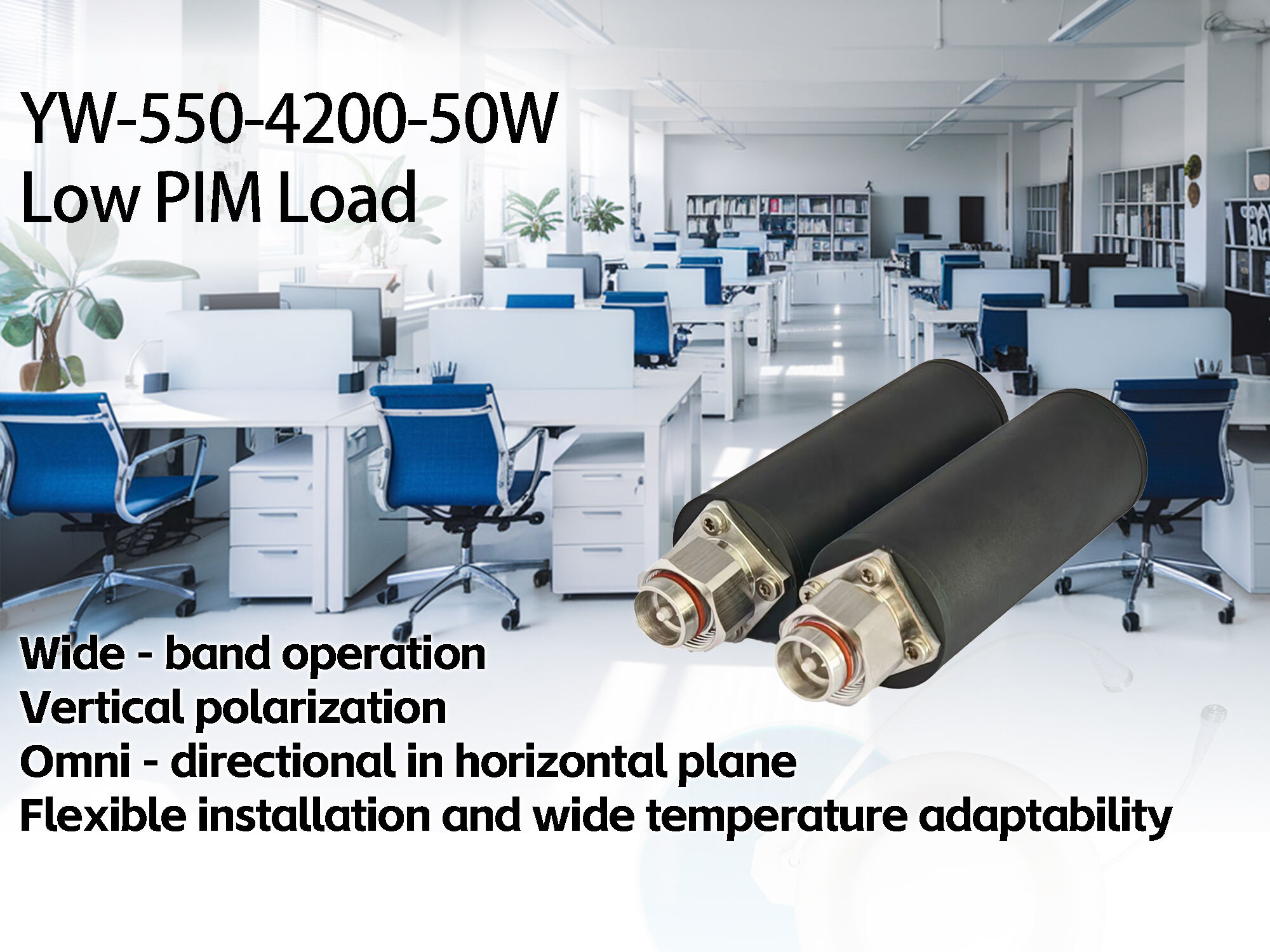

550-4200MHz Low PIM Load 50W |
|
Electrical Specifications |
||
Frequency Range(MHz) |
550-4200 |
|
VSWR |
≤1.25:1 @ 550–2700 MHz | ≤1.3:1 @ 2700–4200 MHz |
|
3rd Order IMD [dBc] (Two +43 dBm carriers) |
≤-161dBc |
|
Average Power[W] |
50W |
|
Peak Power, maximum[W] |
500W |
|
Impedance[Ω] |
50 |
|
Environmental Specifications |
||
Operating Temperature[℃] |
-40°C to +55°C |
|
Relative humidity |
Up to 100% |
|
Waterproof Grade |
IP65 |
|
General Specifications |
||
Application |
Indoor/Outdoor |
|
Color |
Black |
|
Interface |
N, 4.3-10, DIN Female - Male |
|
Packaging and Weights |
||
Size [mm] |
Φ50×150mm |
|
Weight, [ Kg] |
≤1.0Kg |
|
