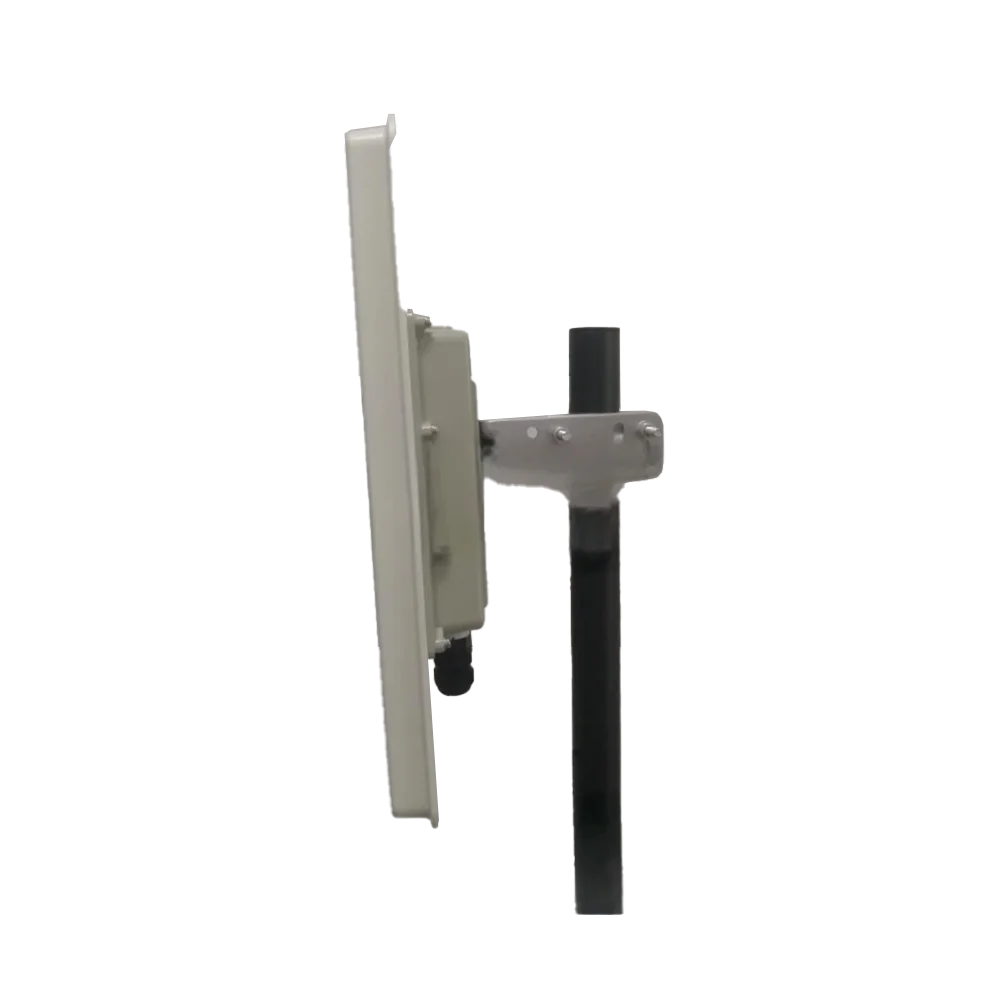

Product Name |
Sector-Directed Panel Antenna |
|
Electrical Index |
YW-DB58-90VH18CE |
|
Frequency Range (MHz) |
5150–5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
18 |
|
Electrical Down-tilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 90 |
|
Vertical: 4.5 |
||
Port Isolation (dB) |
≥28 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2.5 |
|
Maximum Power (W) |
20 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Index |
||
Connector Type |
2×MMCX Right-angle or as Specified by User |
|
Lead Wire Length |
10cm or as Specified by User |
|
Antenna Dimensions (L×W×T: mm) |
700×140×30 (Excluding Back Cavity) |
|
Back Cavity Dimensions (L×W×T: mm) |
185×105×30 (Internal Net Dimensions) |
|
Back Cavity Interfaces |
1×PG16 + 1×N-Type (Expandable to 3 at Maximum) |
|
Optional RJ45 Waterproof Jumper |
||
Antenna Weight (kg) |
Approximately 3 |
|
Radome Material |
ABS |
|
Radome Color |
White |
|
Back Cavity Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0–20 |
|
Operating Temperature (℃) |
–40–60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35–50 |
|
Mounting Part Model |
MK004 L-type Steel Clamp |
|
