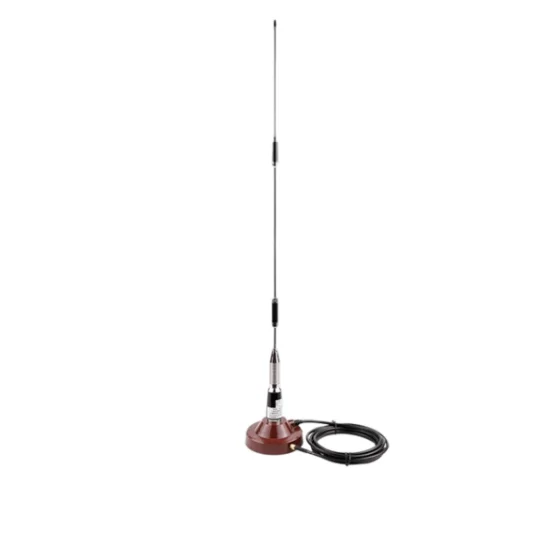

Vehicle-Mounted Communication Antenna for Professional Mobile Radio

Vehicle-Mounted Communication Antenna for Professional Mobile Radio

Description

[email protected]

Description

Product Description

1. Exceptional Signal Efficiency with Low VSWR
Features a voltage standing wave ratio of <1.5, ensuring maximum power transfer and minimal signal reflection for superior communication quality.

2. True 360° Omnidirectional Coverage
Delivers consistent all-around horizontal reception, ideal for vehicles operating in dynamic and unpredictable environments.

3. Dual Connector Design for Flexible Integration
Equipped with both SL16-J (antenna end) and N-J (cable end) connectors, offering compatibility with a wide range of radio systems and easy installation.

4. Lightweight & Compact for Easy Vehicle Deployment
Weighs only 170g (excluding base) with a height of 905mm, designed for low visual impact and minimal vehicle load while maintaining robust performance.

5. Built for Extreme Environmental Conditions
Operates reliably in temperatures from -40°C to +60°C, making it suitable for use in virtually all climate zones and harsh outdoor settings.

Product Detail

Electrical Indicators
Frequency Range - MHz	376 ~ 389
Bandwidth - MHz	13
Polarization Mode	Vertical
Voltage Standing Wave Ratio	< 1.5
Gain - dBi	5.5
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	30
Maximum Power - W	100
Input Impedance - Ω	50
Ground Protection	DC
Mechanical Parameters
Connector Type (Antenna End)	SL16 - J
Connector Type (Cable End)	N - J
Cable Specification	SYV - 50 - 3
Cable Length - m	3
Operating Temperature - ℃	- 40 ~ +60
Antenna Height (Excluding M90 Base, mm)	905 (slightly varies with frequency band)
Antenna Weight (Excluding M90 Base, g)	170 (slightly varies with frequency band)
