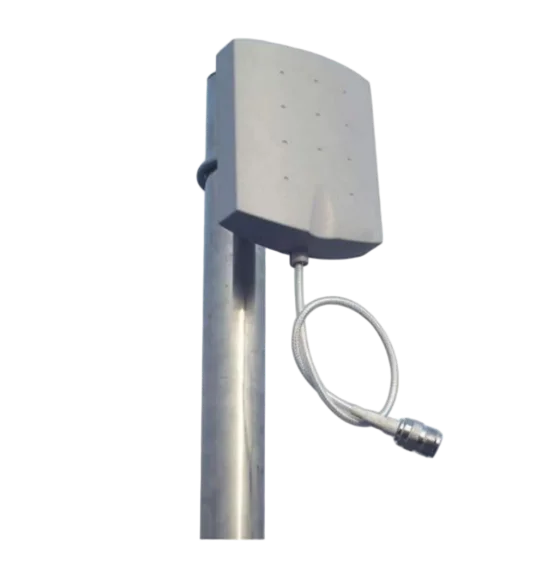

5150～5850MHz 60°9dBi 0° Electrical Downtilt |
||
Electrical Specifications |
DF58-60VH09A |
|
Frequency Range (MHz) |
5150～5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
9 |
|
Electrical Downtilt (°) |
0 |
|
Half-power Beamwidth (°) |
Horizontal: 60 |
|
Vertical: 55 |
||
Port Isolation (dB) |
≥20 |
|
Front-to-Back Ratio (dB) |
≥20 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio |
≤2 |
|
Maximum Power (W) |
50 |
|
Mechanical & Environmental Specifications |
Mechanical & Environmental Specifications |
|
Connector Type |
2×N Female or as specified by customer |
|
Lead Length |
10cm or as specified by customer |
|
Antenna Dimensions (Length×Width×Thickness: mm) |
125×97×30 |
|
Antenna Weight (kg) |
0.3 |
|
Radome Material |
ABS |
|
Radome Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0～20 |
|
Operating Temperature (℃) |
-40～60 |
|
Extreme Wind Speed (m/s) |
60 |
|

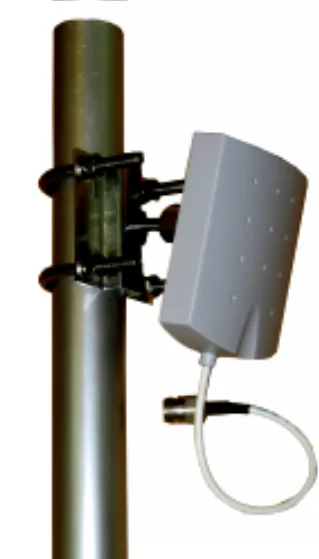

Mast Diameter (mm) |
35～75 |
|
Mounting Bracket Model |
MK001 Universal Clamp |
|
