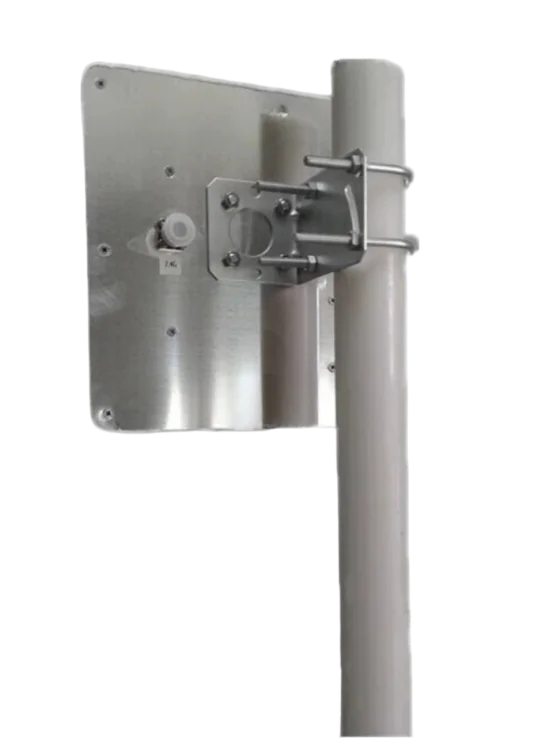

Product Name |
4x4 MIMO Antenna |
|||
Electrical Specifications |
M4D2458C-30VH13C |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5925 |
||
Polarization |
2×Vertical + 2×Horizontal |
|||
Gain (dBi) |
13 |
|||
Electrical Down-tilt (°) |
/ |
|||
Half Power Beamwidth (°) |
H-plane: 32 |
H-plane: 30 |
||
V-plane: 30 |
V-plane: 30 |
|||
Isolation (dB) |
≥20 |
≥25 |
||
Front-to-Back Ratio (dB) |
≥20 |
|||
Input Impedance (Ω) |
50 |
|||
VSWR |
≤2 |
|||
Maximum Power (W) |
50 |
|||
Mechanical & Environmental Specifications |
||||
Connector Type |
4×N Female |
|||
Connector Position |
Rear |
|||
Antenna Dimensions (L×W×H: mm) |
380×380×33 |
|||
Antenna Weight (kg) |
Approximately 2 |
|||

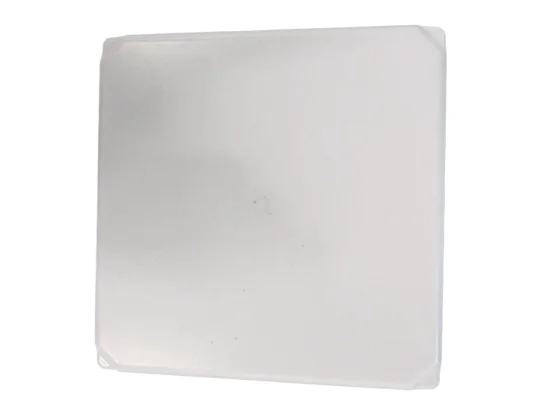

Radome Material |
ABS |
|||
Radome Color |
White |
|||
Mechanical Adjustable Tilt (°) |
0～30 |
|||
Operating Temperature (℃) |
-40～60 |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Pole Diameter (mm) |
35～50 |
|||

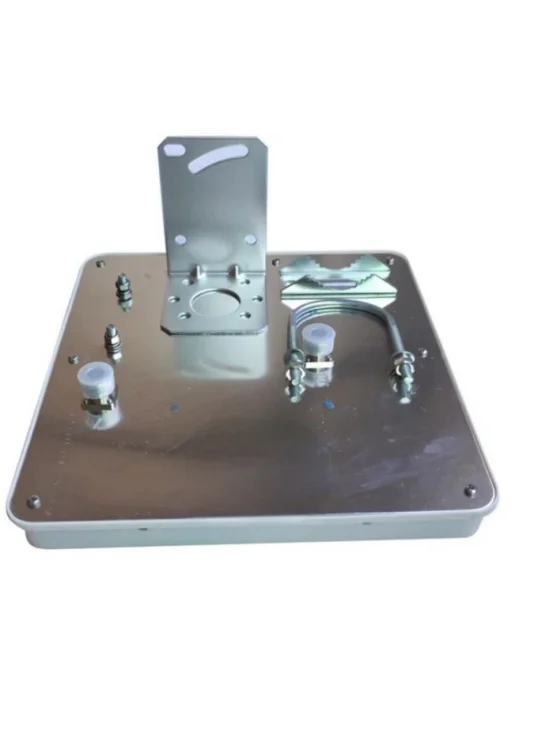

Mounting Part Model |
MK004 L-shaped Steel Clamp |
|||
