DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor
DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor

DC 500V-1000V 3A-3000A Soft Connection Cable Reactor Made in China Smoothing Reactor Dc Reactor

Get a Quote Contact Us
  • Description
product dc 500v 1000v 3a 3000a soft connection cable reactor made in china smoothing reactor dc reactor-1

[email protected]
Inquiry
Product Description
Product Detail
Rated voltage
DC500V - DC1000V
Rated current
3A~3000A
Withstand voltage
3000V
Insulation Resistance
≥100MΩ
Noise level
<65dB
Protection level
IP00
Insulation class
F/H class
Dielectric strength
Core to winding 3000VAC/50HZ/5MA/10S no arc
Execution standards
GB19212.1 - 2008 GB19212.21 - 20071094.6 - 2011

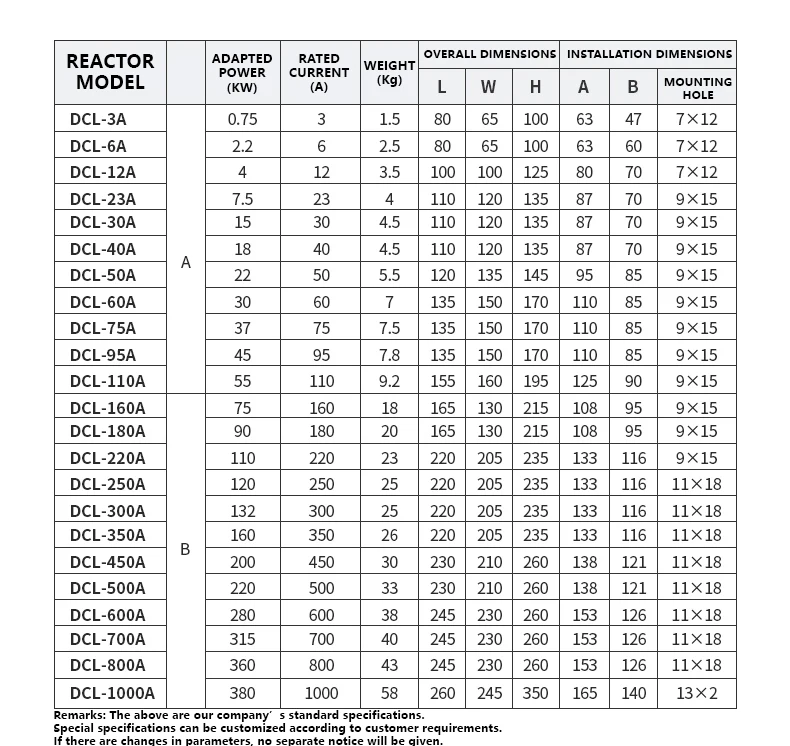

REACTOR MODEL
ADAPTED POWER
(KW)
RATED CURRENT
(A)
WEIGHT
(Kg)

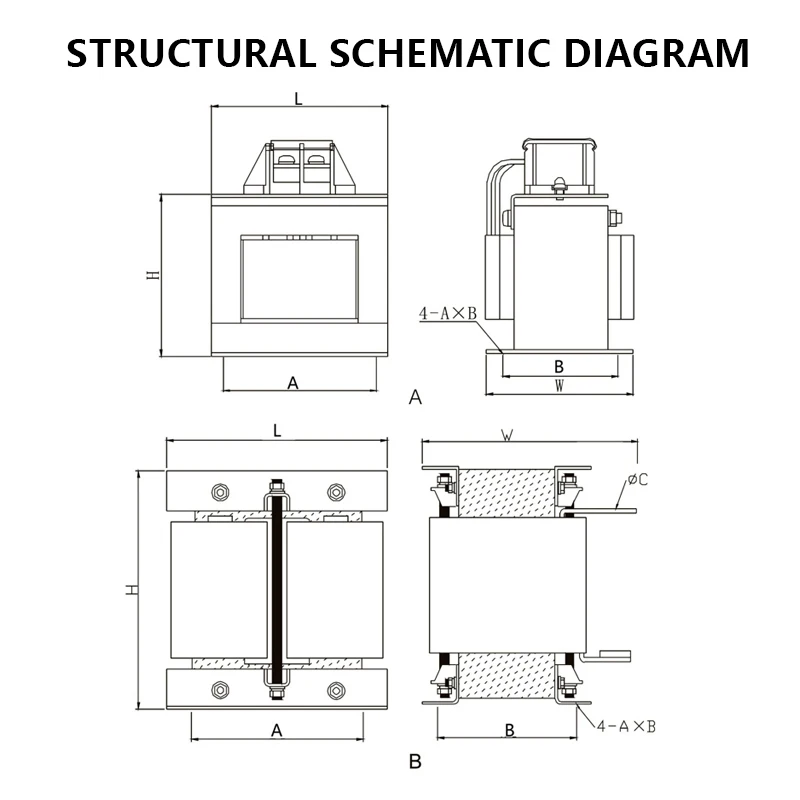

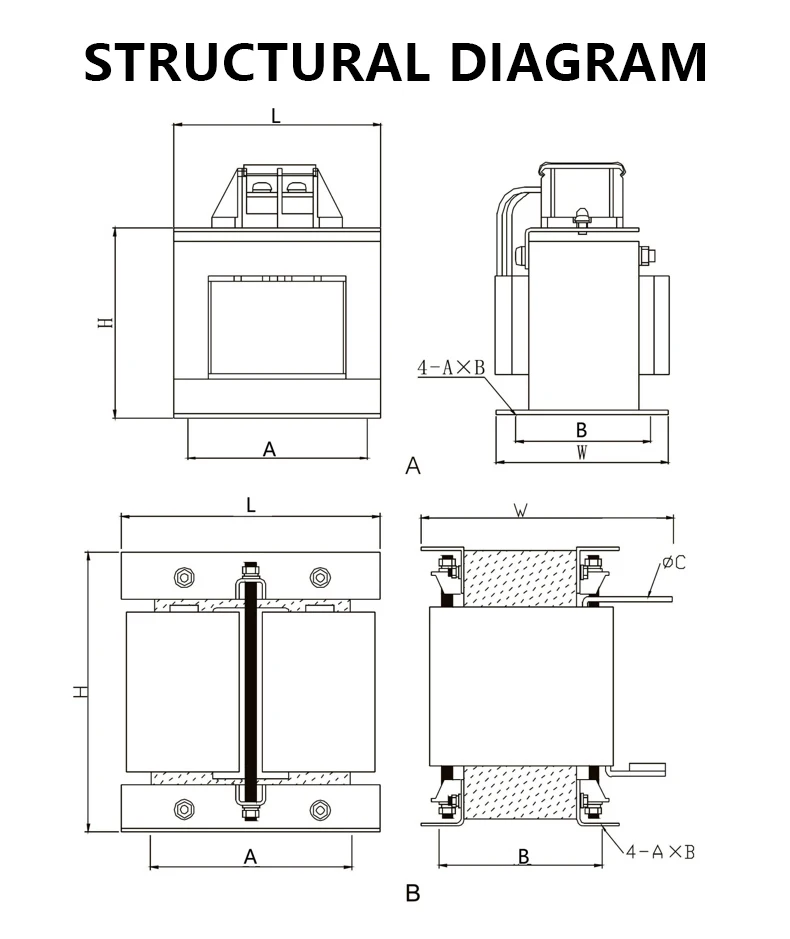

OVERALL DIMENSIONS
INSTALLATION DIMENSIONS
L
W
H
A
B
MOUNTING HOLE
DCL-3A
0.75
3
1.5
80
65
100
63
47
7×12
DCL-6A
2.2
6
2.5
80
65
100
63
60
7×12
DCL-12A
4
12
3.5
100
100
125
80
70
7×12
DCL-23A
7.5
23
4
110
120
135
87
70
9×15
DCL-30A
15
30
4.5
110
120
135
87
70
9×15
DCL-40A
A
18
40
4.5
110
120
135
87
9×15
DCL-50A
22
50
5.5
120
135
145
95
85
9×15
DCL-60A
30
60
7
135
150
170
110
85
9×15
DCL-75A
37
75
7.5
135
150
170
110
85
9×15
DCL-95A
45
95
7.8
135
150
170
110
85
9×15
DCL-110A
55
110
9.2
155
160
195
125
90
9×15
DCL-160A
75
160
18
165
130
215
108
95
9×15
DCL-180A
90
180
20
165
130
215
108
95
9×15
DCL-220A
110
220
23
220
205
235
133
116
9×15
DCL-250A
120
250
25
220
205
235
133
116
11×18
DCL-300A
132
300
25
220
205
235
133
116
11×18
DCL-350A
B
160
350
26
220
205
235
133
11×18
DCL-450A
200
450
30
230
210
260
138
121
11×18
DCL-500A
220
500
33
230
210
260
138
121
11×18
DCL-600A
280
600
38
245
230
260
153
126
11×18
DCL-700A
315
700
40
245
230
260
153
126
11×18
DCL-800A
360
800
43
245
230
260
153
126
11×18
DCL-1000A
380
1000
58
260
245
350
165
140
13×2
