Hardware |
||
CPU |
1.3GHz Dual-core MT7981B |
|
RAM |
DDR4 1GB |
|
Flash |
eMMC 8GB |
|
Ethernet |
One(1) 2.5Gbps WAN Ethernet Port Three(3) 1Gbps LAN Ethernet Ports |
|
Wireless Technology |
802.11b/g/n 300Mbps MIMO Technology |
|
Interfaces |
One(1) Power Adapter Port Two(2) Nano SIM Slots One(1) USB-C Debug Port |
|
Buttons |

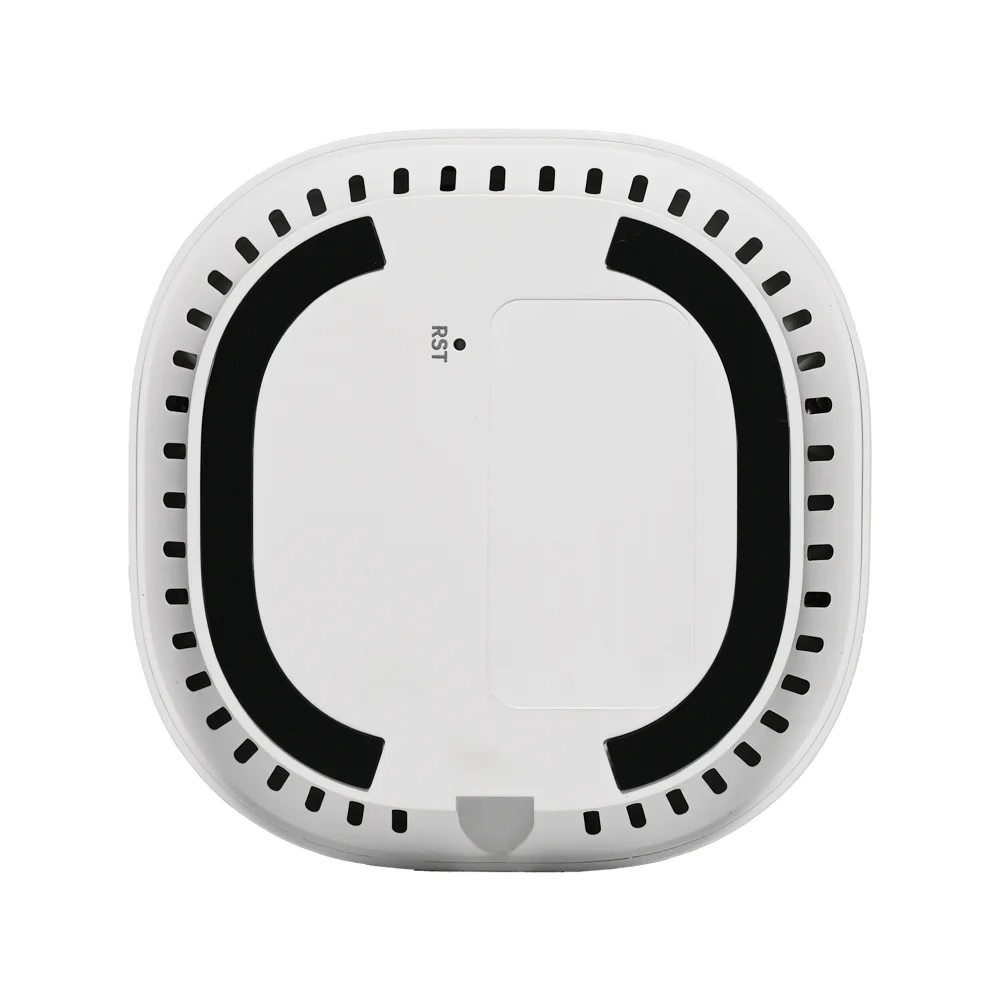

One(1) WPS Button One(1) Power Button One(1) Reset Button |
|
LED Indicators |

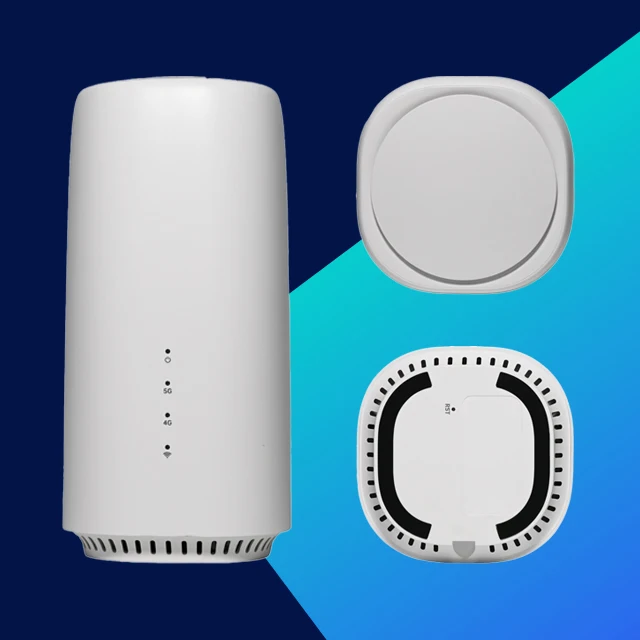

One(1) System indicator One(1) 5G indicator One(1) 4G indicator One(1) WiFi indicator |
|
Antennas |
Built-in 5G/LTE primary antenna Built-in 5G/LTE secondary antenna Built-in Wi-Fi 2.4GHz/5GHz antennas |
|
Operating Environment |
0~40°C, 10%～90% non-condensing |
|
Storage Environment |
-40~70°C, 5%～95% non-condensing |
|
Physical Size |
100*100*200 mm |
|
Weight |
750g |
|
Power Supply |
12V/1.5A |
|
Wi-Fi |
||||
Standards |
2.4GHz |
IEEE 802.11b/g/n/ax |
||
5GHz |
IEEE 802.11a/n/ac/ax |
|||
Supported Rates |
802.11b |
1/2/5.5/11Mbps |
||
802.11a/g |
6/9/12/18/24/36/48/54Mbps |
|||
802.11n |
MCS0~7 |
|||
802.11ac |
MCS0~11 |
|||
802.11ax |
MCS0~11 |
|||
2.4GHz |
Peak PHY Rates |
574Mbps |
||
Channels |
Ch1~13 |
|||
Spatial Streams |
2T2R |
|||
Channelization |
20/40/80MHz |
|||
Client Capacity |
256 |
|||
5GHz |
Peak PHY Rates |
2402Mbps |
||
Channels |
Ch36~64, 100-144, 149~165 |
|||
Spatial Streams |
2T3R |
|||
Channelization |
20/40/80/160MHz |
|||
Client Capacity |
256 |
|||
Celluar |
||||
Module |
Model |
RM520-GL |
||
Area |
Global |
|||
Chipset |
Qualcomm Snapdragon SDX62 |
|||
5G NR |
5G NR |
3GPP Release 16 NSA/SA operation, Sub-6 GHz |
||
Sub-6 NSA Band |
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/39/30/38/40/41/48/66/70/71/75/76/77/78/79 |
|||
Sub-6 SA Band |
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/39/30/38/40/41/48/66/70/71/75/76/77/78/79 |
|||
Max. Sub-6 BW |
120MHz |
|||
Sub-6 CA |
FDD+FDD,TDD+TDD,FDD+TDD DL2CA/UL 2CA |
|||
DL 4x4 MIMO |
n1/2/3/5/7/25/30/38/40/48/66/70/77/78/79 |
|||
UL 2x2 MIMO |
n38/41/48/77/78/79 |
|||
LTE |
LTE Category |
DL Cat19 / UL Cat18 |
||
LTE-FDD Band |
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 |
|||
LTE-TDD Band |
B34/38/39/40/41/42/43/48 |
|||
LTE LAA Band |
B46 |
|||
DL 4x4 MIMO |
B1/2/3/4/7/25/30/38/40/41/42/43/48/66 |
|||
UMTS |
WCDMA Band |
B1/2/4/5/8/19 |
||
Max. PHY Rates |
5G SA Sub-6 Max. |
DL 2.4 Gbps; UL 900 Mbps |
||
5G NSA Sub-6 Max. |
DL 3.4 Gbps; UL 550 Mbps |
|||
LTE Max. |
DL 1.6 Gbps; UL 200 Mbps |
|||
WCDMA Max. |
DL 42 Mbps; UL 5.76 Mbps |
|||
