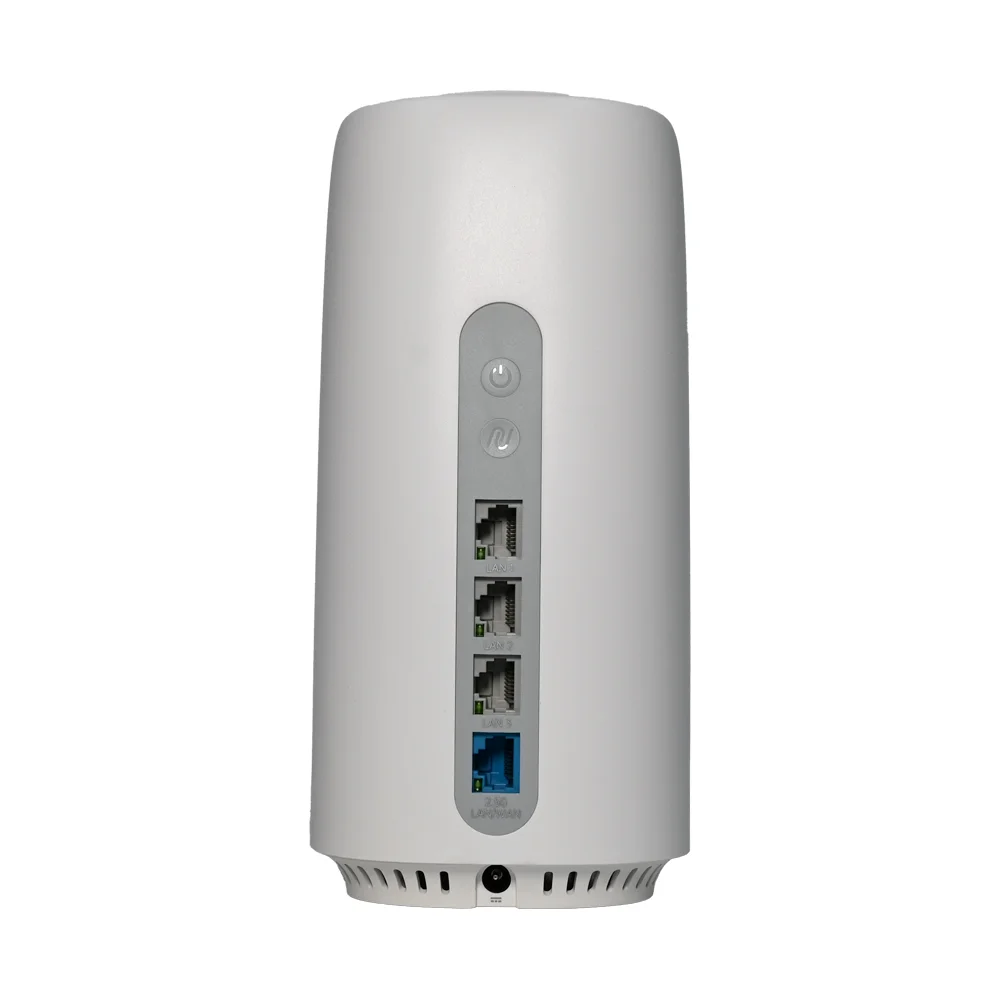

High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router
High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router

High-performance Globally Compatible Dual-network Backup Efficient Heat Dissipation Quiet Mobile Router

Get a Quote Contact Us
  • Description
product high performance globally compatible dual network backup efficient heat dissipation quiet mobile router-1

[email protected]
Inquiry
Product Description
product high performance globally compatible dual network backup efficient heat dissipation quiet mobile router-2
product high performance globally compatible dual network backup efficient heat dissipation quiet mobile router-3
product high performance globally compatible dual network backup efficient heat dissipation quiet mobile router-4

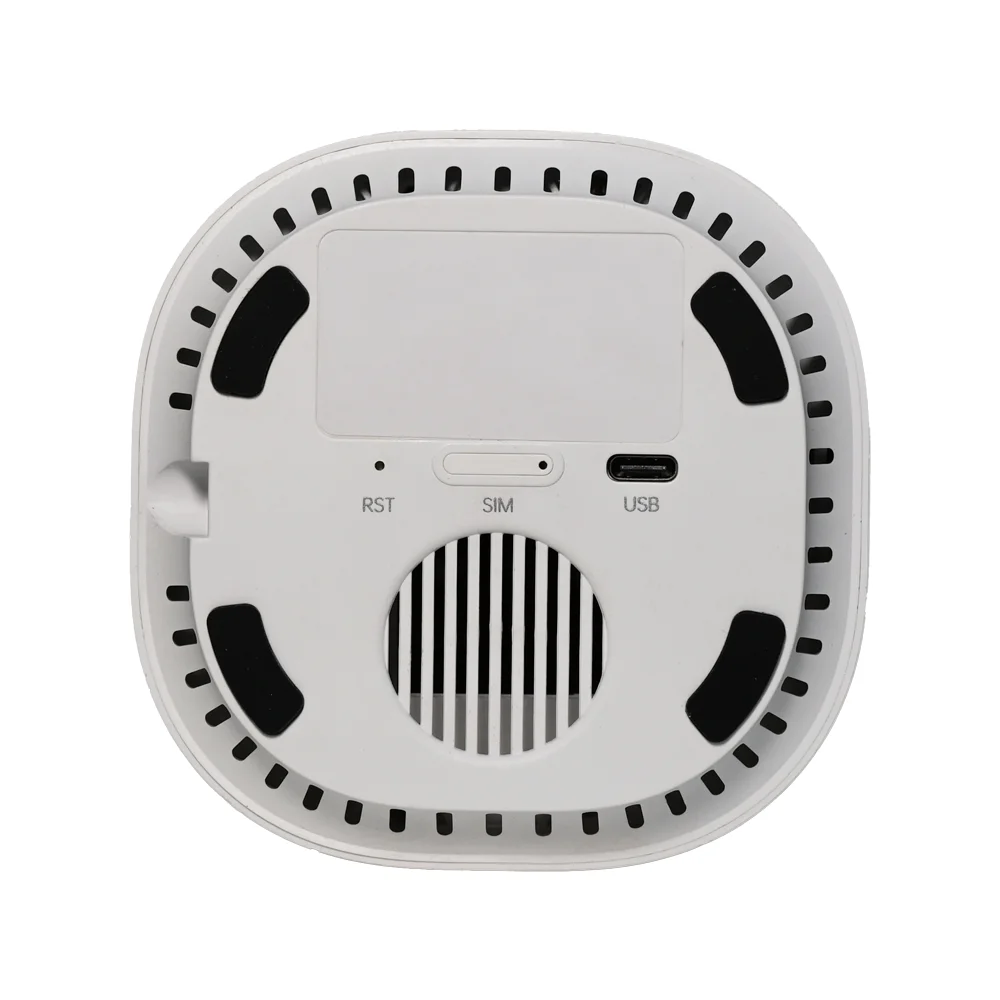

product high performance globally compatible dual network backup efficient heat dissipation quiet mobile router-5
Product Detail
Hardware
CPU
1.3GHz Dual-core MT7981B
RAM
DDR4 1GB
Flash
eMMC 8GB
Ethernet
One(1) 2.5Gbps WAN Ethernet Port
Three(3) 1Gbps LAN Ethernet Ports
Wireless Technology
802.11b/g/n 300Mbps MIMO Technology
Interfaces
One(1) Power Adapter Port
One(1) Nano SIM Slot
Buttons
One(1) WPS Button
One(1) Power Button
One(1) Reset Button
LED Indicators
One(1) System indicator
One(1) 5G indicator
One(1) 4G indicator
One(1) WiFi indicator
Antennas
Built-in 5G/LTE primary antenna
Built-in 5G/LTE secondary antenna
Built-in Wi-Fi 2.4GHz/5GHz antennas
Operating Environment
0~40°C, 10%～90% non-condensing
Storage Environment
-40~70°C, 5%～95% non-condensing
Physical Size
100*100*200 mm
Weight
750g
Power Supply
12V/2A
Wi-Fi
Standards
2.4GHz
IEEE 802.11b/g/n/ax
5GHz
IEEE 802.11a/n/ac/ax
Supported Rates
802.11b
1/2/5.5/11Mbps
802.11a/g
6/9/12/18/24/36/48/54Mbps
802.11n
MCS0~7
802.11ac
MCS0~11
802.11ax
MCS0~11
2.4GHz
Peak PHY Rates
574Mbps
Channels
Ch1~13
Spatial Streams
2T2R
Channelization
20/40/80MHz
Client Capacity
256
5GHz
Peak PHY Rates
2402Mbps
Channels
Ch36~64, 100-144, 149~165
Spatial Streams
2T3R
Channelization
20/40/80/160MHz
Client Capacity
256
Celluar
Module
Model
RM520-GL
Area
Global
Chipset
Qualcomm Snapdragon SDX62
5G NR
5G NR
3GPP Release 16 NSA/SA operation, Sub-6 GHz
Sub-6 NSA Band
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/39/30/38/40/41/48/66/70/71/75/76/77/78/79
Sub-6 SA Band
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/39/30/38/40/41/48/66/70/71/75/76/77/78/79
Max. Sub-6 BW
120MHz
Sub-6 CA
FDD+FDD,TDD+TDD,FDD+TDD DL2CA/UL 2CA
DL 4x4 MIMO
n1/2/3/5/7/25/30/38/40/48/66/70/77/78/79
UL 2x2 MIMO
n38/41/48/77/78/79
LTE
LTE Category
DL Cat19 / UL Cat18
LTE-FDD Band
B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
LTE-TDD Band
B34/38/39/40/41/42/43/48
LTE LAA Band
B46
DL 4x4 MIMO
B1/2/3/4/7/25/30/38/40/41/42/43/48/66
UMTS
WCDMA Band
B1/2/4/5/8/19
Max. PHY Rates
5G SA Sub-6 Max.
DL 2.4 Gbps; UL 900 Mbps
5G NSA Sub-6 Max.
DL 3.4 Gbps; UL 550 Mbps
LTE Max.
DL 1.6 Gbps; UL 200 Mbps
WCDMA Max.
DL 42 Mbps; UL 5.76 Mbps
