Description

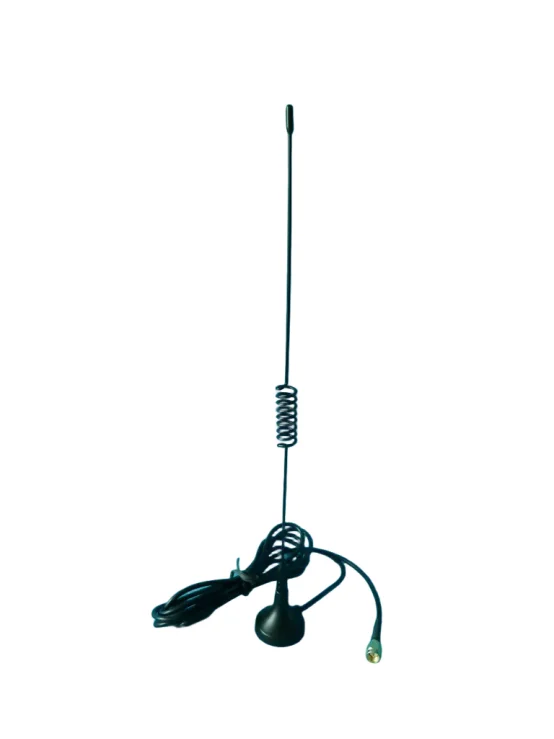

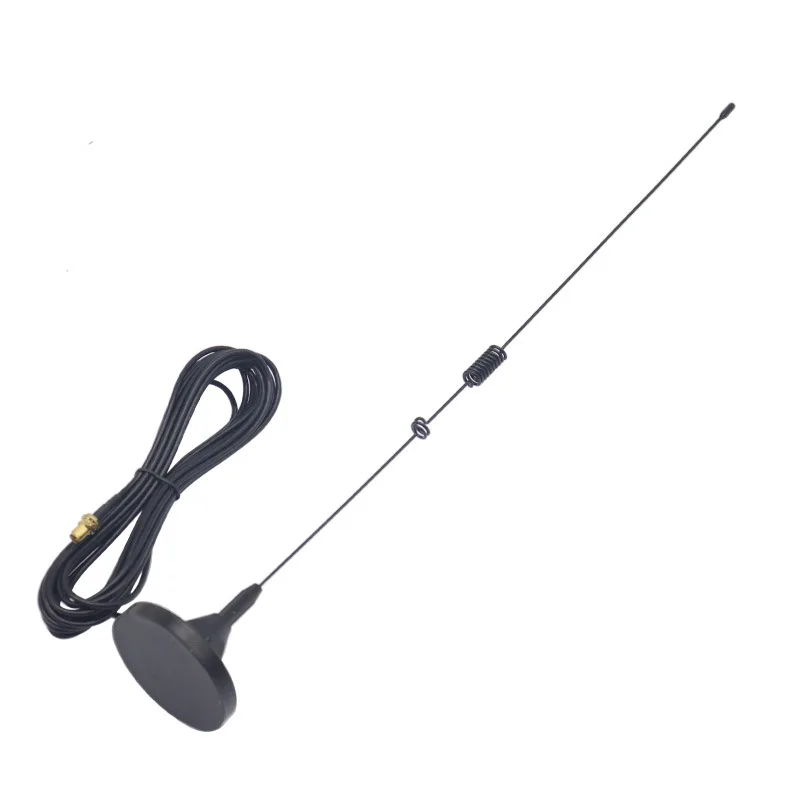

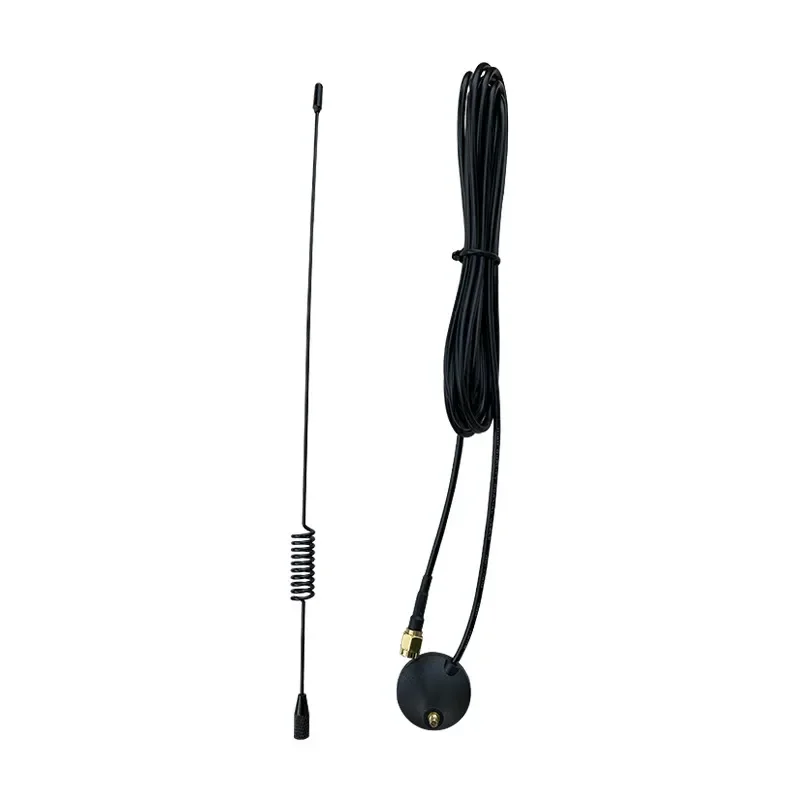

Product Description

1. Superior Signal Efficiency with Low VSWR
Features an excellent voltage standing wave ratio of <1.5, ensuring maximum power transfer and clean signal quality with minimal loss.

2. Compact and Lightweight Design
With only 20cm height and 120g weight, this antenna offers minimal visual impact and vehicle load while maintaining reliable performance.

3. True 360° Omnidirectional Coverage
Provides consistent all-around horizontal coverage, ensuring reliable communication regardless of vehicle direction or position.

4. Wide Frequency Range Support
Covers 400-480MHz band, making it compatible with various professional mobile radio systems and applications.

5. Rugged Construction for Vehicle Use
Built to withstand harsh environmental conditions with an operating temperature range of -40°C to +60°C, ensuring reliable performance in all weather conditions.

Product Detail

Electrical Indicators
Model	YW - 60VPG3 - 400
Frequency Range - MHz	400 ~ 480
Bandwidth - MHz	16
Polarization Mode	Vertical
Voltage Standing Wave Ratio	< 1.5
Gain - dBi	3.2
Horizontal Half - Power Beamwidth (°)	360
Vertical Half - Power Beamwidth (°)	60
Maximum Power - W	100
Input Impedance - Ω	50
Lightning Protection	DC Grounding
Mechanical Indicators
Connector Type (Cable End)	N - K
Operating Temperature - ℃	- 40 ~ +60
Cable Specification	SYV - 50 - 3
Cable Length - m	3
Antenna Height - CM	20 (slightly changes with frequency)
Antenna Weight - (g)	120 (slightly changes with frequency)

Application Scenarios

* Professional mobile radio systems for public safety vehicles

* Fleet management and logistics communication networks

* Industrial and utility vehicle radio systems

* Taxi and transportation company communication setups

* Emergency and field service vehicle communications
