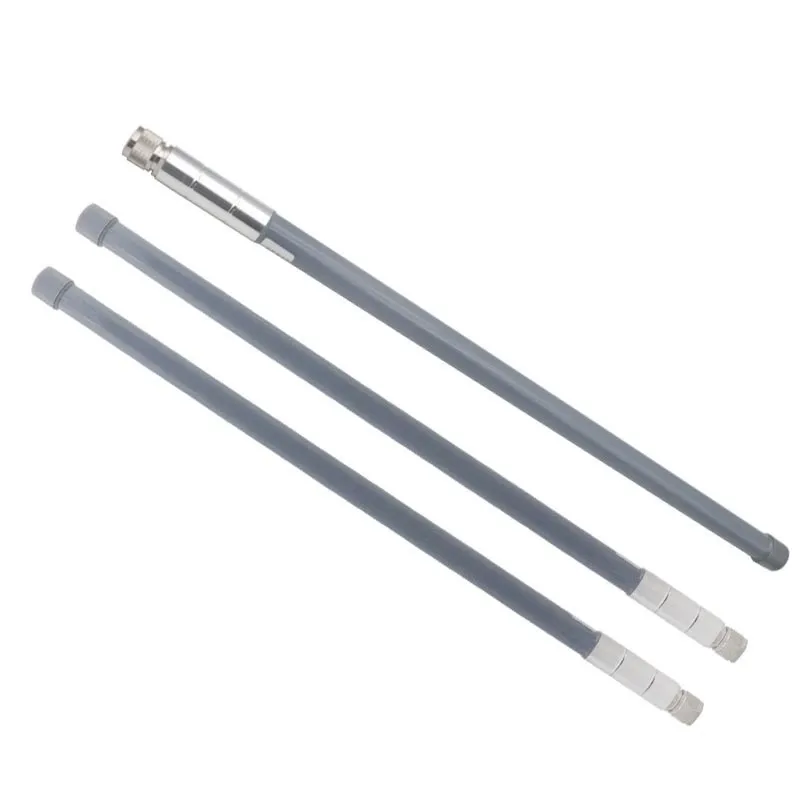

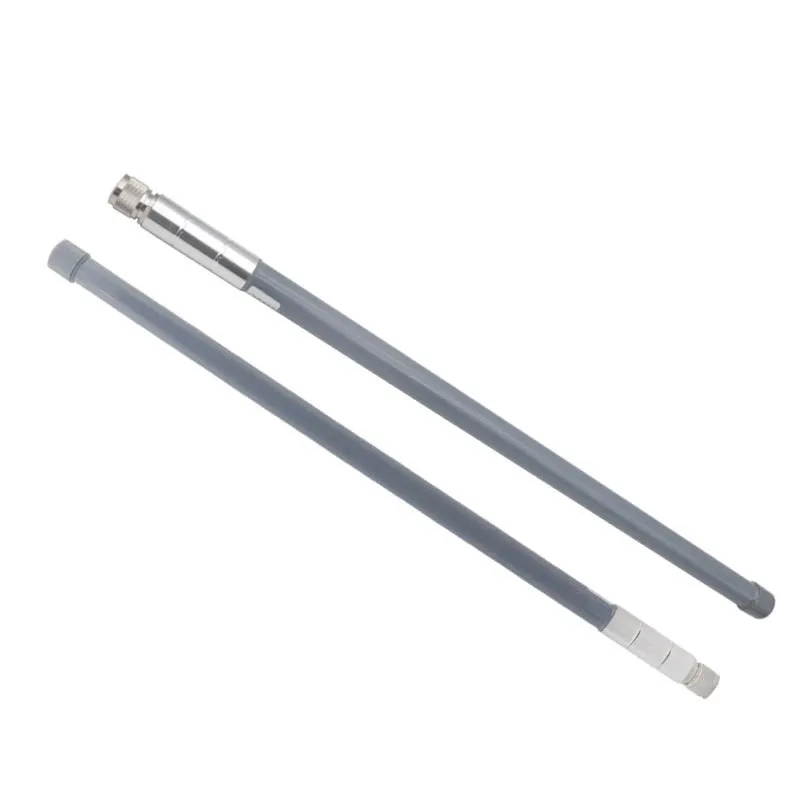

N-Female Connector with Spring Base 0.6m Marine Fiberglass Whip Antenna for Vessel Communication IoT Systems

N-Female Connector with Spring Base 0.6m Marine Fiberglass Whip Antenna for Vessel Communication IoT Systems

Description

[email protected]

Description

Product Description

1. Robust Spring Base Design
Features a built-in spring base that provides excellent vibration resistance and durability in demanding marine environments.

2. High-Performance Fiberglass Construction
Made with quality fiberglass material offering superior weather resistance and corrosion protection for long-term outdoor use.

3. Optimized for Marine Communication
Specifically designed for 902-928MHz band, making it ideal for marine communication systems and offshore applications.

4. True 360° Omnidirectional Coverage
Provides consistent all-around signal reception with vertical polarization, ensuring reliable communication regardless of vessel orientation.

5. Easy Installation with Standard Connector
Equipped with N-Female connector and ready-to-use 0.6m length, enabling quick deployment and compatibility with marine radio equipment.

Product Detail

Frequency Range - MHz	902 - 928
Bandwidth	26
Gain - dBi	> 3 dBi
Horizontal Beamwidth - °	360
Vertical Beamwidth - °	> 20
Voltage Standing Wave Ratio	≤1.8
Polarization Mode	Vertical
Nominal Impedance - Ω	50
Maximum Power - W	100
Length - m	0.6 m
Weight - kg	< 1.0
Wind Resistance - m/s	60
Connector Model	N - Female
Others	Female connector with spring, total length 60 cm

Recommend Products

Company Profile

product n female connector with spring base 06m marine fiberglass whip antenna for vessel communication iot systems-2

product n female connector with spring base 06m marine fiberglass whip antenna for vessel communication iot systems-3

product n female connector with spring base 06m marine fiberglass whip antenna for vessel communication iot systems-4

product n female connector with spring base 06m marine fiberglass whip antenna for vessel communication iot systems-5

product n female connector with spring base 06m marine fiberglass whip antenna for vessel communication iot systems-6

product n female connector with spring base 06m marine fiberglass whip antenna for vessel communication iot systems-7

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
