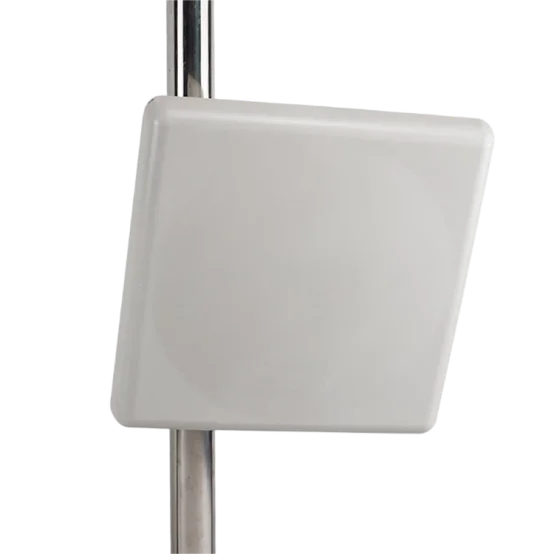

Electrical Indicators |
DFC58-20VH20BC |
|
Frequency Range (MHz) |
5150～5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
20 |
|
Electrical Downtilt (°) |
0 |
|
Half Power Beamwidth (°) |
Horizontal: 20 |
|
Vertical: 12 |
||
Port Isolation (dB) |
≥25 |
|
Front-to-Back Ratio (dB) |
≥28 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio |
≤2 |
|
Maximum Power (W) |
20 |
|
Lightning Protection |
DC Ground |
|
Mechanical and Environmental Indicators |
Mechanical and Environmental Indicators |
|
Connector Type |
2×MMCX Elbow or User Specified |
|
Lead Length |
20cm or User Specified |
|
Antenna Size (Length×Width×Thickness: mm) |
306×306×25 |
|
Cavity Size (Length×Width×Thickness: mm) |
180×180×31 (Inner) |
|
Cavity Interface |
2×N Type Extension Ports + 1×PG16 |
|
Antenna Weight (kg) |
Approx. 2.6 |
|
Radome Material |
ABS |
|
Radome Color |
White |
|
Cavity Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0～60 |
|
Operating Temperature (℃) |
-40～60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Boom Diameter (mm) |
35～50 |
|
Mounting Part Model |
MK004 L-shaped Steel Clamp |
|
Electrical Indicators |
DFC58-11V23BC |
|
Frequency Range (MHz) |
5150～5850 |
|
Polarization |
Vertical |
|
Gain (dBi) |
23 |
|
Electrical Downtilt (°) |
0 |
|
Half Power Beamwidth (°) |
Horizontal: 11 |
|
Vertical: 11 |
||
Front-to-Back Ratio (dB) |
≥28 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio |
≤1.7 |
|
Maximum Power (W) |
20 |
|
Lightning Protection |
DC Ground |
|
Mechanical and Environmental Indicators |
||
Connector Type |
MMCX Elbow or User Specified |
|
Lead Length |
20cm or User Specified |
|
Antenna Size (Length×Width×Thickness: mm) |
306×306×25 |
|
Cavity Size (Length×Width×Thickness: mm) |
180×180×31 (Inner) |
|
Cavity Interface |
2×N Type Extension Ports + 1×PG16 |
|
Antenna Weight (kg) |
Approx. 2.6 |
|
Radome Material |
ABS |
|
Radome Color |
White |
|
Cavity Color |
Gray |
|
Mechanical Adjustable Tilt (°) |
0～60 |
|
Operating Temperature (℃) |
-40～60 |
|
Ultimate Wind Speed (m/s) |
60 |
|
Boom Diameter (mm) |
35～50 |
|
Mounting Part Model |
MK004 L-shaped Steel Clamp |
|
Electrical Indicators |
DFC58-11VH23BC |
|||
Frequency Range (MHz) |
4900～6300 |
5150～5850 |
||
Polarization |
Vertical/Horizontal |
|||
Gain (dBi) |
23 |
|||
Electrical Downtilt (°) |
0 |
|||
Half Power Beamwidth (°) |
Horizontal: 11 |
|||
Vertical: 11 |
||||
Port Isolation (dB) |
≥20 |
|||
Front-to-Back Ratio (dB) |
≥28 |
|||
Input Impedance (Ω) |
50 |
|||
Voltage Standing Wave Ratio |
≤2 |
|||
Maximum Power (W) |
20 |
|||
Lightning Protection |
DC Ground |
|||
Mechanical and Environmental Indicators |
||||
Connector Type |
2×MMCX Elbow or User Specified |
|||
Lead Length |
20cm or User Specified |
|||
Antenna Size (Length×Width×Thickness: mm) |
306×306×25 |
|||
Cavity Size (Length×Width×Thickness: mm) |
180×180×31 (Inner) |
|||
Cavity Interface |
2×N Type Extension Ports + 1×PG16 |
|||
Antenna Weight (kg) |
Approx. 2.6 |
|||
Radome Material |
ABS |
|||
Radome Color |
White |
|||
Cavity Color |
Gray |
|||
Mechanical Adjustable Tilt (°) |
0～60 |
|||
Operating Temperature (℃) |
-40～60 |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Boom Diameter (mm) |
35～50 |
|||
Mounting Part Model |
MK004 L-shaped Steel Clamp |
|||
