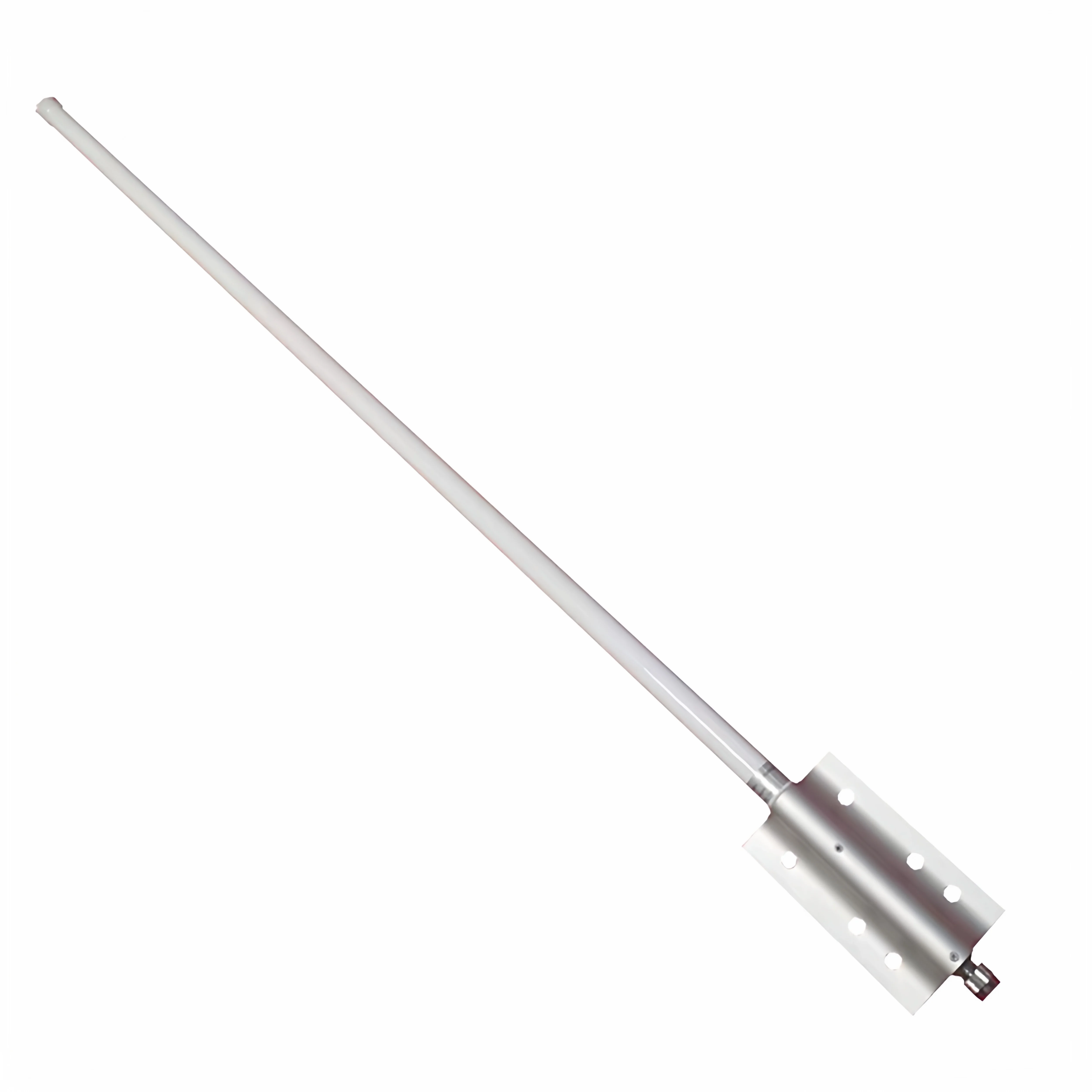

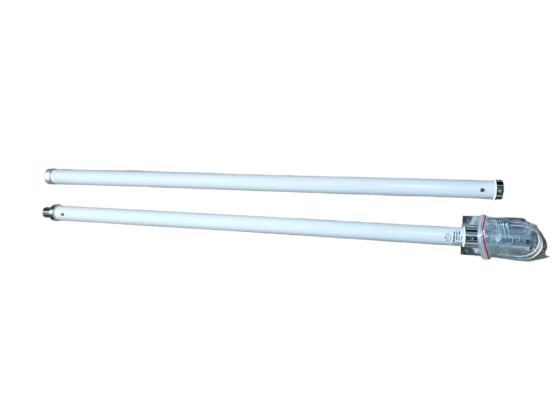

Home > Products > Wireless Communication > Antennas > Fiberglass Antenna
Electrical Specifications |
||
Frequency (MHz) |
356-368 |
|
Polarization |
Vertical |
|
Gain (dBi) |
≥8 |
|
Voltage Standing Wave Ratio (VSWR) |
≤1.5 |
|
Horizontal 3dB Beamwidth |
360° |
|
Vertical 3dB Beamwidth |
≥15° |
|
Maximum Input Power (W) |
100 |
|
Input Impedance (Ω) |
50 |
|
Lightning Protection |
DC |
|
Mechanical Specifications |
||
Connector Type |
N-K |
|
Antenna Dimensions (mm) |
≤Φ38×3200 (See schematic diagram for details) |
|
Antenna Weight (kg) |
≤6 |
|
Maximum Wind Speed (m/s) |
50 |
|
Radome Material |
Fiberglass Reinforced Plastic (FRP) |
|
Radome Color |
Pantone 425C |
|
Installation Method |
Hoop Fixing |
|
Packaging Method |
Single Antenna in Carton |
|
Environmental Specifications |
||
Operating Temperature (℃) |
-40~+60 |
|
Storage Temperature (℃) |
-45~+70 |
|
Vibration |
GJB367A-2001 3.10.3.1 |
|
Salt Spray |
GJB367A-2001 3.10.2.14 |
|
Damp Heat |
GJB367A-2001 3.10.2.5 |
|
Rain Test |
GJB367A-2001 3.10.2.7 |
|
Atmospheric Pressure |
GJB367A-2001 3.10.2.3 |
|
